Name: P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB
Brand: SOCAY
SKU: P0720SC
Rating: 4.9 (171 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Component: Thyristor Surge Suppressors

Footprint: DO-214AA/SMB

VDRM (Min.): 6V

IDRM: 5μA

Vs @100V/μS (Max.): 88V

Is (Max.): 800mA

Vt @It=2.2A (Max.): 4V

It (Max.): 2.2A

Ih (Min.): 50mA

C0 @1MHz,2V Bias (Typ.): 100pF

Highlight:

P0720SC Thyristor Surge Suppressors

Thyristor Surge Suppressors 500A

Thyristor SMD 65V

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: P0720SC

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: AMMO packing bulk

Delivery Time: 5-8 work days

Gallery

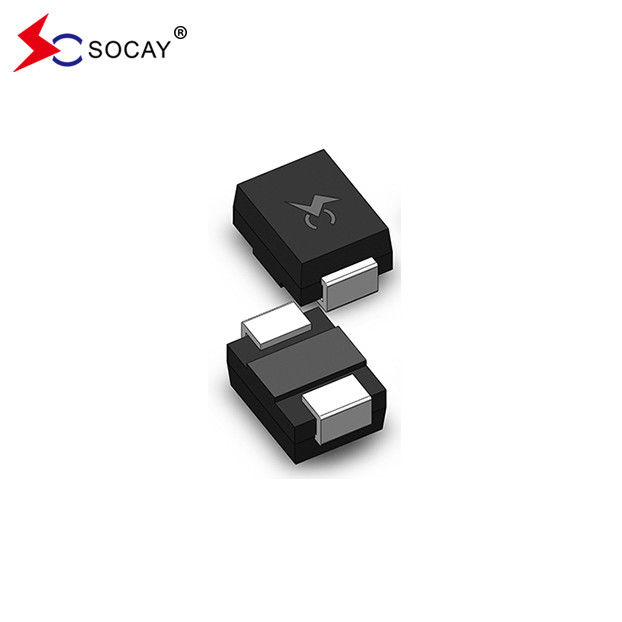

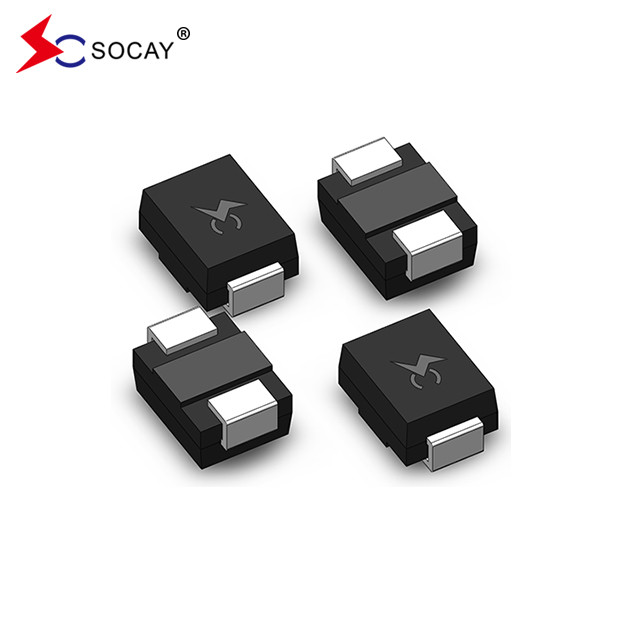

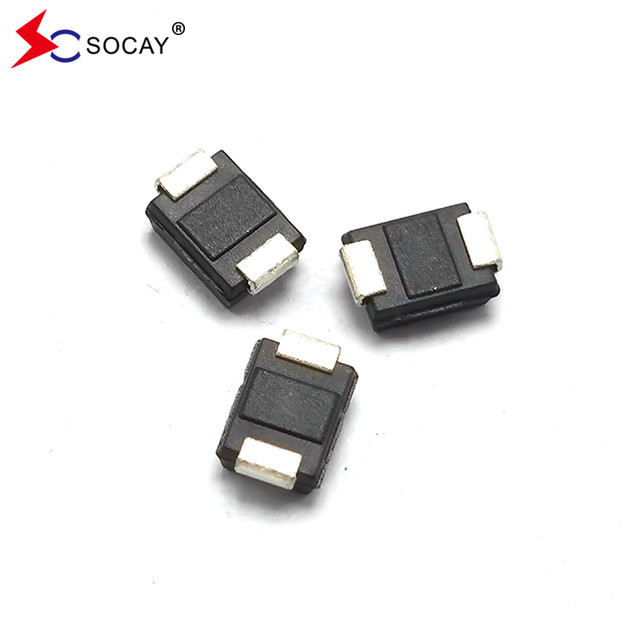

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB

Product Description

SOCAY P0720SC Thyristor Surge Protection Devices 500A 65V SMD Thyristor

DATASHEET: PXXX0SC_v2103.1.pdf

Part Number	Marking	V_DRM@I_DRM=5μA	VS ① @100V/μS	V_T @I_T=2.2A	I_S	I_T	I_H	C_O② @1MHz, 2V bias
		V min	V max	V max	mA max	A max	mA min	pF typ
P0080SC	P008C	6	25	4	800	2.2	50	100
P0300SC	P03C	25	40	4	800	2.2	50	100
P0640SC	P06C	58	77	4	800	2.2	150	100
P0720SC	P07C	65	88	4	800	2.2	150	100
P0900SC	P09C	75	98	4	800	2.2	150	90
P1100SC	P11C	90	130	4	800	2.2	150	90
P1300SC	P13C	120	160	4	800	2.2	150	90
P1500SC	P15C	140	180	4	800	2.2	150	85
P1800SC	P18C	170	220	4	800	2.2	150	85
P2300SC	P23C	190	260	4	800	2.2	150	80
P2600SC	P26C	220	300	4	800	2.2	150	80
P3100SC	P31C	275	350	4	800	2.2	150	65
P3500SC	P35C	320	400	4	800	2.2	150	60
P4200SC	P42C	400	520	4	800	2.2	150	55
Notes: ① Vs is measured at 100KV/s. ② Off-state capacitance is measured in V_DC=2V, V_RMS=1V, f=1MHz.

P0720SC Thyristor Surge Suppressors SMD 500A 65V 100pF DO-214AA SMB 0

Description: Tss components to protection important equipment PCB Circuit Board

Selection Metbod.

1,To know the customer's product, operating voltage, application port, protection level.

2,Break-state voltage > DC working voltage on the circuit.

3,Select the capacitance value and flow rate of the device according to the application port and protection level.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance

Applicable Global Standards:

Communication lightning protection, 485, 232 protection solutions, ADSL, Security products, Telephones, Video circuits, Audio circuits.

Series	2/10μS¹	8/20μS¹		10/160μS¹	10/560μS¹	10/1000μS¹	5/310μS¹	I_TSM 50/60 Hz	di/dt
	2/10μS²	1.2/50μS²		10/160μS²	10/560μS²	10/1000μS²	10/700μS²
	A min	A min		A min	A min	A min	A min	A min	Amps/µs max
C	500	400		200	150	100	150	50	500
Notes: Current waveform in µs Voltage waveform in µs			- Peak pulse current rating (I_PP) is repetitive and guaranteed for the life of the product. - I_PP ratings applicable over temperature range of -40ºC to +85ºC - The device must initially be in thermal equilibrium with -40°C < T_J < +150°C

Part Number	Component Package	Quantity	Packaging Option	Packaging Specification
Pxxx0SC	DO-214AA	2500	Tape & Reel -12mm/13″tape	EIA -481 - D
