Name: TSS VF 3V High Voltage Ringing SLIC Protector TISP61089B SOCAY SOP-8L Package
Brand: SOCAY
SKU: TISP61089B
Rating: 4.7 (114 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Thyristor Surge Suppressors (TSS)

Package Type: SOP-8L

VF: 3V

VFRM: 10V

C: 110pF

Highlight:

TSS SLIC Protector

3V SLIC Protector

TISP61089B

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: TISP61089B

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: AMMO packing bulk

Delivery Time: 5-8 work days

Gallery

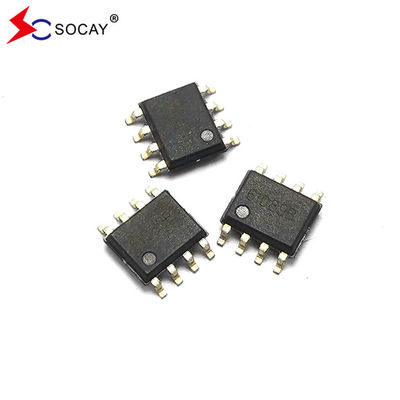

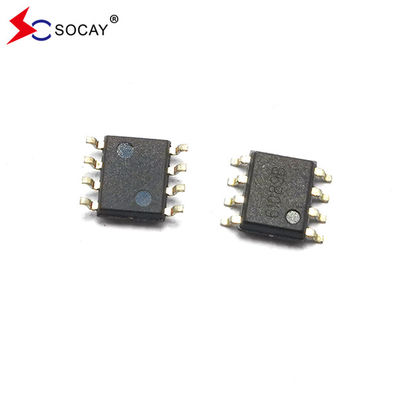

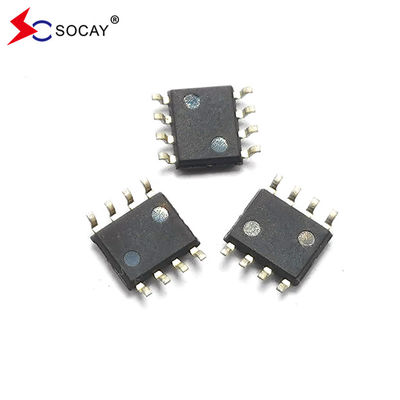

TSS VF 3V High Voltage Ringing SLIC Protector TISP61089B SOCAY SOP-8L Package

Product Description

SOCAY SOP-8L Package High Voltage Ringing SLIC Protector TISP61089B Thyristor Surge Suppressors (TSS) VF 3V

DATASHEET: TISP61089B_v2108.1.pdf

Parameter		Symbol	Value	Unit
Non-repetitive peak on-state pulse current	10/1000μs	I_PPSM	30	A
	(Telcordia (Bellcore) GR-1089-CORE, Issue 3)
	5/310μs		40
	(ITU-T K.20, K.21& K.45, K.44 open-circuit voltage wave shape 10/700 µs)
	2/10μs		120
	(Telcordia (Bellcore) GR-1089-CORE, Issue 3)
Non repetitive peak on-state current (sinusoidal) 60Hz	0.1s	I_TSM	6.5	A
	1s		4.5
	5s		2.4
	30s		1.3
	900s		0.72
Repetitive peak off-state voltage, V_GK=0		V_DRM	-170	V
Repetitive peak gate-cathode voltage, V_KA=0		V_GKRM	-167	V
Operating free-air temperature range		T_A	-40~+85	℃
Storage temperature range		T_STG	-40~+150	℃
Junction temperature		T_J	-40~+150	℃
Maximum lead temperature for soldering during 10s		T_L	260	℃
Junction to free air thermal resistance		R_BJA	120	℃/W

Parameter	Symbol	Test Conditions	Min.	Typ.	Max.	Unit
Forward Voltage	V_F	I_F = 5A, t_W = 200μs	--	--	3	V
Impulse peak forward recovery voltage	V_FRM	2/10μs, I_F = 100A, R_S = 50Ω, di/dt = 80A/μs	--	--	10	V
Off-state Current	I_D	V_D = -170V, V_GK = 0, T_J = 25℃	--	--	-5	μA
Off-state Current	I_D	V_D = -170V, V_GK = 0, T_J = 85℃	--	--	-5	μA
Impulse breakover voltage	V_(BO)	2/10μs, I_TM = 100A, R_S = 50Ω	--	--	-112	V
Impulse breakover voltage	V_(BO)	di/dt = -80A/μs, V_GG = -100V	--	--	-112	V
Holding current	I_H	I_T = -1A, di/dt = 1A/ms, V_GG = -100V	-150	--	--	mA
Gate reverse current	I_GAS	V_GG = V_GK = -167V, V_KA = 0, T_J = 25℃	--	--	-5	μA
Gate reverse current	I_GAS	V_GG = V_GK = -167V, V_KA = 0, T_J = 85℃	--	--	-5	μA
Gate trigger current	I_GT	I_T = 3A, tp(g) ≥ 20μs, V_GG = -100V	--	--	5	mA
Gate trigger voltage	V_GT	I_T = 3A, tp(g) ≥ 20μs, V_GG = -100V	--	--	2.5	V
Anode-cathode off-state capacitance	C_KA	f = 1MHz,V_D = 1V, I_G = 0, V_D = -3V	--	--	110	pF
Anode-cathode off-state capacitance	C_KA	f = 1MHz,V_D = 1V, I_G = 0, V_D = -48V	--	--	55	pF

Description:

This device is especially designed to protect Subscriber Line Interface Circuit (SLIC) against transient overvoltage. Positive overloads are clipped with 2 diodes. Negative surges are suppressed by 2 Thyristors, their breakdown voltage being referenced to VBAT through the gate. This component presents a very low gate triggering current and minimizes overvoltage stress on the SLIC.

Features:

Dual line programmable transient voltage suppressor.
Wide battery voltage supports.
Low gate triggering current.
High holding current.
ESD Immunity(HBM): JESD22 Class 3B, ≥8KV.
MLS: Lever 1.

Applications:

Switch Line Card
Access Network Line Card
PBX
VoIP

Device	Package	Shipping
TISP61089B	SOP-8L	3000 PCS/Reel&Tape
