Name: DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V
Brand: SOCAY
SKU: P0080SB
Rating: 4.6 (174 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Description: Thyristor Surge Suppressors (TSS)

Package Type: DO-214AA/SMB

VDRM (Min.): 6V

IDRM: 5μA

Vs @100V/μS (Max.): 25V

Is (Max.): 800mA

Vt @It=2.2A (Max.): 4V

It (Max.): 2.2A

Ih (Min.): 50mA

C0 @1MHz,2V Bias (Typ.): 80pF

Highlight:

SMB Thyristor Surge Suppressors

DO-214AA Thyristor Surge Suppressors

P0080SB

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: P0080SB

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: AMMO packing bulk

Delivery Time: 5-8 work days

Gallery

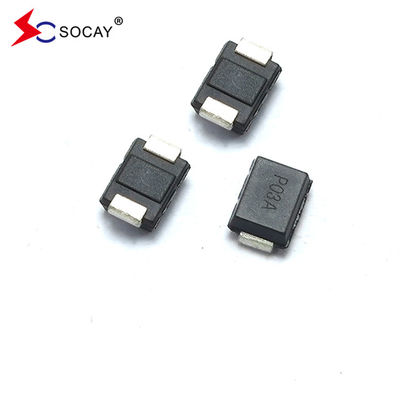

DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V

Product Description

(TSS) P0080SB DO-214AA (SMB) Package Thyristor Surge Suppressors VDRM 6V VS 25V Marking P008B

DATASHEET: PXXX0SB_v2103.1.pdf

Part Number	Marking	V_DRM@I_DRM=5μA	VS ① @100V/μS	V_T @I_T=2.2A	I_S	I_T	I_H	C0 ② @1MHz, 2V bias
		V min	V max	V max	mA max	A max	mA min	pF typ
P0080SB	P008B	6	25	4	800	2.2	50	80
P0300SB	P03B	25	40	4	800	2.2	50	80
P0640SB	P06B	58	77	4	800	2.2	150	80
P0720SB	P07B	65	88	4	800	2.2	150	75
P0900SB	P09B	75	98	4	800	2.2	150	70
P1100SB	P11B	90	130	4	800	2.2	150	70
P1300SB	P13B	120	160	4	800	2.2	150	65
P1500SB	P15B	140	180	4	800	2.2	150	65
P1800SB	P18B	170	220	4	800	2.2	150	65
P2300SB	P23B	190	260	4	800	2.2	150	60
P2600SB	P26B	220	300	4	800	2.2	150	60
P3100SB	P31B	275	350	4	800	2.2	150	50
P3500SB	P35B	320	400	4	800	2.2	150	50
P4200SB	P42B	400	520	4	800	2.2	150	40
Notes: ① Vs is measured at 100KV/s. ② Off-state capacitance is measured in V_DC=2V, V_RMS=1V, f=1MHz.

About TSS

The TSS are characterised by precise conduction, fast response, high surge absorption capacity, biaxial symmetry and high reliability.

DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V 0

Description:

PXXX0SB Series are designed to protect broadband equipment such as modems, line card, CPE and DSL from damaging over-voltage transients.The series provides a surface mount solution that enables equipment to comply with global regulatory standards.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance

Parameter	Definition
I_S	Switching Current - maximum current required to switch to on state
I_DRM	Leakage Current - maximum peak off-state current measured at V_DRM
I_H	Holding Current - minimum current required to maintain on state
I_T	On-state Current - maximum rated continuous on-state current
V_S	Switching Voltage - maximum voltage prior to switching to on stat
V_DRM	Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
V_T	On-state Voltage - maximum voltage measured at rated on-state current
C₀	Off-state Capacitance - typical capacitance measured in off state

Series	2/10μS¹	8/20μS¹		10/160μS¹	10/560μS¹	10/1000μS¹	5/310μS¹	I_TSM 50/60 Hz	di/dt
	2/10μS²	1.2/50μS²		10/160μS²	10/560μS²	10/1000μS²	10/700μS²
	A min	A min		A min	A min	A min	A min	A min	Amps/µs max
B	250	250		150	100	80	100	30	500
Notes: Current waveform in µs Voltage waveform in µs			- Peak pulse current rating (I_PP) is repetitive and guaranteed for the life of the product. - I_PP ratings applicable over temperature range of -40ºC to +85ºC - The device must initially be in thermal equilibrium with -40°C < T_J < +150°C

High Temp Voltage Blocking	80% Rated VDRM (VAC Peak ) +125°C or +150°C, Lead Material Copper Alloy High Temp Voltage Blocking 504 or 1008 hrs. MIL-STD-750 (Method 1040) JEDEC, JESD22-A-101

Temp Cycling	-65°C to +150°C, 15 min. dwell, 10 up to 100 cycles. MIL-STD-750 (Method 1051) EIA/JEDEC, JESD22-A104

Biased Temp & Humidity	52 VDC (+85°C) 85%RH, 504 up to 1008 hrs. EIA/ JEDEC, JESD22-A-101
High Temp Storage	+150°C 1008 hrs. MIL-STD-750 (Method 1031) JEDEC, JESD22-A-101
Low Temp Storage	-65°C, 1008 hrs.
Thermal Shock	0°C to +100°C, 5 min. dwell, 10 sec. transfer, Thermal Shock 10 cycles. MIL-STD-750 (Method 1056) JEDEC, JESD22-A-106
Autoclave (Pressure Cooker Test)	+121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/Cooker Test) JEDEC, JESD22-A-102
Resistance to Solder Heat	+260°C, 30 secs. MIL-STD-750 (Method 2031
Moisture Sensitivity Level	85%RH, +85°C, 168 hrs., 3 reflow cycles Level (+260°C Peak). JEDEC-J-STD-020, Level 1

Lead Material	Copper Alloy
Terminal Finish	100% Matte-Tin Plated
Body Material	UL recognized epoxy meeting flammability classification 94V-0

Part Number	Component Package	Quantity	Packaging Option	Packaging Specification
Pxxx0SB	DO-214AA	2500	Tape & Reel -12mm/13″tape	EIA -481 - D

DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V 1

DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V 2

DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V 3

DO-214AA SMB Package Thyristor Surge Suppressors TSS P0080SB VDRM 6V VS 25V 4

Selection of semiconductor discharge tubes:

When selecting TSS, the following principles should generally be followed:

1. Selection of cut-off voltage VDRM: The cut-off voltage must be greater than the maximum operating voltage of the protected circuit;

2. Selection of transition voltage VBO: The transition voltage must be less than the maximum transient peak voltage that the equipment can withstand;

3. Selection of the holding current IH: the holding current must be greater than the operating current and short-circuit current of the equipment;

4. Selection of parasitic capacitance C: The parasitic capacitance is selected according to the insertion loss allowed by the circuit or the frequency of signal transmission;

5. Selection of surge current: Different levels of surge current are selected according to the requirements of the circuit or surge test standards.
