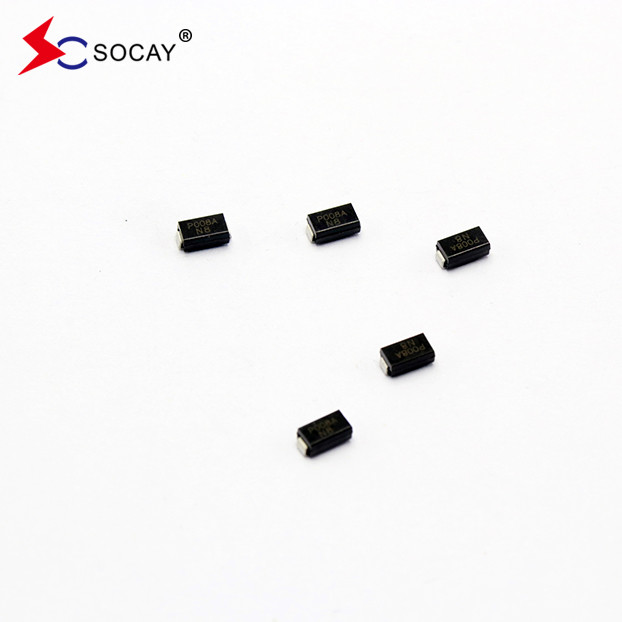

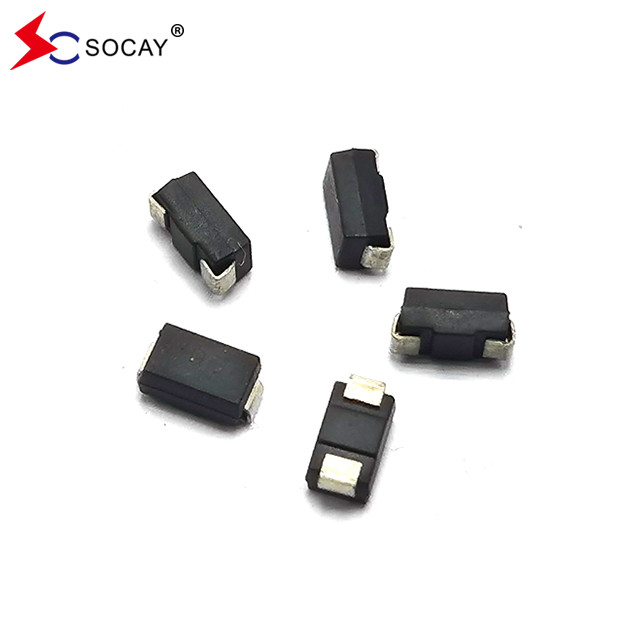

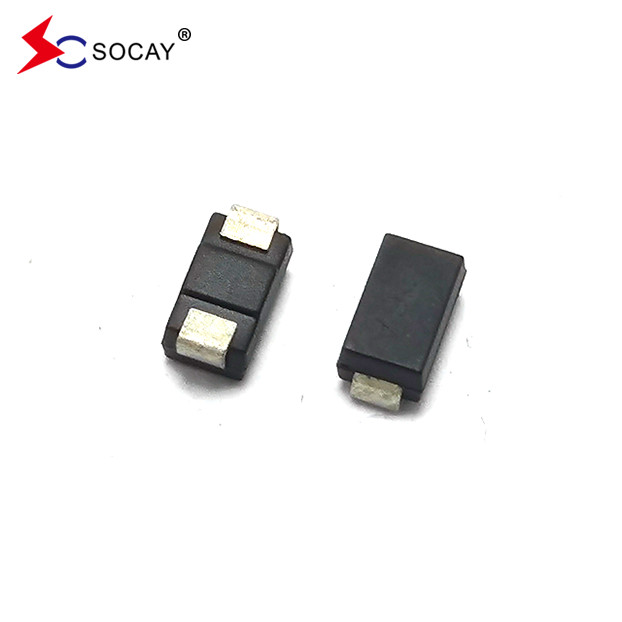

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA

5000PCS
MOQ
Negotiable
Price
TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA
Features Gallery Product Description Request A Quote
Features
Specifications
Item: TSS DIODES
Package Type: DO-214AC/SMA
VDRM (Min.): 6V
IDRM: 5μA
Vs @100V/μS (Max.): 25V
Is (Max.): 800mA
Vt @It=2.2A (Max.): 4V
It (Max.): 2.2A
Ih (Min.): 50mA
C0 @1MHz,2V Bias (Typ.): 130pF
Highlight:

TSS Thyristor Surge Suppressors

,

Thyristor Surge Suppressors P0080TB

,

Semiconductor Component DO-214AC
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: REACH,RoHS,ISO
Model Number: P0080TB
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: AMMO packing bulk
Delivery Time: 5-8 work days
Product Description

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA



DATASHEET:  PXXX0TB_v2101.2.pdf





Part of datasheet as below



Part Number Marking



VDRM

@IDRM=5μA



VS ①

@100V/μS

 IS

VT

@IT=2.2A

IT IH

C0 ②

@1MHz, 2Vbias
    V Min. V Max. mA Max. V max. A max. mA min. pF typ.
P0080TB P008B 6 25 800 4 2.2 50 130
P0220TB P22B 15 30 800 4 2.2 50 120
P0300TB P03B 25 40 800 4 2.2 50 120
P0640TB P06B 58 77 800 4 2.2 120 80
P0720TB P07B 66 87 800 4 2.2 120 75
P0900TB P09B 75 98 800 4 2.2 120 70
P1100TB P11B 90 130 800 4 2.2 120 70
P1300TB P13B 120 160 800 4 2.2 120 60
P1500TB P15B 140 180 800 4 2.2 120 55
P1800TB P18B 170 220 800 4 2.2 120 50
P2300TB P23B 190 260 800 4 2.2 120 50
P2600TB P26B 220 300 800 4 2.2 120 45
P3100TB P31B 275 350 800 4 2.2 120 45
P3500TB P35B 320 400 800 4 2.2 150 40

Notes:

① VS is measured at 100KV/s;

② Off-state Capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.



TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA 0



Features:



l Surface mount design optimizes board space usage


l React quickly to rapidly rising transient voltages





Parameter Symbol Value Unit
Storage Temperature Range Tstg -60 to +150 ℃
Operating Junction Temperature Range Tj -40 to +150 ℃
Repetitive Peak Pulse Current IPP 80 A







Parameter Definition
IS Switching Current - maximum current required to switch to on state
IDRM Leakage Current - maximum peak off-state current measured at VDRM
IH Holding Current - minimum current required to maintain on state
IT On-state Current - maximum rated continuous on-state current
VS Switching Voltage - maximum voltage prior to switching to on stat
VDRM Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
VT On-state Voltage - maximum voltage measured at rated on-state current
C0 Off-state Capacitance - typical capacitance measured in off state



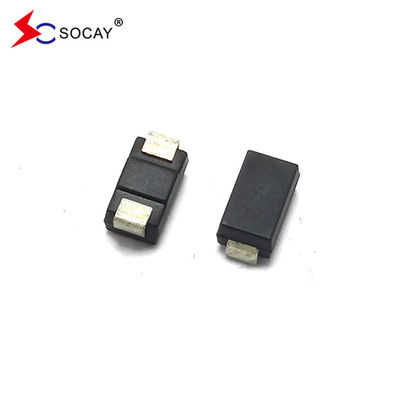

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA 1

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA 2

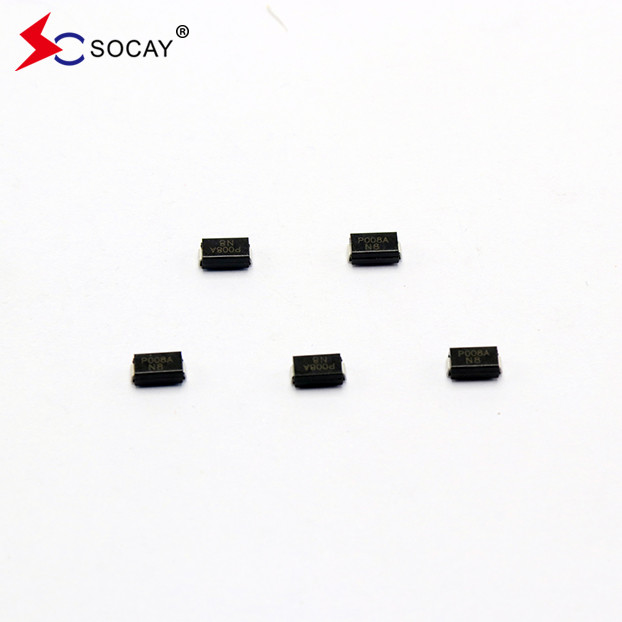

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA 3



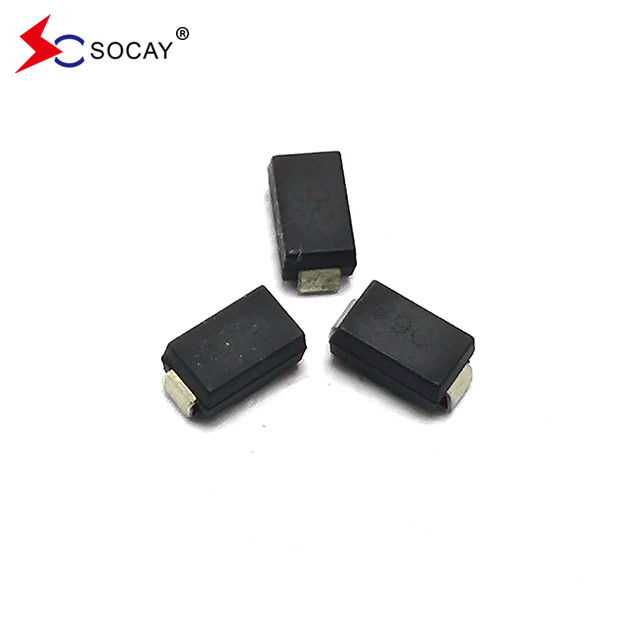

TSS Thyristor Surge Suppressors P0080TB Semiconductor Component DO-214AC SMA 4



Packing details



Outline Reel (pcs) Per Carton (pcs) Reel Diameters (mm)
Taping 5,000 80,000 330



Selection Method



1,To know the customer's product, operating voltage, application port, protection level.

2,Break-state voltage > DC working voltage on the circuit.

3,Select the capacitance value and flow rate of the device according to the application port and protection level.

Tag:

Thyristor Surge Protection Devices

Semiconductor Component

TSS Thyristor Surge Protector
