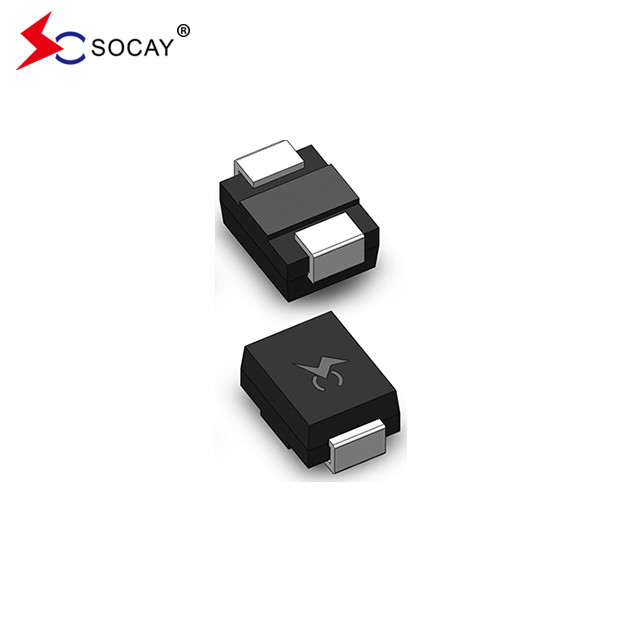

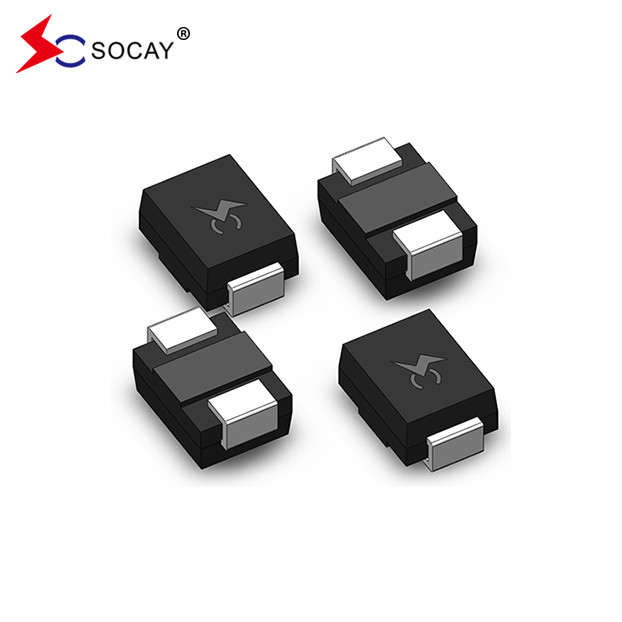

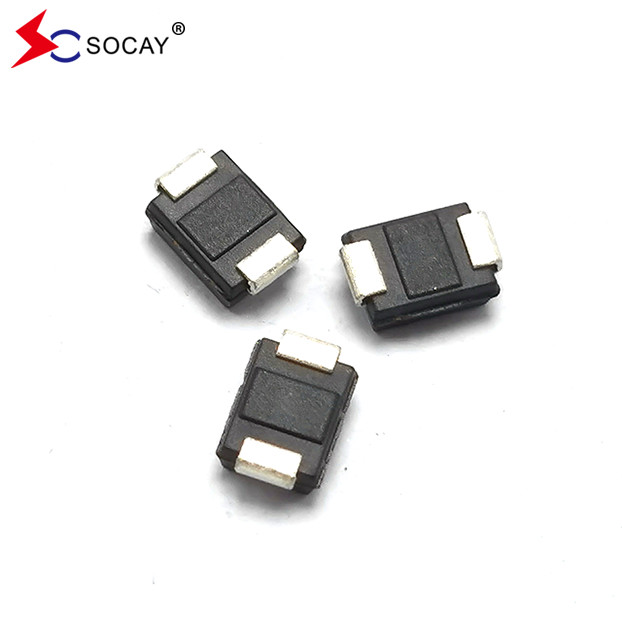

SOCAY P0720SB 4KV Thyristor Surge Suppressors Protection Devices 150A 65V SMD Thyristor
DATASHEET: PXXX0SB_v2103.1.pdf
| Part Number |
Marking |
VDRM @IDRM=5μA |
VS ①
@100V/μS
|
VT @IT=2.2A |
IS |
IT |
IH |
C0 ②
@1MHz, 2V bias
|
| |
|
V min |
V max |
V max |
mA max |
A max |
mA min |
pF typ |
| P0080SB |
P008B |
6 |
25 |
4 |
800 |
2.2 |
50 |
80 |
| P0300SB |
P03B |
25 |
40 |
4 |
800 |
2.2 |
50 |
80 |
| P0640SB |
P06B |
58 |
77 |
4 |
800 |
2.2 |
150 |
80 |
| P0720SB |
P07B |
65 |
88 |
4 |
800 |
2.2 |
150 |
75 |
| P0900SB |
P09B |
75 |
98 |
4 |
800 |
2.2 |
150 |
70 |
| P1100SB |
P11B |
90 |
130 |
4 |
800 |
2.2 |
150 |
70 |
| P1300SB |
P13B |
120 |
160 |
4 |
800 |
2.2 |
150 |
65 |
| P1500SB |
P15B |
140 |
180 |
4 |
800 |
2.2 |
150 |
65 |
| P1800SB |
P18B |
170 |
220 |
4 |
800 |
2.2 |
150 |
65 |
| P2300SB |
P23B |
190 |
260 |
4 |
800 |
2.2 |
150 |
60 |
| P2600SB |
P26B |
220 |
300 |
4 |
800 |
2.2 |
150 |
60 |
| P3100SB |
P31B |
275 |
350 |
4 |
800 |
2.2 |
150 |
50 |
| P3500SB |
P35B |
320 |
400 |
4 |
800 |
2.2 |
150 |
50 |
| P4200SB |
P42B |
400 |
520 |
4 |
800 |
2.2 |
150 |
40 |
|
Notes:
① Vs is measured at 100KV/s.
② Off-state capacitance is measured in VDC=2V, VRMS=1V, f=1MHz.
|
Description:
PXXX0SB Series are designed to protect broadband equipment such as modems, line card, CPE and DSL from damaging over-voltage transients.The series provides a surface mount solution that enables equipment to comply with global regulatory standards.
Advantages of semiconductor discharge tubes:
1. Before breakdown, it is equivalent to an open circuit, the insulation resistance is very large, and the leakage current is very small;
2. It has two-way symmetry characteristics;
3. The response speed is very ns level;
4. The breakdown voltage has good consistency.
Disadvantages of semiconductor discharge tubes:
1. Compared with ceramic discharge tubes, the flow rate is smaller, only a few hundred A;
2. The breakdown voltage has only certain specific values;
3. The capacitance is large, ranging from tens to hundreds of pF.
Disadvantages of semiconductor discharge tubes:
1. Compared with ceramic discharge tubes, the flow rate is smaller, only a few hundred A;
2. The breakdown voltage has only certain specific values;
3. The capacitance is large, ranging from tens to hundreds of pF.
| Parameter |
Definition |
| IS |
Switching Current - maximum current required to switch to on state |
| IDRM |
Leakage Current - maximum peak off-state current measured at VDRM |
| IH |
Holding Current - minimum current required to maintain on state |
| IT |
On-state Current - maximum rated continuous on-state current |
| VS |
Switching Voltage - maximum voltage prior to switching to on stat |
| VDRM |
Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state |
| VT |
On-state Voltage - maximum voltage measured at rated on-state current |
| C0 |
Off-state Capacitance - typical capacitance measured in off state |
| Series |
2/10μS1 |
8/20μS1 |
10/160μS1 |
10/560μS1 |
10/1000μS1 |
5/310μS1 |
ITSM
50/60 Hz
|
di/dt |
| |
2/10μS2 |
1.2/50μS2 |
10/160μS2 |
10/560μS2 |
10/1000μS2 |
10/700μS2 |
|
|
| |
A min |
A min |
A min |
A min |
A min |
A min |
A min |
Amps/µs max |
| B |
250 |
250 |
150 |
100 |
80 |
100 |
30 |
500 |
|
Notes:
- Current waveform in µs
- Voltage waveform in µs
|
- Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product.
- IPP ratings applicable over temperature range of -40ºC to +85ºC
- The device must initially be in thermal equilibrium with -40°C < TJ < +150°C
|
| High Temp Voltage Blocking |
80% Rated VDRM (VAC Peak ) +125°C or +150°C, Lead Material Copper Alloy High Temp Voltage Blocking 504 or 1008 hrs. MIL-STD-750 (Method 1040) JEDEC, JESD22-A-101 |
|
| |
|
|
| Temp Cycling |
-65°C to +150°C, 15 min. dwell, 10 up to 100 cycles. MIL-STD-750 (Method 1051) EIA/JEDEC, JESD22-A104 |
|
| |
|
|
| Biased Temp & Humidity |
52 VDC (+85°C) 85%RH, 504 up to 1008 hrs. EIA/ JEDEC, JESD22-A-101 |
|
| High Temp Storage |
+150°C 1008 hrs. MIL-STD-750 (Method 1031) JEDEC, JESD22-A-101 |
|
| Low Temp Storage |
-65°C, 1008 hrs. |
|
| Thermal Shock |
0°C to +100°C, 5 min. dwell, 10 sec. transfer, Thermal Shock 10 cycles. MIL-STD-750 (Method 1056) JEDEC, JESD22-A-106 |
|
| Autoclave (Pressure Cooker Test) |
+121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/Cooker Test) JEDEC, JESD22-A-102 |
|
| Resistance to Solder Heat |
+260°C, 30 secs. MIL-STD-750 (Method 2031 |
|
| Moisture Sensitivity Level |
85%RH, +85°C, 168 hrs., 3 reflow cycles Level (+260°C Peak). JEDEC-J-STD-020, Level 1 |
|
| Lead Material |
Copper Alloy |
|
| Terminal Finish |
100% Matte-Tin Plated |
|
| Body Material |
UL recognized epoxy meeting flammability classification 94V-0 |
|
| Part Number |
Component Package |
Quantity |
Packaging Option |
Packaging Specification |
|
| Pxxx0SB |
DO-214AA |
2500 |
Tape & Reel -12mm/13″tape |
EIA -481 - D |
|
Product features
Excellent capability of absorbing transient surge
Quick response to surge voltage
Eliminates over voltage caused by fast rising transients
Solid-state silicon technology, non degenera
Application
Audio/Video line
Network and telecom
Data lines and security systems
Serial ports
