Name: Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB
Brand: SOCAY
SKU: P0640SB
Rating: 4.7 (164 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Key Words: Diodes

Package: DO-214AA/SMB

Application: Protection Circuit Board;

Mounting Type: Surface Amount

VDRM (Min.): 58V

IDRM: 5μA

Vs @100V/μS (Max.): 77V

Is (Max.): 800mA

Vt @It=2.2A (Max.): 4V

It (Max.): 2.2A

C0 @1MHz,2V Bias (Typ.): 60pF

Highlight:

Thyristor Surge Suppressors TSS

Low Capacitance Thyristor Surge Suppressors

P0640SB

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: P0640SB

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: tape reel,bulk

Delivery Time: 1-3 weeks

Gallery

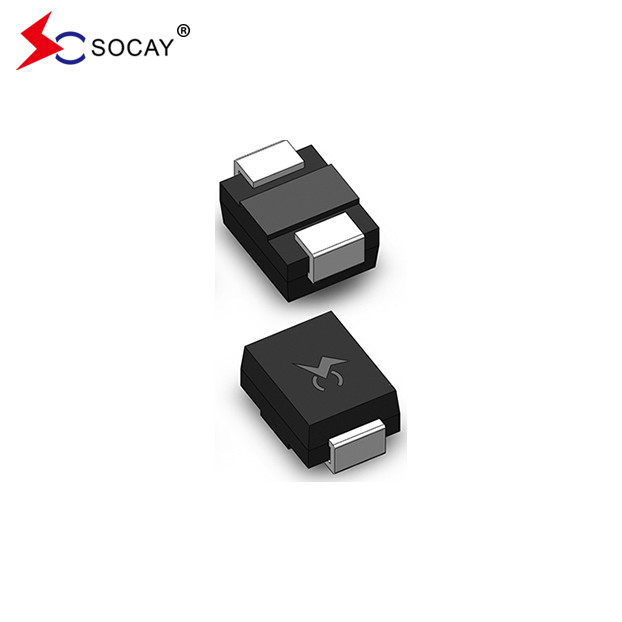

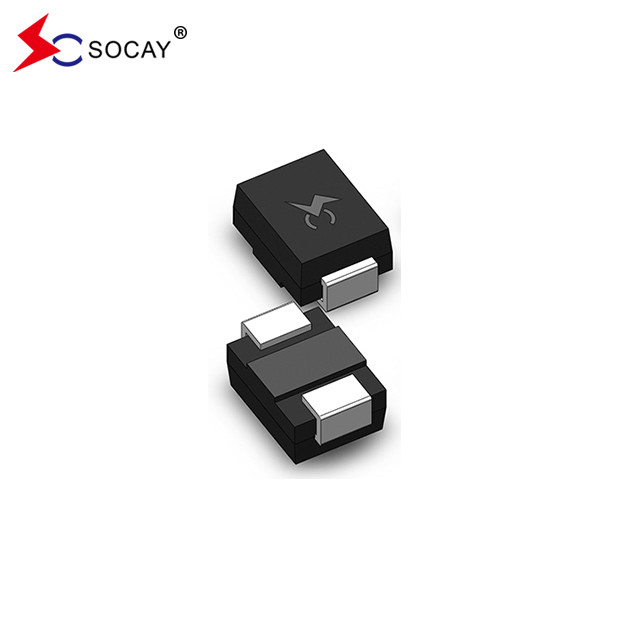

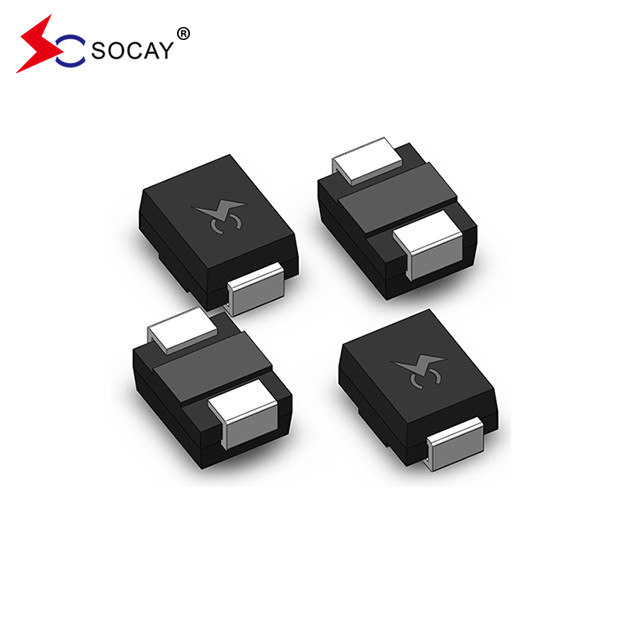

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB

Product Description

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB

DATASHEET: PXXX0SB_v2103.1.pdf

Part Number	Marking	V_DRM@I_DRM=5μA	VS ① @100V/μS	V_T @I_T=2.2A	I_S	I_T	I_H	C0 ② @1MHz, 2V bias
		V min	V max	V max	mA max	A max	mA min	pF typ
P0080SB	P008B	6	25	4	800	2.2	50	80
P0300SB	P03B	25	40	4	800	2.2	50	80
P0640SB	P06B	58	77	4	800	2.2	150	80
P0720SB	P07B	65	88	4	800	2.2	150	75
P0900SB	P09B	75	98	4	800	2.2	150	70
P1100SB	P11B	90	130	4	800	2.2	150	70
P1300SB	P13B	120	160	4	800	2.2	150	65
P1500SB	P15B	140	180	4	800	2.2	150	65
P1800SB	P18B	170	220	4	800	2.2	150	65
P2300SB	P23B	190	260	4	800	2.2	150	60
P2600SB	P26B	220	300	4	800	2.2	150	60
P3100SB	P31B	275	350	4	800	2.2	150	50
P3500SB	P35B	320	400	4	800	2.2	150	50
P4200SB	P42B	400	520	4	800	2.2	150	40
Notes: ① Vs is measured at 100KV/s. ② Off-state capacitance is measured in V_DC=2V, V_RMS=1V, f=1MHz.

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB 0

Introduction:

The TSS are characterised by precise conduction, fast response, high surge absorption capacity, biaxial symmetry and high reliability.

Working Principle

When connected in parallel to a circuit and the device is not moving, the resistance value is high and can be considered as an open circuit with little or no effect on the circuit. When there is an abnormal pulse, the resistance value drops instantly, releasing the current momentarily. When the abnormal high voltage disappears, it returns to its high resistance state and the circuit works normally.

Parameter	Definition
I_S	Switching Current - maximum current required to switch to on state
I_DRM	Leakage Current - maximum peak off-state current measured at V_DRM
I_H	Holding Current - minimum current required to maintain on state
I_T	On-state Current - maximum rated continuous on-state current
V_S	Switching Voltage - maximum voltage prior to switching to on stat
V_DRM	Peak Off-state Voltage - maximum voltage that can be applied while maintaining off state
V_T	On-state Voltage - maximum voltage measured at rated on-state current
C₀	Off-state Capacitance - typical capacitance measured in off state

Series	2/10μS¹	8/20μS¹		10/160μS¹	10/560μS¹	10/1000μS¹	5/310μS¹	I_TSM 50/60 Hz	di/dt
	2/10μS²	1.2/50μS²		10/160μS²	10/560μS²	10/1000μS²	10/700μS²
	A min	A min		A min	A min	A min	A min	A min	Amps/µs max
B	250	250		150	100	80	100	30	500
Notes: Current waveform in µs Voltage waveform in µs			- Peak pulse current rating (I_PP) is repetitive and guaranteed for the life of the product. - I_PP ratings applicable over temperature range of -40ºC to +85ºC - The device must initially be in thermal equilibrium with -40°C < T_J < +150°C

High Temp Voltage Blocking	80% Rated VDRM (VAC Peak ) +125°C or +150°C, Lead Material Copper Alloy High Temp Voltage Blocking 504 or 1008 hrs. MIL-STD-750 (Method 1040) JEDEC, JESD22-A-101

Temp Cycling	-65°C to +150°C, 15 min. dwell, 10 up to 100 cycles. MIL-STD-750 (Method 1051) EIA/JEDEC, JESD22-A104

Biased Temp & Humidity	52 VDC (+85°C) 85%RH, 504 up to 1008 hrs. EIA/ JEDEC, JESD22-A-101
High Temp Storage	+150°C 1008 hrs. MIL-STD-750 (Method 1031) JEDEC, JESD22-A-101
Low Temp Storage	-65°C, 1008 hrs.
Thermal Shock	0°C to +100°C, 5 min. dwell, 10 sec. transfer, Thermal Shock 10 cycles. MIL-STD-750 (Method 1056) JEDEC, JESD22-A-106
Autoclave (Pressure Cooker Test)	+121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/Cooker Test) JEDEC, JESD22-A-102
Resistance to Solder Heat	+260°C, 30 secs. MIL-STD-750 (Method 2031
Moisture Sensitivity Level	85%RH, +85°C, 168 hrs., 3 reflow cycles Level (+260°C Peak). JEDEC-J-STD-020, Level 1

Lead Material	Copper Alloy
Terminal Finish	100% Matte-Tin Plated
Body Material	UL recognized epoxy meeting flammability classification 94V-0

Part Number	Component Package	Quantity	Packaging Option	Packaging Specification
Pxxx0SB	DO-214AA	2500	Tape & Reel -12mm/13″tape	EIA -481 - D

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB 1

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB 2

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB 3

Low Capacitance Thyristor Surge Suppressors TSS Semiconductor Component P0640SB 4
