Product Description:
One of the key features of this fuse is its ability to reset after a fault condition has been cleared. This means that it can provide ongoing protection for your device without the need for replacement. Additionally, it has a maximum resistance 3Ω rating, which ensures that it won't cause any unnecessary voltage drops in your circuit.
Our Surface Mount PPTC Resettable Fuse has a maximum resistance of 3Ω, making it a suitable choice for radial leaded applications.
Whether you're working on a new project or need to replace a faulty fuse, our Surface Mount PPTC Resettable Fuse is a reliable and cost-effective choice. With its ability to reset after a fault condition, you can be confident that your device will be protected against overcurrent events.
Features:

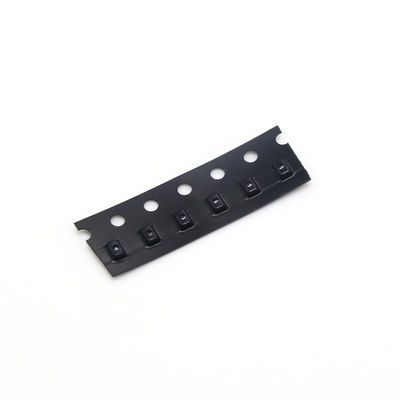

- Product Name: PPTC Resettable Fuse
- RoHS Compliant & Halogen Free
- Faster tripping, 0603 Dimension, Surface mountable, Solid state
- Operation Current: 0.01A ~ 0.50A? Maximum Voltage: 6V ~ 30Vdc
- Operating Temperature: -40℃ ~ + 85℃
Technical Parameters:
| Attribute |
Specification |
| Component Name |
PPTC Resettable Fuse |
| Package |
Surface Mount |
| I Hold |
0.25A |
| I Trip |
0.55A |
| V Max |
9.0Vdc |
| I Max |
40.0A |
| P dtyp. |
0.5W |
| Current |
8.0A |
| Time |
0.08Sec. |
| R Min |
0.5Ω |
| R1 Max |
3.0Ω |
The PPTC Resettable Fuse product comes in a Surface Mount package and is available in two types - Leaded PPTC Resettable Fuse and Radial Leaded PPTC Resettable Fuse.
Applications:
- Telecommunications and Networking: Subscriber Terminal Equipment, Analog/Analog Line Cards, T1/E1 Equipment, ISDN Equipment, ASDL Equipment, HDSL Equipment, Main Distribution Frame Security Units, Cable Telephone/Central Office to Subscriber Cable Lines, and more.
- Computer and Multimedia: CPU/IC protection, IEEE 802.3 Ethernet LAN, IEEE 1394, I/O ports, LCD monitors/displays, LNB satellite set-top boxes, loudspeakers, PC cards and slots, smart cards, smart card readers, DDC video ports DVI, USB, POS equipment, and so on.
- Industrial and automotive industries: electromagnetic loads, motors, fans, blowers, halogen lamps, fire alarm equipment, electronic ballasts, electronic safety devices, transformers, printed circuit boards and copper-platinum wires, protection of electrical connection wires/harnesses and so on.
- Batteries and portable electronic equipment: lithium batteries and battery packs, protection of rechargeable battery packs, linear AC/DC converters, protection of input ports of portable electronic products, DC cigarette lighter power converter and so on.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is SOCAY.
Q: What is the model number of this product?
A: The model number of this product is SCF025-0603RB.
Q: Where is this product manufactured?
A: This product is manufactured in Shenzhen, Guangdong, China.
Q: What certifications does this product have?
A: This product has UL, REACH, RoHS, and ISO certifications.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5000pcs.
Q: Is the price of this product negotiable?
A: Yes, the price of this product is negotiable.
Q: How long does it take to deliver this product?
A: It takes 5-8 work days to deliver this product.
