SCF160-16-1812RB Resettable Fuse PPTC 16Vmax 1.0W Power Resistance 0.03 - 0.13Ω

2000PCS
MOQ
Negotiable
Price
SCF160-16-1812RB Resettable Fuse PPTC 16Vmax 1.0W Power Resistance 0.03 - 0.13Ω
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PPTC Resettable Fuse
Package Type: SMD1812
I Hold: 1.6A
I Trip: 2.8A
V Max: 16V
I Max: 40A
P Dtyp.: 1.0W
Maximum Time To Trip Current: 8A
Maximum Time To Trip Time: 1Sec
Resistance Min: 0.03Ω
Resistance Max: 0.13Ω
Highlight:

Resettable Fuse PPTC 16Vmax

,

1.0W Resettable Fuse PPTC
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL, TUV, REACH, RoHS, ISO
Model Number: SCF160-16-1812RB
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SMD1812 Series Resettable Fuse SCF160-16-1812RB 16Vmax 1.0W Typical Power Resistance 0.03~0.13Ω



DATASHEET:  SCF1812RB Series_v2310.1.pdf



Part Number Hold Current Trip Current Rated Voltage Max Current Typical Power

Maximum Time

To Trip

 Resistance
  I hold (A) I trip (A)

V max

(Vdc)

I max

(A)

P dtyp.

(W)

Current

(A)

Time

(Sec.)

R min

(Ω)

R 1max

(Ω)
SCF010-1812RB 0.10 0.30 60.0 100 0.8 0.50 1.50 0.750 15.000
SCF014-1812RB 0.14 0.34 60.0 100 0.8 1.50 0.15 0.650 6.000
SCF020-1812RB 0.20 0.40 30.0 100 0.8 8.0 0.02 0.350 5.000
SCF030-1812RB 0.30 0.60 30.0 100 0.8 8.0 0.10 0.250 3.000
SCF035-1812RB 0.35 0.70 16.0 100 0.8 8.0 0.10 0.200 2.500
SCF035-30-1812RB 0.35 0.70 30.0 100 0.8 8.0 0.10 0.200 2.500
SCF050-1812RB 0.50 1.00 15.0 100 0.8 8.0 0.15 0.150 1.000
SCF050-24-1812RB 0.50 1.00 24.0 100 0.8 8.0 0.15 0.150 1.000
SCF050-30-1812RB 0.50 1.00 30.0 100 0.8 8.0 0.15 0.150 1.000
SCF050-60-1812RB 0.50 1.00 60.0 40 0.8 8.0 0.15 0.150 1.400
SCF075-1812RB 0.75 1.50 13.2 100 0.8 8.0 0.20 0.090 0.450
SCF075-24-1812RB 0.75 1.50 24.0 100 0.8 8.0 0.20 0.090 0.450
SCF075-33-1812RB 0.75 1.50 33.0 100 0.8 8.0 0.20 0.090 0.450
SCF110-1812RB 1.10 2.20 8.0 100 0.8 8.0 0.30 0.050 0.250
SCF110-16-1812RB 1.10 2.20 16.0 100 0.8 8.0 0.30 0.050 0.250
SCF110-24-1812RB 1.10 2.20 24.0 100 0.8 8.0 0.30 0.050 0.250
SCF110-33-1812RB 1.10 2.20 33.0 100 0.8 8.0 0.30 0.050 0.250
SCF125-1812RB 1.25 2.50 8.0 100 0.8 8.0 0.40 0.050 0.200
SCF125-16-1812RB 1.25 2.50 16.0 100 0.8 8.0 0.40 0.050 0.200
SCF150-1812RB 1.50 3.00 8.0 100 0.8 8.0 0.50 0.040 0.160
SCF150-16-1812RB 1.50 3.00 16.0 100 0.8 8.0 0.50 0.040 0.160
SCF150-24-1812RB 1.50 3.00 24.0 100 0.8 8.0 0.50 0.040 0.160
SCF160-1812RB 1.60 2.80 8.0 100 0.8 8.0 1.00 0.030 0.130
SCF160-16-1812RB 1.60 2.80 16 40 1.0 8.0 1.00 0.030 0.130
SCF200-1812RB 2.00 4.00 8.0 100 0.8 8.0 2.00 0.020 0.100
SCF200-12-1812RB 2.00 4.00 12.0 100 0.8 8.0 2.00 0.020 0.100
SCF200-16-1812RB 2.00 4.00 16.0 100 0.8 8.0 2.00 0.020 0.100
SCF260-1812RB 2.60 5.00 8.0 100 1.0 8.0 2.50 0.015 0.050
SCF260-12-1812RB 2.60 5.00 12.0 100 1.0 8.0 2.50 0.015 0.060
SCF260-16-1812RB 2.60 5.00 16.0 100 1.0 8.0 2.50 0.015 0.060
SCF300-1812RB 3.00 5.00 6.0 100 1.0 8.0 4.00 0.012 0.040

I hold = Hold Current. Maximum current device will not trip in 25℃ still air.

I trip = Trip Current. Minimum current at which the device will always trip in 25℃ still air.

V max = Maximum operating voltage device can withstand without damage at rated current (Imax).

I max = Maximum fault current device can withstand without damage at rated voltage (Vmax).

P dtyp =Maximum power dissipation when device is in the tripped state in 25℃ still air environment at rated voltage.

R min = Minimum device resistance prior to tripping at 25℃.

R 1max = Maximum device resistance is measured one hour post reflow.








Features:

u RoHS Compliant & Halogen Free

u Faster tripping, 1812 Dimension, Surface mountable, Solid state

u Operation Current: 0.10A ~ 3.00A

u Maximum Voltage: 6V ~ 60Vdc

u Operating Temperature: -40℃ ~ + 85℃





Model Maximum ambient operating temperature (℃)
  -40 -20 0 25 40 50 60 70 85
SCF010-1812RB 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.03
SCF014-1812RB 0.23 0.19 0.17 0.14 0.12 0.10 0.09 0.08 0.06
SCF020-1812RB 0.29 0.26 0.23 0.20 0.17 0.15 0.14 0.12 0.10
SCF030-1812RB 0.44 0.39 0.35 0.30 0.26 0.23 0.21 0.17 0.15
SCF035-1812RB 0.51 0.46 0.41 0.35 0.30 0.27 0.25 0.21 0.17
SCF035-30-1812RB 0.51 0.46 0.41 0.35 0.30 0.27 0.25 0.21 0.17
SCF050-1812RB 0.59 0.57 0.55 0.50 0.45 0.43 0.35 0.30 0.23
SCF050-24-1812RB 0.59 0.57 0.55 0.50 0.45 0.43 0.35 0.30 0.23
SCF050-30-1812RB 0.59 0.57 0.55 0.50 0.45 0.43 0.35 0.30 0.23
SCF050-60-1812RB 0.59 0.57 0.55 0.50 0.45 0.43 0.35 0.30 0.23
SCF075-1812RB 1.10 0.99 0.87 0.75 0.63 0.57 0.49 0.45 0.35
SCF075-24-1812RB 1.10 0.99 0.87 0.75 0.63 0.57 0.49 0.45 0.35
SCF075-33-1812RB 1.10 0.99 0.87 0.75 0.63 0.57 0.49 0.45 0.35
SCF110-1812RB 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52
SCF110-16-1812RB 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52
SCF110-24-1812RB 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52
SCF110-33-1812RB 1.60 1.45 1.28 1.10 0.92 0.83 0.71 0.66 0.52
SCF125-1812RB 2.00 1.75 1.52 1.25 1.00 0.95 0.90 0.75 0.53
SCF125-16-1812RB 2.00 1.75 1.52 1.25 1.00 0.95 0.90 0.75 0.53
SCF150-1812RB 2.30 2.05 1.77 1.50 1.23 1.09 0.95 0.82 0.61
SCF150-16-1812RB 2.30 2.05 1.77 1.50 1.23 1.09 0.95 0.82 0.61
SCF150-24-1812RB 2.30 2.05 1.77 1.50 1.23 1.09 0.95 0.82 0.61
SCF160-1812RB 2.45 2.15 1.89 1.60 1.34 1.25 1.15 0.96 0.79
SCF160-16-1812RB 2.45 2.15 1.89 1.60 1.34 1.25 1.15 0.96 0.79
SCF200-1812RB 2.89 2.61 2.30 2.00 1.75 1.66 1.45 1.39 1.19
SCF200-12-1812RB 2.89 2.61 2.30 2.00 1.75 1.66 1.45 1.39 1.19
SCF200-16-1812RB 2.89 2.61 2.30 2.00 1.75 1.66 1.45 1.39 1.19
SCF260-1812RB 3.76 3.39 2.99 2.60 2.28 2.16 1.89 1.81 1.55
SCF260-12-1812RB 3.38 3.05 2.69 2.60 2.05 1.94 1.70 1.63 1.39
SCF260-16-1812RB 3.38 3.05 2.69 2.60 2.05 1.94 1.70 1.63 1.39
SCF300-1812RB 4.34 3.92 3.45 3.00 2.63 2.49 2.18 2.09 1.79

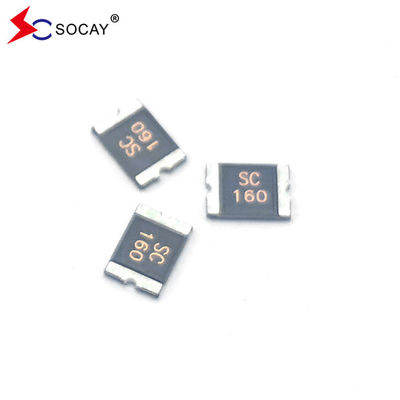

SCF160-16-1812RB Resettable Fuse PPTC 16Vmax 1.0W Power Resistance 0.03 - 0.13Ω 0

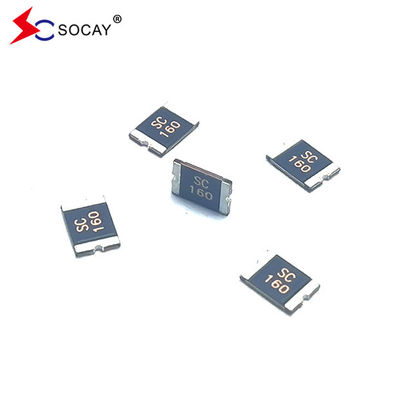

SCF160-16-1812RB Resettable Fuse PPTC 16Vmax 1.0W Power Resistance 0.03 - 0.13Ω 1

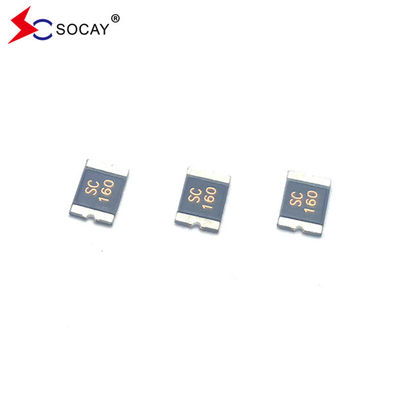

SCF160-16-1812RB Resettable Fuse PPTC 16Vmax 1.0W Power Resistance 0.03 - 0.13Ω 2



Part Number Quantity Part Number Quantity
SCF010-1812RB 1500 PCS SCF110-33-1812RB 1500 PCS
SCF014-1812RB 1500 PCS SCF125-1812RB 2000 PCS
SCF020-1812RB 1500 PCS SCF125-16-1812RB 1500 PCS
SCF030-1812RB 1500 PCS SCF150-1812RB 2000 PCS
SCF035-1812RB 1500 PCS SCF150-16-1812RB 1500 PCS
SCF035-30-1812RB 1500 PCS SCF150-24-1812RB 1500 PCS
SCF050-1812RB 2000 PCS SCF160-1812RB 2000 PCS
SCF050-24-1812RB 2000 PCS SCF160-16-1812RB 2000 PCS
SCF050-30-1812RB 2000 PCS SCF200-1812RB 2000 PCS
SCF050-60-1812RB 1500 PCS SCF200-12-1812RB 1500 PCS
SCF075-1812RB 2000 PCS SCF200-16-1812RB 1500 PCS
SCF075-24-1812RB 2000 PCS SCF260-1812RB 1500 PCS
SCF075-33-1812RB 1500 PCS SCF260-12-1812RB 1500 PCS
SCF110-1812RB 2000 PCS SCF260-16-1812RB 1500 PCS
SCF110-16-1812RB 2000 PCS SCF300-1812RB 1500 PCS
SCF110-24-1812RB 1500 PCS -- --
