PPTC SMD Resettable Fuse Hold Current 0.5A Rated Voltage 16Vmax 0.6W Typical Power

4000PCS
MOQ
Negotiable
Price
PPTC SMD Resettable Fuse Hold Current 0.5A Rated Voltage 16Vmax 0.6W Typical Power
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PPTC Resettable Fuse
Package Type: SMD1210
I Hold: 0.5A
I Trip: 1A
V Max: 16V
I Max: 100A
P Dtyp.: 0.6W
Maximum Time To Trip Current: 8A
Maximum Time To Trip Time: 0.1Sec
Resistance Min: 0.18Ω
Resistance Max: 0.9Ω
Highlight:

PPTC SMD Resettable Fuse

,

0.5A SMD Resettable Fuse
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL, TUV, REACH, RoHS, ISO
Model Number: SCF050-1210RB
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SMD Resettable PPTC SCF050-1210RB Hold Current 0.5A Rated Voltage 16Vmax 0.6W Typical Power



DATASHEET:  SCF1210RB Series_v2305.1.pdf



Part Number Hold Current Trip Current Rated Voltage Max Current Typical Power

Maximum Time

To Trip

 Resistance
  I hold (A) I trip (A)

V max

(Vdc)

I max

(A)

P dtyp.

(W)

Current

(A)

Time

(Sec.)

R min

(Ω)

R 1max

(Ω)
SCF005-1210RB 0.05 0.15 60.0 100 0.6 0.25 1.50 2.800 50.00
SCF010-1210RB 0.10 0.30 60.0 100 0.6 0.50 0.60 0.800 15.00
SCF020-1210RB 0.20 0.40 30.0 100 0.6 8.0 0.02 0.400 5.000
SCF035-1210RB 0.35 0.75 16.0 100 0.6 8.0 0.20 0.200 1.300
SCF035-30-1210RB 0.35 0.75 30.0 100 0.6 8.0 0.20 0.200 1.300
SCF050-1210RB 0.50 1.00 16.0 100 0.6 8.0 0.10 0.180 0.900
SCF075-1210RB 0.75 1.50 6.0 100 0.6 8.0 0.10 0.070 0.400
SCF075-24-1210RB 0.75 1.50 24.0 100 0.6 8.0 0.10 0.070 0.450
SCF110-1210RB 1.10 2.20 6.0 100 0.6 8.0 0.30 0.050 0.210
SCF110-16-1210RB 1.10 2.20 16.0 100 0.8 8.0 0.30 0.050 0.250
SCF150-1210RB 1.50 3.00 6.0 100 0.8 8.0 0.50 0.030 0.110
SCF150-16-1210RB 1.50 3.00 16.0 100 0.6 8.0 0.50 0.030 0.160
SCF175-1210RB 1.75 3.50 6.0 100 0.8 8.0 0.60 0.020 0.080
SCF200-1210RB 2.00 4.00 6.0 100 0.8 8.0 1.00 0.015 0.070

I hold = Hold Current. Maximum current device will not trip in 25℃ still air.

I trip = Trip Current. Minimum current at which the device will always trip in 25℃ still air.

V max = Maximum operating voltage device can withstand without damage at rated current (Imax).

I max = Maximum fault current device can withstand without damage at rated voltage (Vmax).

P dtyp =Maximum power dissipation when device is in the tripped state in 25℃ still air environment at rated voltage.

R min = Minimum device resistance prior to tripping at 25℃.

R 1max = Maximum device resistance is measured one hour post reflow.






Features:

u RoHS Compliant & Halogen Free

u Faster tripping, 1210 Dimension, Surface mountable, Solid state

u Operation Current: 0.05A ~ 2.00A

u Maximum Voltage: 6V ~ 60Vdc

u Operating Temperature: -40℃ ~ + 85℃







Test Item Test Conditions Accept / Reject Criteria
Resistance In still air @ 25℃ Rmin≤R≤R1max
Time to Trip Specified current, Vmax, 25℃ T≤Maximum Time to Trip
Holding Current 30min, at IH No trip
Trip Cycle Life Vmax, Imax, 100cycles No arcing or burning
Trip Endurance Vmax, 1 hour No arcing or burning








Model Maximum ambient operating temperature (℃)
  -40 -20 0 25 40 50 60 70 85
SCF005-1210RB 0.08 0.07 0.06 0.05 0.04 0.04 0.03 0.03 0.02
SCF010-1210RB 0.16 0.14 0.12 0.10 0.08 0.07 0.06 0.05 0.05
SCF020-1210RB 0.29 0.26 0.22 0.20 0.16 0.14 0.13 0.11 0.08
SCF035-1210RB 0.47 0.45 0.40 0.35 0.33 0.28 0.24 0.21 0.18
SCF035-30-1210RB 0.47 0.45 0.40 0.35 0.33 0.28 0.24 0.21 0.18
SCF050-1210RB 0.76 0.67 0.58 0.50 0.43 0.40 0.36 0.32 0.28
SCF075-1210RB 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40
SCF075-24-1210RB 1.00 0.97 0.86 0.75 0.64 0.59 0.54 0.48 0.40
SCF110-1210RB 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58
SCF110-16-1210RB 1.60 1.42 1.26 1.10 0.94 0.86 0.80 0.70 0.58
SCF150-1210RB 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.85 0.65
SCF150-16-1210RB 2.30 2.02 1.76 1.50 1.24 1.11 1.00 0.85 0.65
SCF175-1210RB 2.45 2.22 2.01 1.75 1.45 1.26 1.10 0.98 0.80
SCF200-1210RB 2.60 2.44 2.35 2.00 1.78 1.67 1.50 1.45 1.10

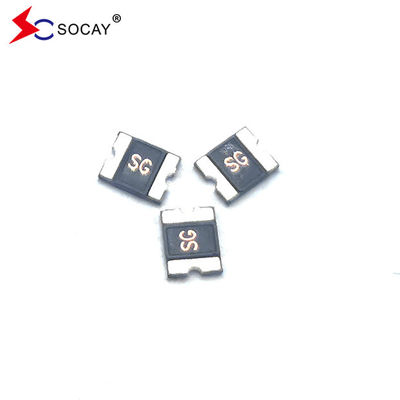

PPTC SMD Resettable Fuse Hold Current 0.5A Rated Voltage 16Vmax 0.6W Typical Power 0

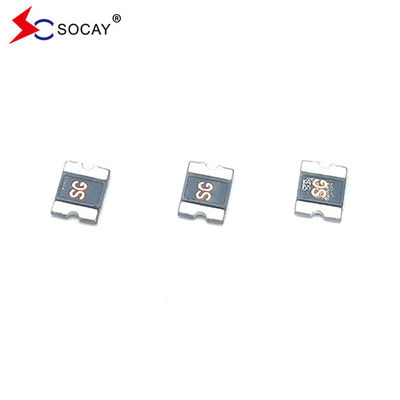

PPTC SMD Resettable Fuse Hold Current 0.5A Rated Voltage 16Vmax 0.6W Typical Power 1

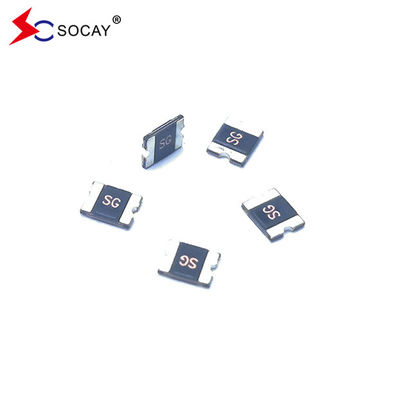

PPTC SMD Resettable Fuse Hold Current 0.5A Rated Voltage 16Vmax 0.6W Typical Power 2

Part Number Quantity Part Number Quantity
SCF005-1210RB 4000 PCS SCF075-24-1210RB 4000 PCS
SCF010-1210RB 4000 PCS SCF110-1210RB 4000 PCS
SCF020-1210RB 4000 PCS SCF110-16-1210RB 4000 PCS
SCF035-1210RB 4000 PCS SCF150-1210RB 4000 PCS
SCF035-30-1210RB 4000 PCS SCF150-16-1210RB 3000 PCS
SCF050-1210RB 4000 PCS SCF175-1210RB 4000 PCS
SCF075-1210RB 4000 PCS SCF200-1210RB 4000 PCS
