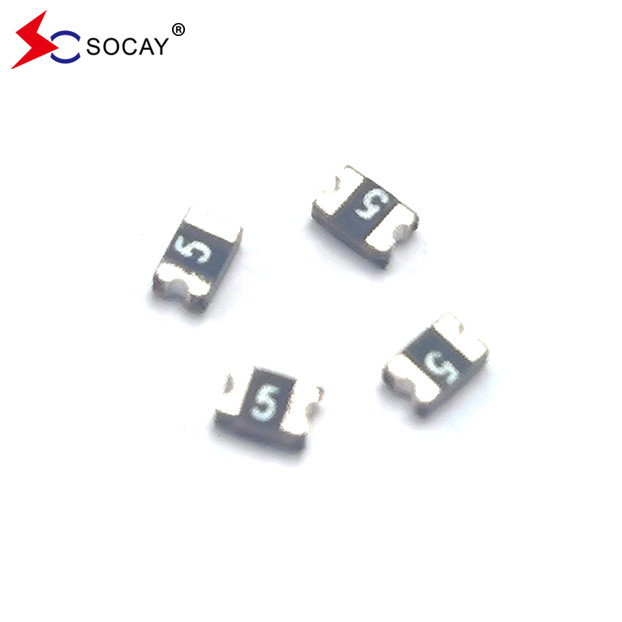

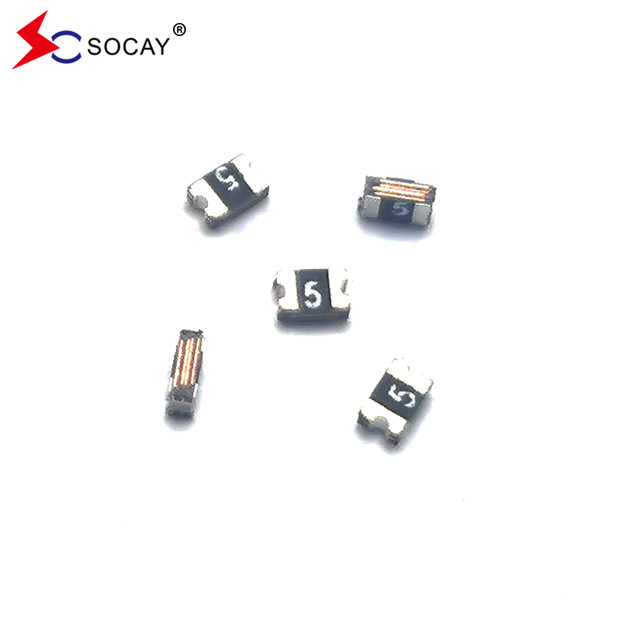

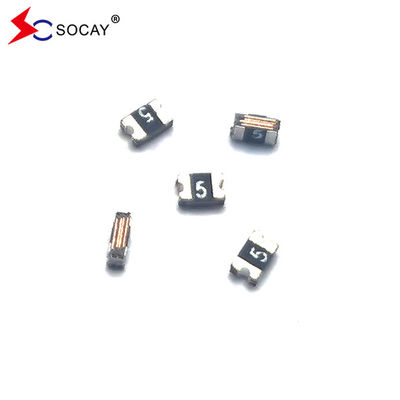

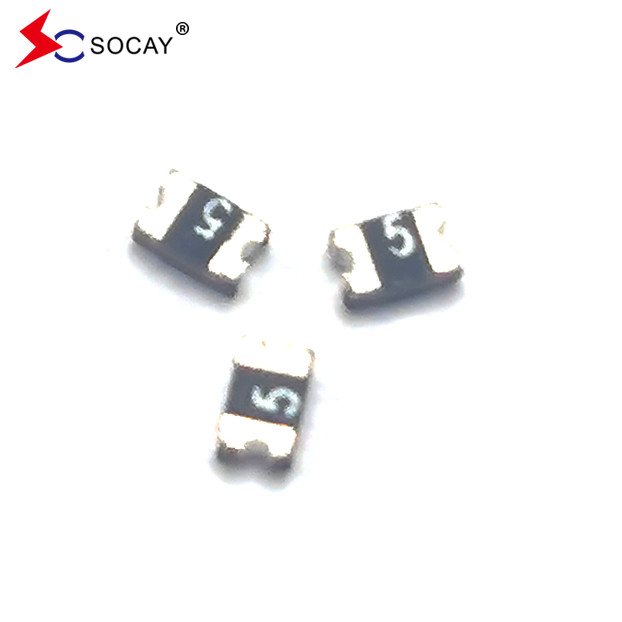

Imax 40A PPTC Resettable Fuse SCF050-9-0805RB 0.5A 9Vmax SMD0805 Package

4000PCS
MOQ
Negotiable
Price
Imax 40A PPTC Resettable Fuse SCF050-9-0805RB 0.5A 9Vmax SMD0805 Package
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PPTC Resettable Fuse
Package Type: SMD0805
I Hold: 0.5A
I Trip: 1A
V Max: 9V
I Max: 40A
P Dtyp.: 0.5W
Maximum Time To Trip Current: 8A
Maximum Time To Trip Time: 0.1Sec
Resistance Min: 0.15Ω
Resistance Max: 0.9Ω
Highlight:

40A PPTC Resettable Fuse

,

SMD0805 PPTC Resettable Fuse

,

40A Resettable Fuse
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL, TUV, REACH, RoHS, ISO
Model Number: SCF050-9-0805RB
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY PPTC Resettable Fuse SCF050-9-0805RB 0.5A 9Vmax SMD0805 Package Imax 40A



DATASHEET:  SCF0805RB Series_v2208.1.pdf



Part Number Hold Current Trip Current Rated Voltage Max Current Typical Power

Maximum Time

To Trip

 Resistance
  I hold (A) I trip (A)

V max

(Vdc)

I max

(A)

P dtyp.

(W)

Current

(A)

Time

(Sec.)

R min

(Ω)

R 1max

(Ω)
SCF005-0805RB 0.05 0.15 15.0 100 0.50 0.50 1.50 1.500 25.00
SCF010-0805RB 0.10 0.30 15.0 100 0.50 0.50 1.50 1.000 8.000
SCF010-24-0805RB 0.10 0.30 24.0 100 0.50 0.50 1.50 1.000 8.000
SCF020-0805RB 0.20 0.50 9.0 100 0.50 8.00 0.02 0.500 3.500
SCF025-0805RB 0.25 0.50 6.0 100 0.50 8.00 0.02 0.450 3.200
SCF030-0805RB 0.30 0.70 6.0 100 0.50 8.00 0.10 0.250 2.000
SCF035-0805RB 0.35 0.75 6.0 100 0.50 8.00 0.10 0.250 1.200
SCF035-12-0805RB 0.35 0.75 12.0 100 0.50 8.00 0.10 0.250 1.300
SCF050-0805RB 0.50 1.00 6.0 100 0.60 8.00 0.10 0.150 0.850
SCF050-9-0805RB 0.50 1.00 9.0 40 0.50 8.00 0.10 0.150 0.900
SCF075-0805RB 0.75 1.50 6.0 100 0.60 8.00 0.20 0.090 0.385
SCF100-0805RB 1.00 1.95 6.0 100 0.60 8.00 0.30 0.060 0.230
SCF110-0805RB 1.10 2.20 6.0 100 0.60 8.00 0.30 0.060 0.210

I hold = Hold Current. Maximum current device will not trip in 25℃ still air.

I trip = Trip Current. Minimum current at which the device will always trip in 25℃ still air.

V max = Maximum operating voltage device can withstand without damage at rated current (Imax).

I max = Maximum fault current device can withstand without damage at rated voltage (Vmax).

P dtyp =Maximum power dissipation when device is in the tripped state in 25℃ still air environment at rated voltage.

R min= Minimum device resistance prior to tripping at 25℃.

R 1max = Maximum device resistance is measured one hour post reflow.









Features:

u RoHS Compliant & Halogen Free

u Faster tripping, 0805 Dimension, Surface mountable, Solid state

u Operation Current: 0.05A ~ 1.10A

u Maximum Voltage: 6V ~ 24Vdc

u Operating Temperature: -40℃ ~ + 85℃





Test Item Test Conditions Accept / Reject Criteria
Resistance In still air @ 25℃ Rmin≤R≤R1max
Time to Trip Specified current, Vmax, 25℃ T≤Maximum Time to Trip
Holding Current 30min, at IH No trip
Trip Cycle Life Vmax, Imax, 100cycles No arcing or burning
Trip Endurance Vmax, 1 hour No arcing or burning





Terminal Materials Tin-Plated Nickle-copper
Soldering Zone Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3.





Test Item Test Conditions Resistance Change
Passive Aging 85℃,1000 hours ±10%
Humidity Aging 85℃/85%RH.100 hours ±5%
Thermal Shock

MIL-STD-202, Method 107G

+85℃/-40℃, 20 times

 ±33% typical resistance change
Solvent Resistance MIL-STD-202, Method 215 No change
Vibration ML-STD-883C, Test Condition A No change



Model Maximum ambient operating temperature (℃)
  -40 -20 0 25 40 50 60 70 85
SCF005-0805RB 0.070 0.063 0.058 0.050 0.043 0.035 0.030 0.025 0.018
SCF010-0805RB 0.140 0.125 0.115 0.100 0.085 0.070 0.060 0.050 0.035
SCF010-24-0805RB 0.140 0.125 0.115 0.100 0.085 0.070 0.060 0.050 0.035
SCF020-0805RB 0.280 0.250 0.230 0.200 0.170 0.140 0.120 0.100 0.070
SCF025-0805RB 0.350 0.310 0.290 0.250 0.210 0.180 0.150 0.013 0.090
SCF030-0805RB 0.420 0.380 0.350 0.300 0.255 0.210 0.180 0.150 0.110
SCF035-0805RB 0.470 0.440 0.390 0.350 0.300 0.270 0.240 0.200 0.140
SCF035-12-0805RB 0.470 0.440 0.390 0.350 0.300 0.270 0.240 0.200 0.140
SCF050-0805RB 0.680 0.620 0.550 0.500 0.400 0.370 0.330 0.290 0.230
SCF050-9-0805RB 0.680 0.620 0.550 0.500 0.400 0.370 0.330 0.290 0.230
SCF075-0805RB 1.000 0.900 0.790 0.750 0.630 0.570 0.530 0.410 0.340
SCF100-0805RB 1.350 1.250 1.100 1.000 0.820 0.740 0.650 0.550 0.420
SCF110-0805RB 1.450 1.350 1.200 1.100 0.920 0.840 0.750 0.650 0.520





Imax 40A PPTC Resettable Fuse SCF050-9-0805RB 0.5A 9Vmax SMD0805 Package 0




Imax 40A PPTC Resettable Fuse SCF050-9-0805RB 0.5A 9Vmax SMD0805 Package 1



Imax 40A PPTC Resettable Fuse SCF050-9-0805RB 0.5A 9Vmax SMD0805 Package 2



Part Number Quantity Part Number Quantity
SCF005-0805RB 5000 PCS SCF035-12-0805RB 5000 PCS
SCF010-0805RB/SCF010-24-0805RB 5000 PCS SCF050-0805RB 5000 PCS
SCF020-0805RB 5000 PCS SCF050-9-0805RB 4000 PCS
SCF025-0805RB 5000 PCS SCF075-0805RB 4000 PCS
SCF030-0805RB 5000 PCS SCF100-0805RB 4000 PCS
SCF035-0805RB 5000 PCS SCF110-0805RB 4000 PCS
