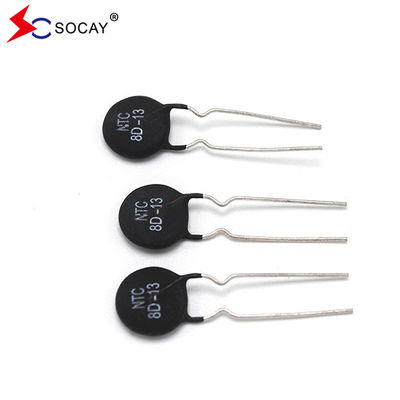

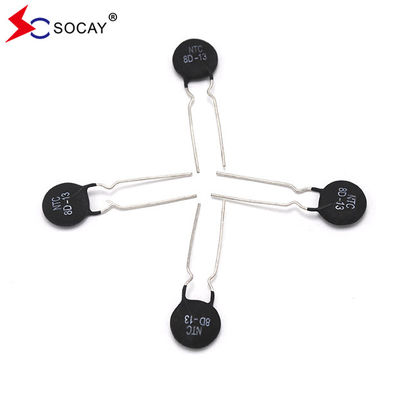

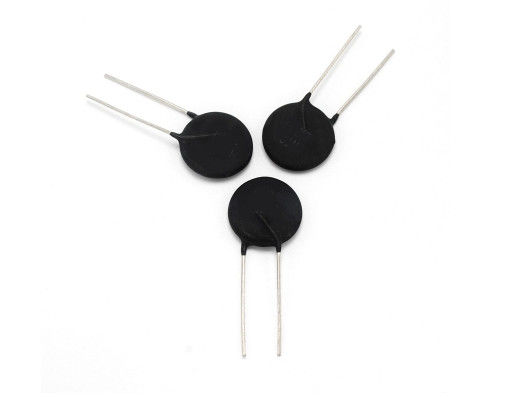

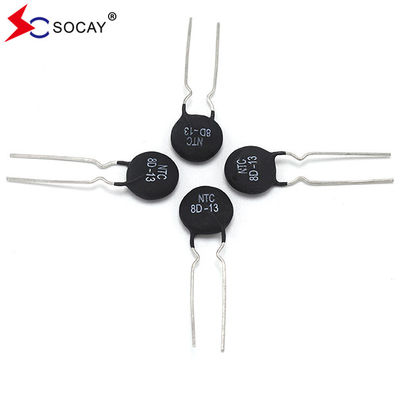

SOCAY Power NTC Thermistor MF72-SCN2.5D-13 2.5Ω Imax Wide Resistance Range
DATASHEET: MF72-SCN2.5D-13_v2105.1.pdf
1. Electrical Characteristics
| Part Number |
MF72-SCN3D-13 |
|
Resistance
at 25℃
±20%
|
R25(Ω) |
3 |
|
Max.
Permissible
Working
Current
|
Imax(A) |
6 |
|
Resistance
under Load
(mΩ)
|
(mΩ) |
88 |
|
Dissipation
Factor
|
δ(mW/℃) |
14 |
|
Thermal
Time
Constant
|
τ(Sec.) |
60 |
|
Maximum permissible capacitance
@240Vac
|
C(μF) |
330 |
2. Classification
Agency recognition: UL /cUL/RoHS
RoHS & Halogen Free (HF) compliant
Wide resistance range
Radial lead resin coated
Cost effective
Body size: Ф13mm
High power rating
Operating temperature range: -40~+200℃
Applications:
Halogen lamp
Switch mode power supply
Transformer
Adapter
Electric motor
Projector
LED driver circuit
Storage Conditions of Products:
- Storage Conditions:Storage Temperature: -10℃ ~ +40℃.
Relative Humidity: ≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.
2.Period of Storage: 1 year
Part Number Code
MF72 -SCN 3D-13
(1) (2) (3)(4)
(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 3D: Zero Power Resistance at 25℃(R25): 3=3Ω.
(4) Body Size: 13=Ф13mm.
Construction and Dimensions (Unit: mm)
Packing
| Part Number |
Type of L |
Quantity (pcs/bag) |
| MF72-SCN3D-11 |
Lshort |
250 |
| |
Llong |
250 |
Dependability
Company Introduce
We are a manufacturer and supplier with over 20 years of experience in passive components, as shown below,
1- NTC Themistor
2- MOV/MLV
3-TVS Diodes
4- PPTC Resettable Fuse
5- Gas Discharge Tube
6- ESD
7-Varistor,etc.
Q: May we get some samples?
A: Of course,samples are available.
Q: Do you support customization?
A: Yes,we do.
Q: What is product lead time?
A: For GDT,TVS and ESD,lead time will take 1-2 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 2-3 weeks.Accurate lead timewill be further confirmed when we know your specific requirement.
Please feel free to contact us if you have any question.
