MF72-SCN10D-9 Negative Temperature Coefficient Thermistor For Transformer Adapter

1000PCS / 500PCS
MOQ
Negotiable
Price
MF72-SCN10D-9 Negative Temperature Coefficient Thermistor For Transformer Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф9mm
R25: 10Ω
Imax: 2A
Resistance Under Load: 458mΩ
δ: 11mW/℃
τ: 32 Secs.
C: 110μF
Storage Temperature Range: -10 To +40 ℃
Highlight:

Transformer Negative Temperature Coefficient Thermistor

,

Adapter Negative Temperature Coefficient Thermistor
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: MF72-SCN10D-9
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

Socay NTC MF72 Series MF72-SCN10D-9 Power Thermistor Suitable for Transformer/Adapter/Projector



DATASHEET:  MF72-SCN10D-9_v2105.1.pdf



Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(uF)
MF72-SCN10D-9 10 2 458 11 32 110



Main Material



Connected in series on the circuit, at room temperature, NTC resistance value is large, in the moment the circuit is connected, can play a current limiting role; when the circuit works normally, NTC due to the temperature rise caused by passing current, at this time the resistance value drops, will not affect the normal operation of the circuit.

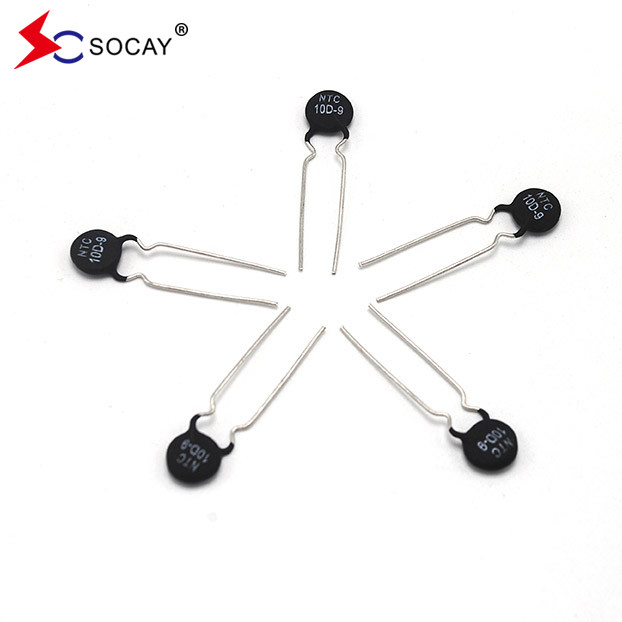

MF72-SCN10D-9 Negative Temperature Coefficient Thermistor For Transformer Adapter 0


Features:



  • RoHS & Halogen Free (HF) compliant
  • Body size: φ9mm
  • Radial lead resin coated
  • High power rating
  • Wide resistance range
  • Cost effective
  • Operating temperature range: -40~+200℃
  • Agency recognition: UL /cUL/RoHS





Storage Conditions of Products:

u Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

u Period of Storage: 1 year.

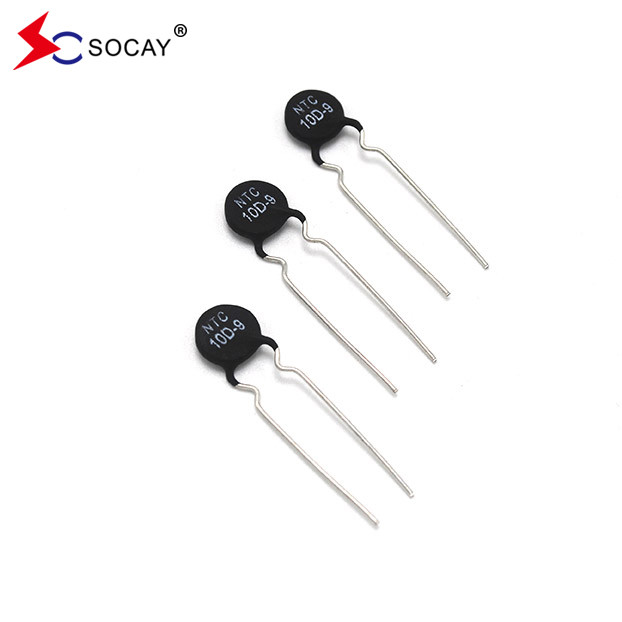

MF72-SCN10D-9 Negative Temperature Coefficient Thermistor For Transformer Adapter 1





MF72-SCN10D-9 Negative Temperature Coefficient Thermistor For Transformer Adapter 2



MF72-SCN10D-9 Negative Temperature Coefficient Thermistor For Transformer Adapter 3



Part Number Type of L Quantity (pcs/bag)
MF72-SCN10D-9 Lshort 1000
  Llong 500







Item Test conditions / Methods Test Result

Tensile Strength

of Terminals

 Fasten body with a Load Applied to each lead 3.0Kg for 1sec. No break out and damage

Bending

Strength of

Terminals

 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. More than 95% solder ability
Temp. Cycle Test

(-40℃×→+25℃×3min) × 5Cycles

(-85℃×→+25℃×3min) × 5Cycles

 ∣ΔR/R∣≤ ±20 %
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hours ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700V

R≥500MΩ





NTC Working Principle



Connected in series on the circuit, at room temperature, NTC resistance value is large, in the moment the circuit is connected, can play a current limiting role; when the circuit works normally, NTC due to the temperature rise caused by passing current, at this time the resistance value drops, will not affect the normal operation of the circuit.
