10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load

2000PCS / 1000PCS
MOQ
Negotiable
Price
10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load
Features Gallery Product Description Request A Quote
Features
Specifications
Item: NTC Thermistor
Dimension: Ф5mm
R25: 10Ω
Imax: 0.7A
Resistance Under Load: 771mΩ
δ: 6mW/℃
τ: 20 Secs.
C: 47μF
Storage Temperature Range: -10 To +40 ℃
Highlight:

10Ω Negative Temp Coefficient Thermistor

,

NTC Negative Temp Coefficient Thermistor
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: MF72-SCN10D-5
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: AMMO packing bulk
Delivery Time: 5-8 work days
Product Description

10Ω Negative Temperature Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load



DATASHEET:  MF72-SCN10D-5_v2105.1.pdf



Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

  R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(uF)
MF72-SCN10D-5 10 0.7 771 6 20 47








Features:

  • RoHS & Halogen Free (HF) compliant
  • Body size: φ5mm
  • Radial lead resin coated
  • High power rating
  • Wide resistance range
  • Cost effective
  • Operating temperature range: -40~+200℃
  • Agency recognition: UL /cUL/RoHS





Selection Method



Zero power resistance based on maximum operating ambient temperature.
The maximum steady-state current at the maximum ambient temperature is greater than the customer's maximum long-term operating current, with a margin.





Applications:



Switching power supplies, adapters, PD fast chargers,electronic motors, etc.





Storage Conditions of Products:

u Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

u Period of Storage: 1 year.

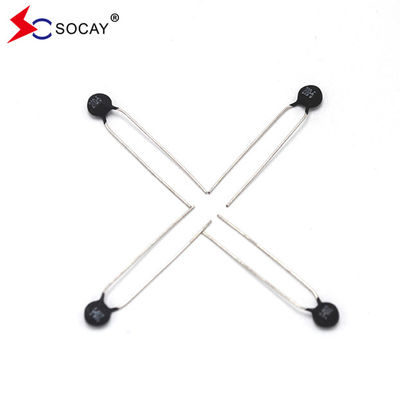

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load 0

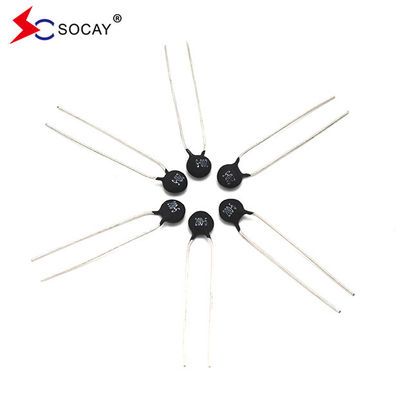

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load 1





Item Test conditions / Methods Test Result

Tensile Strength

of Terminals

 Fasten body with a Load Applied to each lead 3.0Kg for 1sec. No break out and damage

Bending

Strength of

Terminals

 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. More than 95% solder ability
Temp. Cycle Test

(-40℃×→+25℃×3min) × 5Cycles

(-85℃×→+25℃×3min) × 5Cycles

 ∣ΔR/R∣≤ ±20 %
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hours ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700V R≥500MΩ

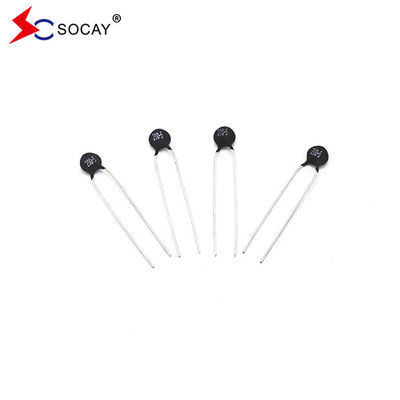

10Ω NTC Negative Temp Coefficient Thermistor MF72-SCN10D-5 771mΩ Resistance Under Load 2
