Home /Products/NTC Thermistor/MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant

MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant

1000PCS / 500PCS
MOQ
Negotiable
Price
MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф11mm
R25: 5Ω
Imax: 4A
Resistance Under Load: 156mΩ
δ: 13mW/℃
τ: 45 Secs.
Storage Temperature Range: -10 To +40 ℃
Highlight:

NTC 5D-11 Thermistor

,

RoHS NTC 5D-11 Thermistor
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: MF72-SCN5D-11
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

Fast Delivery Time MF72-SCN5D-11 Resistance at 25℃ 5Ω±20% NTC Thermistor 156mΩ 220μF



DATASHEET:  MF72-SCN5D-11_v2105.1.pdf



Part Number

Resistance

at 25℃

±20%

Max.

Permissible

Working

Current

Resistance

under Load

(mΩ)

Dissipation

Factor

Thermal

Time

Constant

Maximum permissible capacitance

@240Vac

  R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(μF)
MF72-SCN5D-11 5 4 156 13 45 220

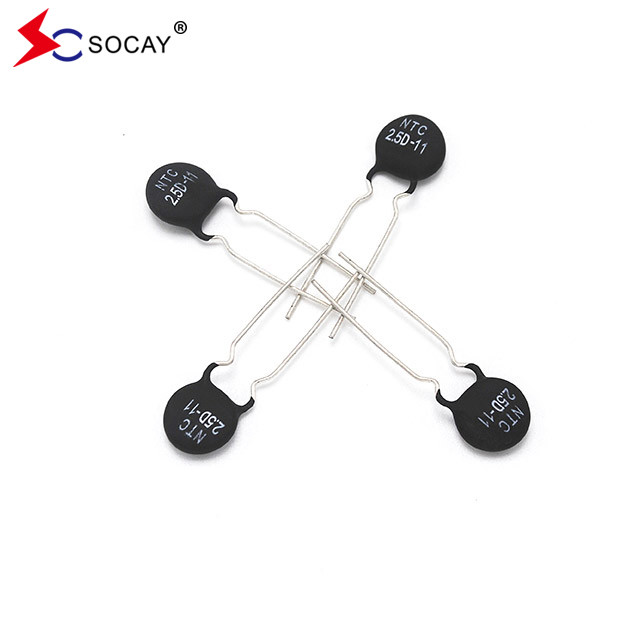

MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant 0


Features:

  • RoHS & Halogen Free (HF) compliant
  • Body size: φ11mm
  • Radial lead resin coated
  • High power rating
  • Wide resistance range
  • Cost effective
  • Operating temperature range: -40~+200℃
  • Agency recognition: UL /cUL/RoHS








Applications:

u Switch mode power supply

u Electric motor

u Transformer

u Adapter

u Projector

u Halogen lamp

u LED driver circuit







Storage Conditions of Products:

u Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.

Relative Humidity: ≤ 75%RH.

Keep away from corrosive atmosphere and sunlight.

u Period of Storage: 1 year.

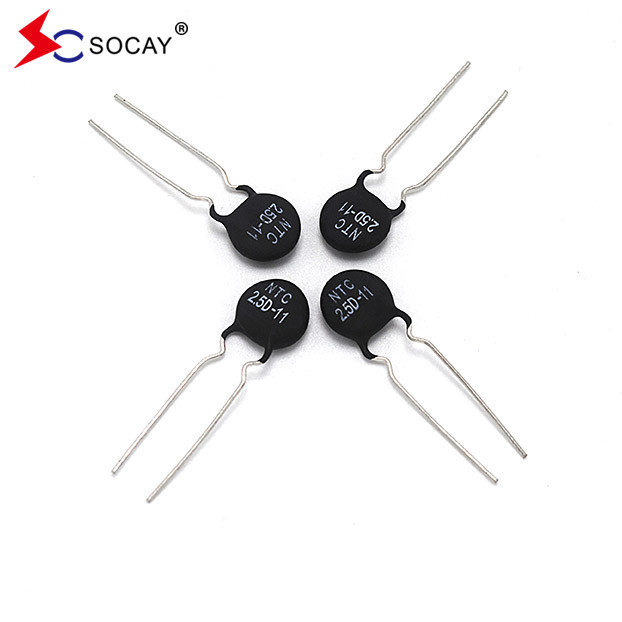

MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant 1





MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant 2



MF72-SCN5D-11 NTC 5D-11 Thermistor 156mΩ 220μF RoHS compliant 3



Part Number Type of L Quantity (pcs/bag)
MF72-SCN5D-11 Lshort 1000
  Llong 500







Item Test conditions / Methods Test Result

Tensile Strength

of Terminals

 Fasten body with a Load Applied to each lead 3.0Kg for 1sec. No break out and damage

Bending

Strength of

Terminals

 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. More than 95% solder ability
Temp. Cycle Test

(-40℃×→+25℃×3min) × 5Cycles

(-85℃×→+25℃×3min) × 5Cycles

 ∣ΔR/R∣≤ ±20 %
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hours ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700V R≥500MΩ





Tag:

NTC Power Thermistor

Negative Temperature Coefficient Thermistor

NTC 5D-11 Thermistor
