SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range

1000
MOQ
USD0.01-0.25/piece
Price
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф11mm
NTC R25: 20Ω
Imax（A）: 2A
Resistance Under Load: 613mΩ
δ（mW/℃）: 14mW/℃
τ（Secs.）: 52Secs.
Capacitance: 220μF
Basic Infomation
Place of Origin: Shenzhen,Guangdong,China
Brand Name: SOCAY
Certification: UL,REACH,ROHS,ISO
Model Number: MF72-SCN20D-11
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Product Description

SOCAY Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range


DATASHEET:MF72-SCN20D-11_v2105.1.pdf



1.

Electrical characteristics:
Part Number Resistance
at 25℃
±20%		 Resistance
under Load
(mΩ)		 Max. Permissible
Working
Current		 Dissipation
Factor



Maximum
permissible
capacitance
@240Vac

 Thermal
Time
Constant
R25(Ω) (mΩ) Imax(A) δ(mW/℃) C(uF) τ(Sec.)
MF72-SCN20D-11 20 613 2 14 220 52

2.

Features: Applications: Storage Conditions of Products:



  1. Period of Storage: 1 year.

      2.Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.
Relative Humidity:≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.
  1.  power supply.
  2. Adapter.
  3. Electric motor.
  4. Transformer.
  5. Halogen lamp.
  6. Projector.
  7. Switch mode
  8. LED driver circuit.
  1. Operating temperature range: -40~+200℃.
  2. RoHS & Halogen Free (HF) compliant.
  3. Body size: Ф11mm.
  4. Cost effective.
  5. Radial lead resin coated.
  6. Wide resistance range.
  7. High power rating.

3.

Part Number Code



MF72  SCN  20D  -  11

(1)       (2)     (3)      (4)



(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 20D: Zero Power Resistance at 25℃(R25): 20=20Ω

(4) Body Size: 11=Ф11mm

4.

Maximum Power Rating(Pmax)



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 0



5.Packing:



MF72-SCN20D-11 Quantity (pcs/bag)
L short 1000
L long 500



6.

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 1

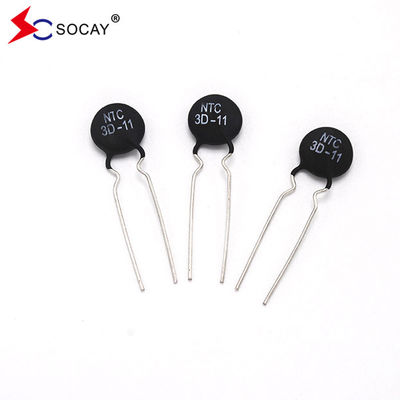

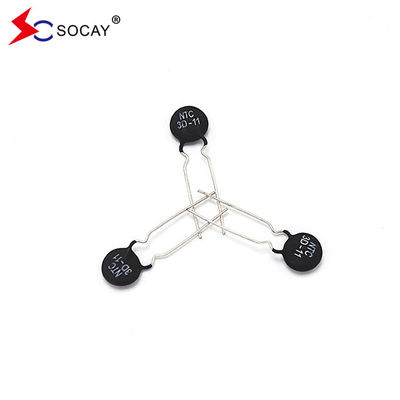

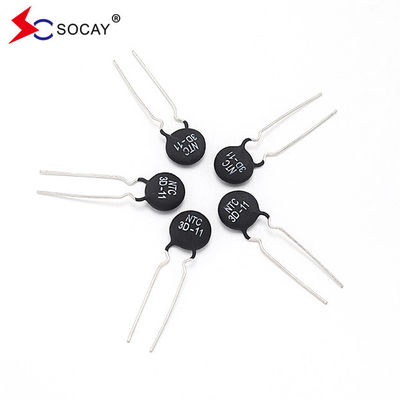

7.Product Display:



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 2SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 3SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 4SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 5SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 6SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 7

Other Hot Product:



1.GDT

2.NTC Thermistor

3.MOV/MLV

4.PPTC Fuse

5. TVS Diodes

6.SPG





8.Company Profile:



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 8SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 9SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 10SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 11SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 12SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 13SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 14

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 15



9.Shipping:

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 16



FAQ:



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 17



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN20D-11 20Ω 11mm Wide Resistance Range 18
