Home /Products/NTC Thermistor/SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range

1000
MOQ
USD0.01-0.25/piece
Price
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф9mm
NTC R25: 22Ω
Imax（A）: 1A
Resistance Under Load: 950mΩ
δ（mW/℃）: 11mW/℃
τ（Secs.）: 30Secs.
Capacitance: 110μF
Basic Infomation
Place of Origin: Shenzhen,Guangdong,China
Brand Name: SOCAY
Certification: UL,REACH,ROHS,ISO
Model Number: MF72-SCN22D-9
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Product Description

SOCAY Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range
DATASHEET:MF72-SCN22D-9_v2105.1.pdf



Features:
  1. Operating temperature range: -40~+200℃.
  2. Wide resistance range.
  3. High power rating.
  4. Radial lead resin coated.
  5. Body size: Ф5mm.
  6. Cost effective.
Applications:
  1. LED driver circuit.
  2. Projector.
  3. Halogen lamp.
  4. Adapter.
  5. Transformer.
  6. Switch mode power supply.
  7. Electric motor.
Storage Conditions of Products:
  1. Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.
Relative Humidity:≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.


       2.Period of Storage: 1 year.


Part Number Code:

MF72 SCN 2.5D - 9
  (1)      (2)   (3)    (4)

(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 16D: Zero Power Resistance at 25℃(R25).
(4) Body Size: 9=Ф9mm.



Electrical Characteristics:
Resistance at 25℃ ±20%R25(Ω)22(Ω)
Max. Permissible Working CurrentImax(A)1A
Resistance under Load (mΩ)(mΩ)950mΩ
Dissipation Factorδ(mW/℃)11mW/℃
Thermal Time Constantτ(Sec.)30Sec.
permissible capacitance @240VacC(uF)110uF




Maximum Power Rating(Pmax)


SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 0




MF72-SCN22D-9 Packing Specifiction Quantity (pcs/bag)
L short1000
L long500




Structure and Dimensions (Unit: mm)



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 1



D maxT maxP maxFHLshort/LlongdType
10.55.53.07.5±0.5--7±1/20±10.75S
10.55.53.07.5±0.516.5±14±1/20±10.75 K/V/D







SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 2

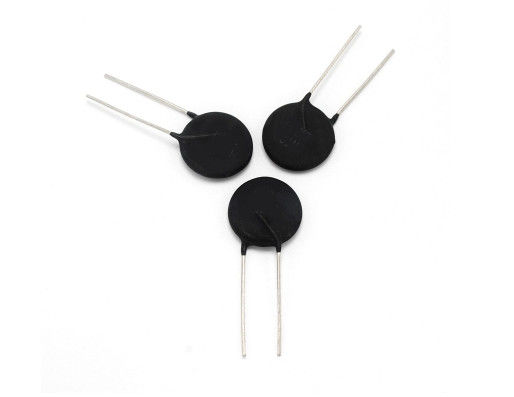

Product  Pictures:

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 3
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 4
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 5SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 6

Company Profile:

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 7SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 8SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 9SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 10SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 11SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 12SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 13
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 14

Logistics services​:
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 15

FAQ:

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 16





SOCAY Temperature Senso Power NTC Thermistor MF72-SCN22D-9 22Ω 9mm Wide Resistance Range 17
