SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range

500
MOQ
USD0.01-0.25/piece
Price
SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф9mm
NTC R25: 16Ω
Imax（A）: 1A
Resistance Under Load: 802mΩ
δ（mW/℃）: 11mW/℃
τ（Secs.）: 31Secs.
Capacitance: 110μF
Basic Infomation
Place of Origin: Shenzhen,Guangdong,China
Brand Name: SOCAY
Certification: UL,REACH,ROHS,ISO
Model Number: MF72-SCN16D-9
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Product Description

SOCAY Power NTC Thermistor MF72-SCN16D-9 16Ω 9mm Wide Resistance Range


DATASHEET:MF72-SCN16D-9_v2105.1.pdf



Features:



  1. Operating temperature range: -40~+200℃.
  2. Wide resistance range.
  3. High power rating.
  4. Radial lead resin coated.
  5. Body size: Ф5mm.
  6. Cost effective.

Applications:

  1. LED driver circuit.
  2. Projector.
  3. Halogen lamp.
  4. Adapter.
  5. Transformer.
  6. Switch mode power supply.
  7. Electric motor.

Storage Conditions of Products:

  • Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.
Relative Humidity:≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.

  • Period of Storage: 1 year.



Part Number Code:

MF72 SCN 2.5D - 9

   (1)     (2)    (3)   (4)



(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 16D: Zero Power Resistance at 25℃(R25).

(4) Body Size: 9=Ф9mm.







Electrical Characteristics
Resistance at 25℃ ±20% R25(Ω) 2.5(Ω)
Max. Permissible Working Current Imax(A) 4A
Resistance under Load (mΩ) (mΩ) 128mΩ
Dissipation Factor δ(mW/℃) 11mW/℃
Thermal Time Constant τ(Sec.) 35Sec.
permissible capacitance @240Vac C(uF) 110uF







Maximum Power Rating(Pmax)



SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 0





MF72-SCN2.5D-9 Packing Specifiction  Quantity (pcs/bag)
L short 1000
L long 500





Structure and Dimensions (Unit: mm)





SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 1


D max T max P max F H Lshort/Llong d Type
10.5 5.5 3.0 7.5±0.5 -- 7±1/20±1 0.75 S
10.5 5.5 3.0 7.5±0.5 16.5±1 4±1/20±1 0.75  K/V/D





SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 2

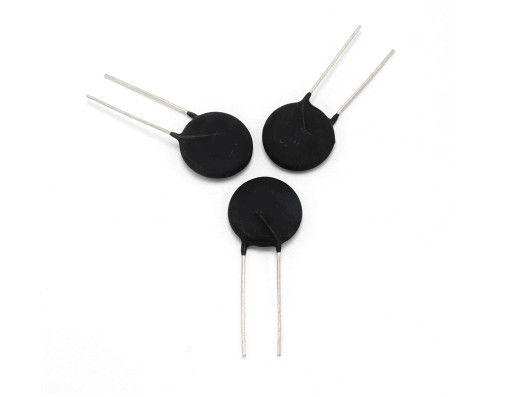

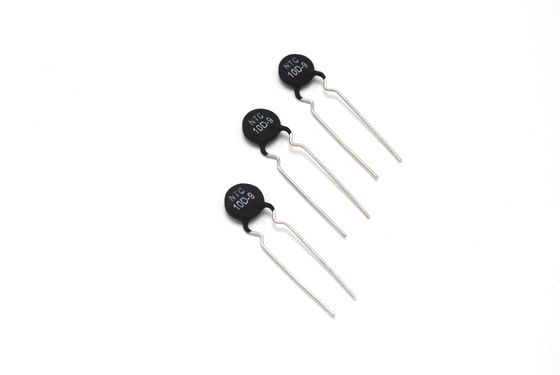

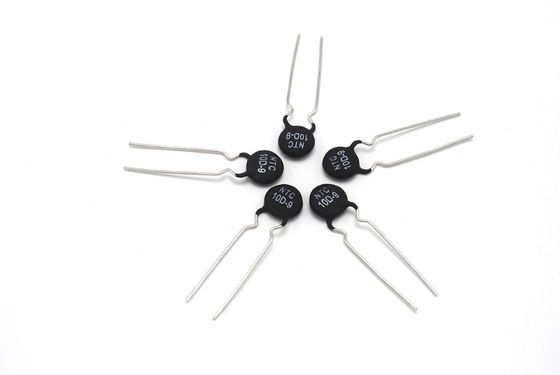

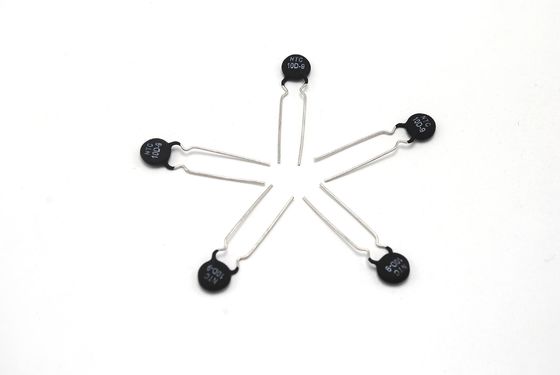

Product  Pictures:



SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 3

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 4

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 5SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 6



Company Profile:



SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 7SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 8SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 9SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 10SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 11SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 12SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 13

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 14



Logistics services​:

SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 15



FAQ:



SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 16





SOCAY Temperature Senso Power NTC Thermistor MF72-SC16D-9 16Ω 9mm Wide Resistance Range 17
