SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range

1000
MOQ
USD0.01-0.25/piece
Price
SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф7mm
NTC R25: 8Ω
Imax（A）: 1A
Resistance Under Load: 539mΩ
δ（mW/℃）: 9mW/℃
τ（Secs.）: 28Secs.
Capacitance: 78μF
Basic Infomation
Place of Origin: Shenzhen,Guangdong,China
Brand Name: SOCAY
Certification: UL,REACH,ROHS,ISO
Model Number: MF72-SCN8D-7
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Bulk
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Product Description

SOCAY Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range


DATASHEET:MF72-SCN8D-7_v2105.1.pdf



Features:
  1. Operating temperature range: -40~+200℃.
  2. Wide resistance range.
  3. High power rating.
  4. Radial lead resin coated.
  5. Body size: Ф5mm.
  6. Cost effective.





Applications:
  1. LED driver circuit.
  2. Projector.
  3. Halogen lamp.
  4. Adapter.
  5. Transformer.
  6. Switch mode power supply.
  7. Electric motor.



Storage Conditions of Products:
  • Storage Conditions:

Storage Temperature: -10℃ ~ +40℃.
Relative Humidity:≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.
  • Period of Storage: 1 year.





Part Number Code



MF72  SCN  16D  -  5

(1)       (2)     (3)      (4)



(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 16D: Zero Power Resistance at 25℃(R25).

(4) Body Size: 5=Ф5mm.





Electrical Characteristics
Resistance at 25℃ ±20% R25(Ω) 8(Ω)
Max. Permissible Working Current Imax(A) 0.5A
Resistance under Load (mΩ) (mΩ) 1093mΩ
Dissipation Factor δ(mW/℃) 6mW/℃
Thermal Time Constant τ(Sec.) 18Sec.
permissible capacitance @240Vac C(uF) 47uF







Maximum Power Rating(Pmax)



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 0





Packing Specifiction Quantity (pcs/bag)
L short 1000
L long 500





Structure and Dimensions (Unit: mm)

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 1


D max T max P max F H Lshort/Llong d Type
8.0 4.5 3.0 5±0.5 -- 7±1/20±1 0.55 S
8.0 4.5 3.0 5±0.5 14.5±1 4±1/20±1 0.55  K/V/D





SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 2

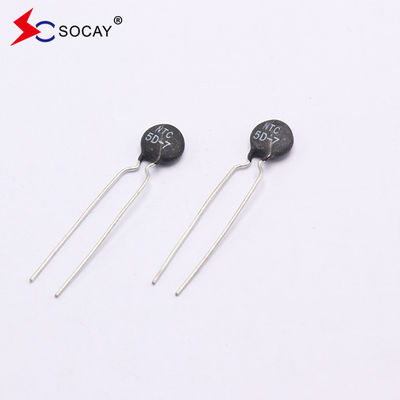

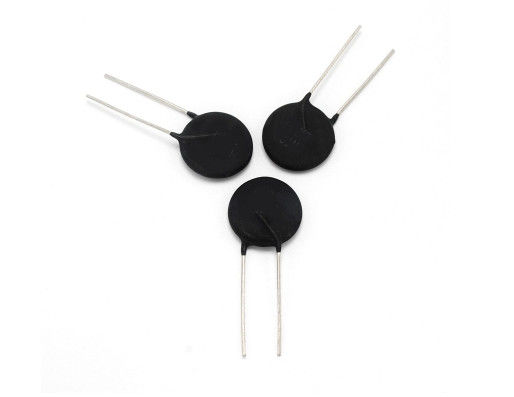

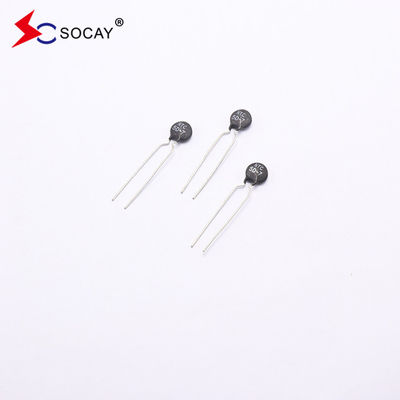

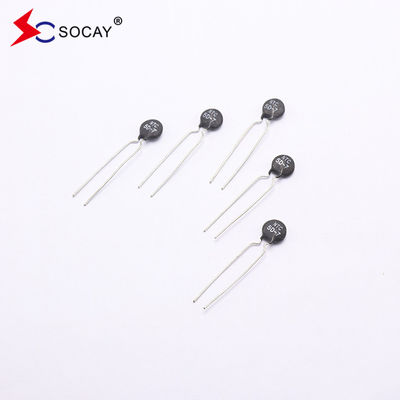

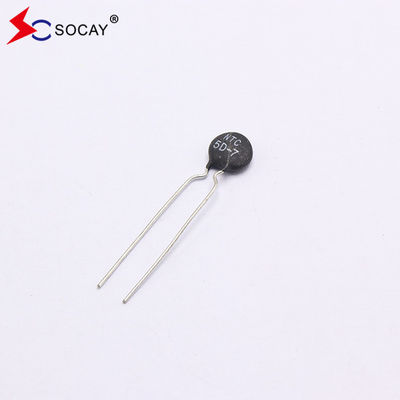

Product Display:



SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 3

SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 4SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 5SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 6SOCAY Temperature Senso Power NTC Thermistor MF72-SCN8D-7 8Ω 7mm Wide Resistance Range 7
