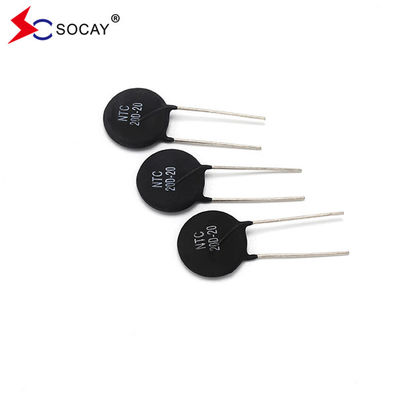

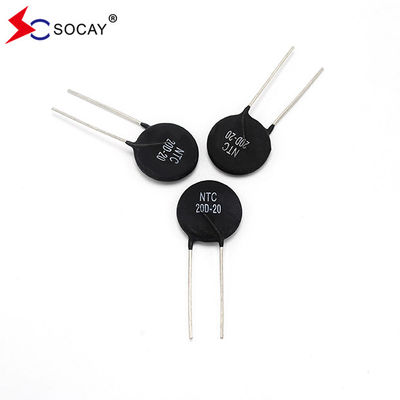

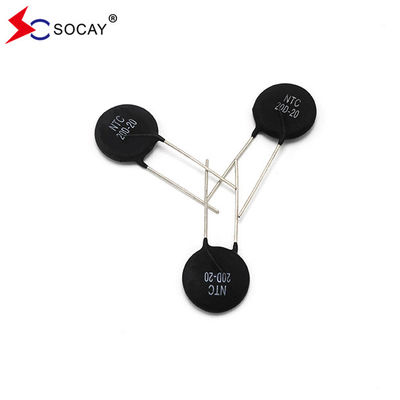

SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range

250PCS
MOQ
Negotiable
Price
SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф20mm
NTC R25: 20Ω
Imax（A）: 4A
Resistance Under Load: 194mΩ
δ（mW/℃）: 15mW/℃
τ（Secs.）: 60Secs.
Capacitance: 330μF
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: MF72-SCN20D-20
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range


DATASHEET:MF72-SCN20D-20_v2105.1.pdf



Features

Halogen-free RoHS (HF)

Body size: 13mm

Radial layer of lead pool

High power

Wide range of obstacles

Effectiveness

Your temperature: -40 ~+200 ℃

Agency approved: UL /cUL/RoHS

Recommended Applications Switch mode power supply
Electric motor
Transformer
Adapter
Projector
Halogen lam
LED driver circui

Storage Conditions of Products Storage Conditions:
Storage Temperature: -10℃ ~ +40℃. Relative Humidity:≤ 75%RH. Keep away from corrosive atmo
Period of Storage: 1 ye

Part Number Code SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 0
(1) MF72: MF72 Series.
(2) SCN: Socay NTC
(3) 10D: Zero Power Resistance at 25℃(R25):8
(4) Body Size: 13=Ф13mm


Electrical characteristics:

Part Number Resistance
at 25℃
±20%		 Max. Permissible
Working
Current		 Resistance
under Load
(mΩ)		 Dissipation
Factor		 Thermal
Time
Constant		 Maximum
permissible
capacitance
@240Vac
R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(uF)
MF72-SCN10D-9 8 4 194 15 60 330



SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 1



Maximum Power Rating(Pmax)



SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 2



Dimensions and Structure (Unit: mm)



SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 3

D max T max P max F H Lshort / Llong d Type
14.5 14.5 3 7.5±0.5 -- 7±1/20±1 0.75 S
14.5 14.5 3 7.5±0.5 20.5±1 4±1/20±1 0.75 K/V/D

Packing:

SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 4







Dependability​:

Item Test conditions / Meth Test Result
Tensile Strength
of Termin		 Fasten body with a Load Applied to each lead 3.0 No break out and damage
Bending
Strength of
Terminals		 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after
immersion in 25% rosin flux the solder ability ratio of lead wire surface
should more than 95%		 More than 95% so
Temp. Cycle Tes (-40℃×→+25℃×3min) × 5Cycles
(-85℃×→+25℃×3min) × 5Cycles		 ∣ΔR/R∣≤ ±20%
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hou ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700 R≥500MΩ

Product Display





SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 5SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 6SOCAY Power NTC Thermistor MF72-SCN20D-20 20Ω 20mm Imax Wide Resistance Range 7
