Home /Products/NTC Thermistor/SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range

SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range

250PCS
MOQ
Negotiable
Price
SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NTC Thermistor
Package Type: Ф13mm
NTC R25: 8Ω
Imax（A）: 4A
Resistance Under Load: 194mΩ
δ（mW/℃）: 15mW/℃
τ（Secs.）: 60Secs.
Capacitance: 330μF
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: MF72-SCN8D-13
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range


DATASHEET:MF72-SCN8D-13_v2105.1.pdf



Features SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 0

Recommended Applications SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 1

Storage Conditions of Products Storage Conditions:
Storage Temperature: -10℃ ~ +40℃. Relative Humidity:≤ 75%RH. Keep away from corrosive atmo
Period of Storage: 1 ye

Part Number Code SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 2
(1) MF72: MF72 Series.
(2) SCN: Socay NTC
(3) 10D: Zero Power Resistance at 25℃(R25):8
(4) Body Size: 13=Ф13mm






Electrical characteristics:

Part Number Resistance
at 25℃
±20%		 Max. Permissible
Working
Current		 Resistance
under Load
(mΩ)		 Dissipation
Factor		 Thermal
Time
Constant		 Maximum
permissible
capacitance
@240Vac
R25(Ω) Imax(A) (mΩ) δ(mW/℃) τ(Sec.) C(uF)
MF72-SCN10D-9 8 4 194 15 60 330



Maximum Power Rating(Pmax)



SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 3



Dimensions and Structure (Unit: mm)



SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 4

D max T max P max F H Lshort / Llong d Type
14.5 14.5 3 7.5±0.5 -- 7±1/20±1 0.75 S
14.5 14.5 3 7.5±0.5 20.5±1 4±1/20±1 0.75 K/V/D

Packing:

Part Number Type of L Quantity (pcs/bag)
MF72-SCN8D-13 Lshort 250
  Llong 250



Dependability​:

Item Test conditions / Meth Test Result
Tensile Strength
of Termin		 Fasten body with a Load Applied to each lead 3.0 No break out and damage
Bending
Strength of
Terminals		 Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite. No break out and damage
Solder Ability When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after
immersion in 25% rosin flux the solder ability ratio of lead wire surface
should more than 95%		 More than 95% so
Temp. Cycle Tes (-40℃×→+25℃×3min) × 5Cycles
(-85℃×→+25℃×3min) × 5Cycles		 ∣ΔR/R∣≤ ±20%
Humidity Test 45℃ 95%RH×1000 hours ∣ΔR/R∣≤ ±20 %
Load Life 6 AMP×1000 hou ∣ΔR/R∣≤ ±20 %
Insulation Test DC 700 R≥500MΩ

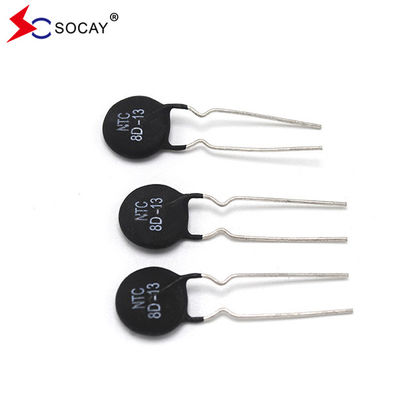

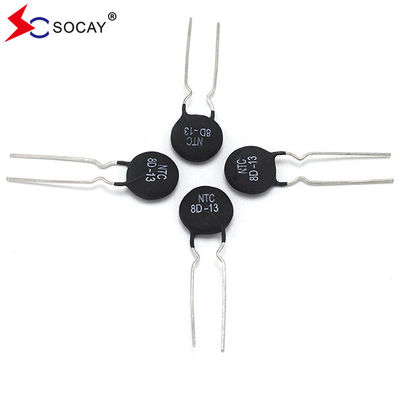

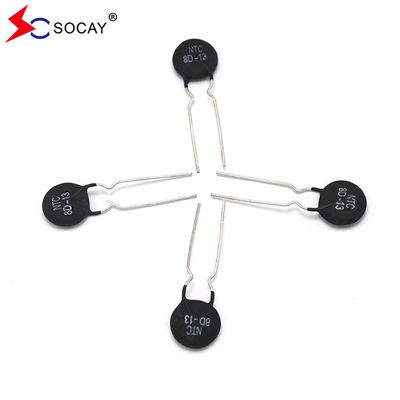

Product Display



SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 5SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 6

SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 7











Company Profile:

We are a manufacturer and supplier with over 20 years of experience in electronic components, as shown below,
1- ESD
2- TVS Diodes
3- PPTC Resettable Fuse
4- Gas Discharge Tube
5- NTC Themistor
6- Varistor,etc.

SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 8SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 9
SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 10SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 11
SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 12
SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 13SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 14SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 15SOCAY Power NTC Thermistor MF72-SCN8D-13 8Ω 13mm Imax Wide Resistance Range 16



FAQ



Q: May we get some samples?

A: Of course,samples are available.

Q: What is product lead time?
For GDT, TVS, and ESD, the lead time will 1-2 weeks. For TSS, MOV, MLV, NTC, and PPTC, the lead time 2-3 weeks. According your specific requirements, we will further confirm the accurate lead time.


Q: Do you support customization?
A: Of course, We do.





Please feel free to contact us if you have any question.

Contact Person: Aria Wei
Tel/WhatsApp/Wechat/Skype: +8615778830733
Email Address: sc72@socay.com
Website: www.socay.com / www.socay.en.alibaba.com

Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
