Name: SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: MF72-SCN10D-9
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: NTC Thermistor

Package Type: Ф9mm

NTC R25: 10Ω

Imax（A）: 2A

Resistance Under Load: 458mΩ

δ（W/℃）: 11m

τ（Secs.）: 32Secs.

Capacitance: 110μF

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: MF72-SCN10D-9

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

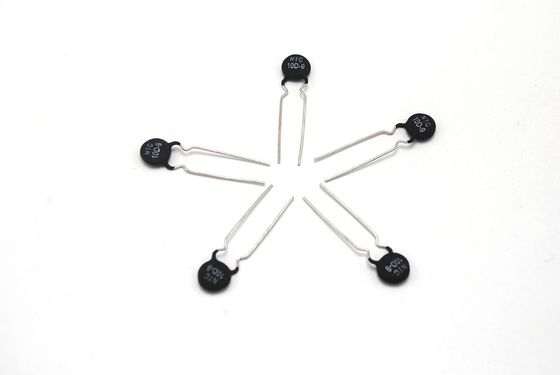

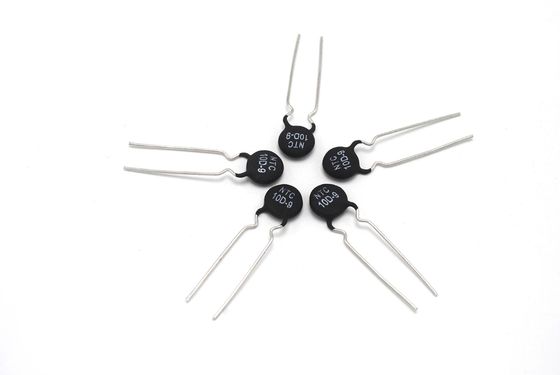

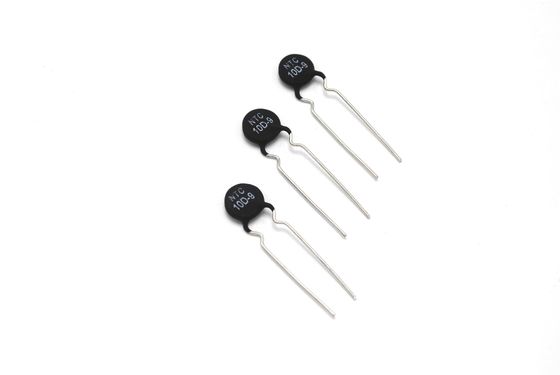

Gallery

SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range

Product Description

SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range

DATASHEET: MF72-SCN10D-9_v2105.1.pdf

Features	RoHS & Halogen Free (HF) compl Body size: Ф9mm Radial lead resin coate High power ratin Wide resistance range Cost effective Operating temperature range: -40~+200℃ Agency recognition: UL /cUL/RoHS








Recommended Applications	Switch mode power supply Electric motor Transformer Adapter Projector Halogen lam LED driver circui







Storage Conditions of Products	Storage Conditions: Storage Temperature: -10℃ ~ +40℃. Relative Humidity:≤ 75%RH. Keep away from corrosive atmo Period of Storage: 1 year

Electrical characteristics:

Part Number	Resistance at 25℃ ±20%	Max. Permissible Working Current	Resistance under Load (mΩ)	Dissipation Factor	Thermal Time Constant	Maximum permissible capacitance @240Vac
Part Number	R25(Ω)	Imax(A)	(mΩ)	δ(mW/℃)	τ(Sec.)	C(uF)
MF72-SCN10D-9	10	2	458	11	32	110

Part No. Code:

SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range 0

(1) MF72: MF72 Series.

(2) SCN: Socay NTC.

(3) 2.5D: Zero Power Resistance at 25℃(R25): 10=10Ω.

(4) Body Size: 9=Ф9mm.

Maximum Power

SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range 1

Dimensions and Structure (Unit: mm)

SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range 2

D max	T max	P max	F	H	Lshort / Llong	d	Type
10.5	5.5	3	7.5±0.5	--	7±1/20±1	0.75	S
10.5	5.5	3	7.5±0.5	16.5±1	7±1/20±1	0.75	K/V/D

Packing:

Part Number	Type of L	Quantity (pcs/bag)
MF72-SCN10D-11	Lshort	2000
	Llong	1000

Dependability:

Item	Test conditions / Meth	Test Result
Tensile Strength of Termin	Fasten body with a Load Applied to each lead 3.0	No break out and damage
Bending Strength of Terminals	Fixed body hand 1.0kg on one terminal bend 90 then back again oppsite.	No break out and damage
Solder Ability	When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%	More than 95% so
Temp. Cycle Test	(-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) × 5Cycles	∣ΔR/R∣≤ ±20%
Humidity Test	45℃ 95%RH×1000 hours	∣ΔR/R∣≤ ±20 %
Load Life	6 AMP×1000 hou	∣ΔR/R∣≤ ±20 %
Insulation Test	DC 700	R≥500MΩ

SOCAY Power NTC Thermistor MF72-SCN10D-9 10Ω 9mm Imax Wide Resistance Range 3

Company Profile:

We are a manufacturer and supplier with over 20 years of experience in electronic components, as shown below,

1- ESD

2- TVS Diodes

3- PPTC Resettable Fuse

4- Gas Discharge Tube

5- NTC Themistor

6- Varistor,etc.

FAQ

Q: May we get some samples?

A: Of course,samples are available.

Q: What is product lead time?
For GDT, TVS, and ESD, the lead time will 1-2 weeks. For TSS, MOV, MLV, NTC, and PPTC, the lead time 2-3 weeks. According your specific requirements, we will further confirm the accurate lead time.

Q: Do you support customization?
A: Of course, We do.

Please feel free to contact us if you have any question.

Contact Person: Aria Wei
Tel/WhatsApp/Wechat/Skype: +8615778830733
Email Address: sc72@socay.com
Website: www.socay.com / www.socay.en.alibaba.com

Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
