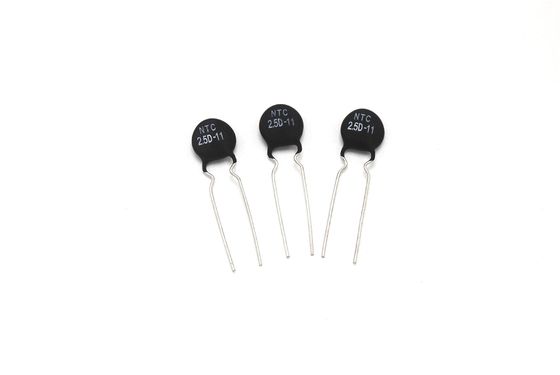

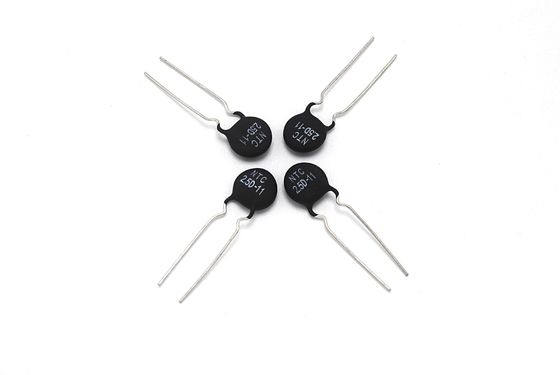

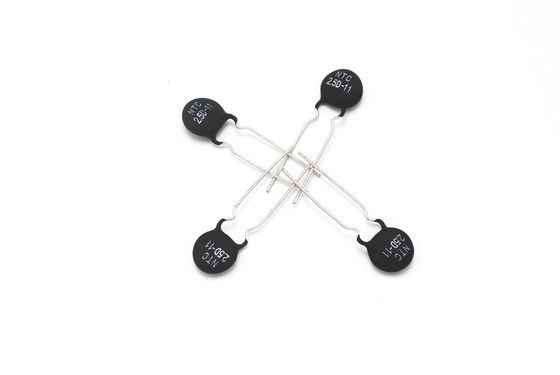

SOCAY Power NTC Thermistor MF72-SCN2.5D-11 2.5Ω Imax Wide Resistance Range
DATASHEET: MF72-SCN2.5D-11_v2105.1.pdf
Classification
RoHS & Halogen Free (HF) compliant
Body size: Ф11mm
Radial lead resin coating
High rated power
Wide resistance range
Cost effectiveness
Operating temperature range: -40~+200℃
Certificate: UL /cUL/RoHS
Applications:
Switch mode power supply
Power operated
Transformer
Adapter
Projector
Halogen lamp
LED driver circuit
Storage Conditions of Products:
Storage Conditions:
Storage Temperature: -10℃ ~ +40℃.
Relative Humidity: ≤ 75%RH.
Keep away from corrosive atmosphere and sunlight.
Period of Storage: 1 year
lectrical Characteristics
| Part Number |
Resistance
at 25℃
±20%
|
Max.
Permissible
Working
Current
|
Resistance
under Load
(mΩ)
|
Dissipation
Factor
|
Thermal
Time
Constant
|
Maximum permissible capacitance
@240Vac
|
| |
R25(Ω) |
Imax(A) |
(mΩ) |
δ(mW/℃) |
τ(Sec.) |
C(μF) |
| MF72-SCN2.5D-13 |
2.5 |
5 |
95 |
13 |
43 |
220 |
Part Number Code
(1) MF72: MF72 Series.
(2) SCN: Socay NTC.
(3) 2.5D: Zero Power Resistance at 25℃(R25): 2.5=2.5Ω.
(4) Body Size: 11=Ф11mm.
Maximum Power
Structure and Dimensions (Unit: mm)
Packing Specifiction
| Part Number |
Type of L |
Quantity (pcs/bag) |
| MF72-SCN10D-11 |
Lshort |
1000 |
| |
Llong |
500 |
Reliability
| Item |
Test conditions / Metho |
Test Result |
| Tensile Strength of Terminals |
Fasten body with a Load Applied to each lead 3.0Kg |
No break out and |
| Bending Strength of Terminals |
Fixed body hand 1.0kg on one terminal bend 90 then back again oppsit. |
No break out and |
| Solder Ability |
When the Lead wire was dipped into bath 0f 235 ± 5 ℃ for 3 seconds after immersion in 25% rosin flux the solder ability ratio of lead wire surface should more than 95%. |
More than 95% solder |
| Temp. Cycle Test |
-40℃×→+25℃×3min) × 5Cycles (-85℃×→+25℃×3min) |
∣ΔR/R∣≤ ±20 % |
| Humidity Test |
45℃ 95%RH×1000 hou |
∣ΔR/R∣≤ ±20 % |
| Load Life |
6 AMP×1000 hour |
∣ΔR/R∣≤ ±20 % |
| Insulation Test |
DC 700 |
R≥500MΩ |
