Component Name: Multilayer Chip Varistor

Component Package: SMD1210

Maximum DC Operating Voltage: 47V

Vv (Min.): 56.4V

Vv (Max.): 70.5V

Maximum Peak Current Across The Varistor: 155V

Maximum Peak Current: 250A

Wmax: 0.8J

Highlight:

SMD 1210 Multilayer Chip Varistor

Multilayer Chip Varistor 47V DC

Multilayer Zinc Oxide Varistor

Basic Infomation

Place of Origin: Shenzhen Guangdong China

Brand Name: SOCAY

Certification: REACH RoHS ISO

Model Number: SV1210N470G0A

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

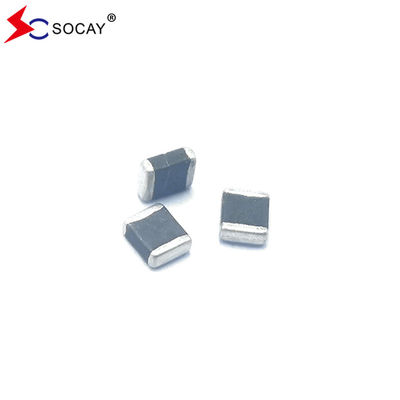

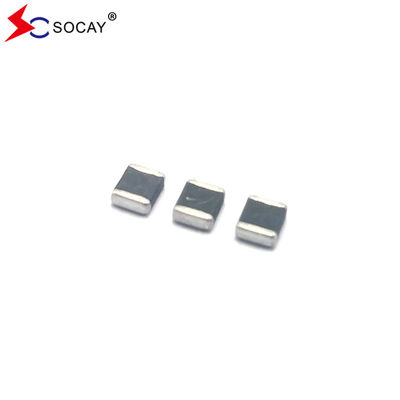

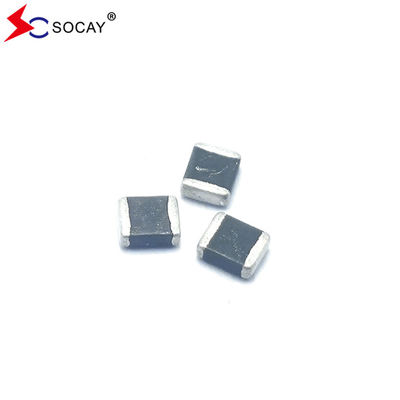

SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC

Product Description

1210 Type SMD Zinc Oxide Varistor SV1210N470G0A SOCAY Original Factory Supply

SMD Zinc Oxide Varistor DATASHEET: SV1210N470G0A_v209.1.pdf

Description:
The SMD Zinc Oxide Varistor SV1210N470G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those speciﬁed in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1210N470G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

SMD Zinc Oxide Varistor Electrical Characteristics (25±5℃):

Symbol	Minimum	Typical	Maximum	Units
VRMS	—	—	37	V
VDC	—	—	47	V
VV	56.4	—	70.5	V
VC	—	—	155	V
Imax	—	—	250	A
Wmax	—	—	0.8	J

VRMS - SMD Zinc Oxide Varistor Maximum AC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VDC - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV - Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”.

VC - Maximum peak current across the varistor with 8/20μs waveform and 5A pulse current.

Imax - Maximum peak current which may be applied with 8/20μs waveform without device failure.

Wmax - Maximum energy which may be dissipated with the 10/1000μs waveform without device failure.

SMD Zinc Oxide Varistor Features:

Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements
Fast response (<1ns)
Low leakage current, low clamping voltage
Suitable for reflow, wave soldering and hot air hand soldering

SMD Zinc Oxide Varistor Applications:

Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.

SMD Zinc Oxide Varistor Construction & Dimensions:
SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC 0

Size EIA (EIAJ)	Length (L)		Width (W)		Thickness (T)
	Inches	Millimeters	Inches	Millimeters	Inches	Millimeters
1210 (3225)	0.126±0.012	3.20±0.30	0.098±0.012	2.50±0.30	0.098 Max	2.50 Max

General Technical Data:

Operating Temperature	-55~125℃
Storage Temperature	-55~150℃
Response Time	<1 ns
Solderability	245±5℃, 3±1sec
Solder Leach Resistance	260±5℃, 10±1sec

Soldering Recommendations:

Preheat
- The temperature rising speed is suggested to be 2~4 ℃ /s
- Appropriate preheat time will be from 60 to 120 seconds.
Heating
- Careful about sudden rise in temperture as it may worser the solder ability.
- Set the peal temperature in the range from 215 ℃ to 225 ℃.
Cooling
- Careful about slow cooling as it may cause the position shift of component.

Quantity of Products in The Taping Package:

SIZE EIA (EIAJ)

1210

(3225)

Standard Packing Quantity (PCS / reel)

3,000

SMD 1210 Type Multilayer Chip Varistor SV1210N470G0A Zinc Oxide Varistor 47V DC 2
