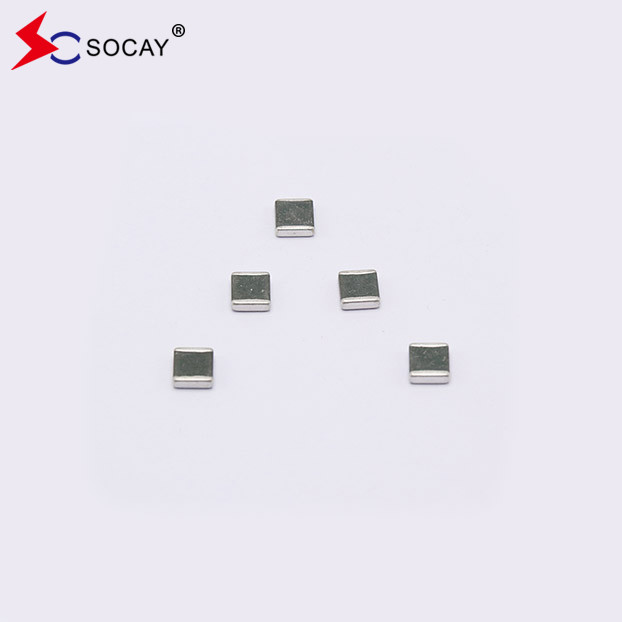

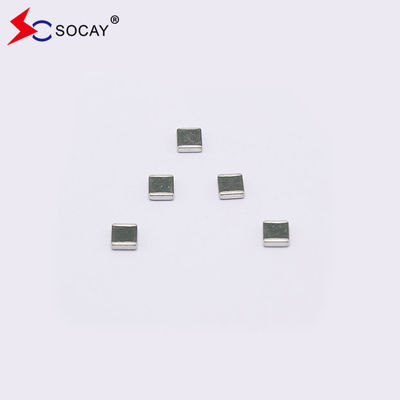

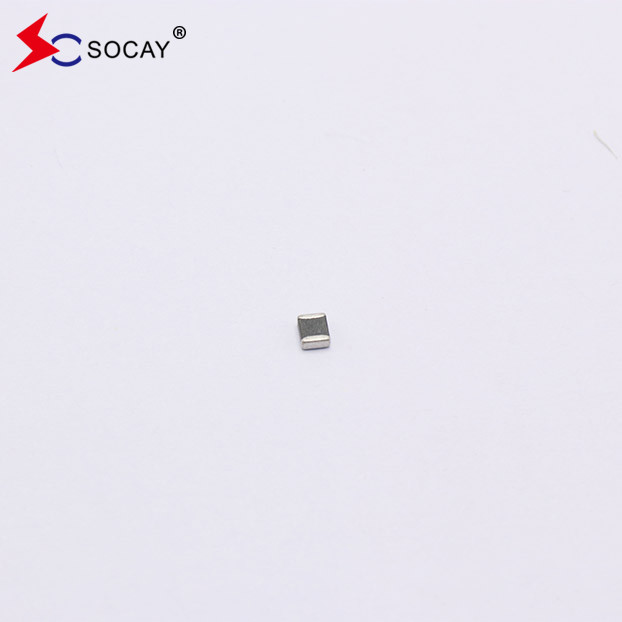

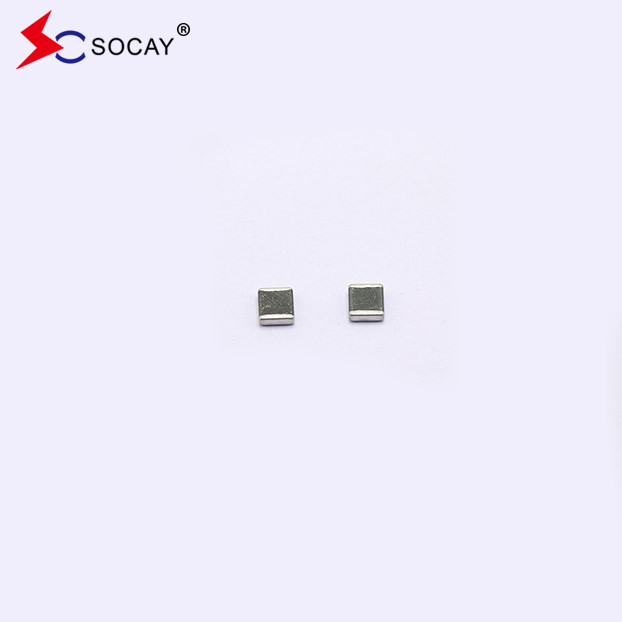

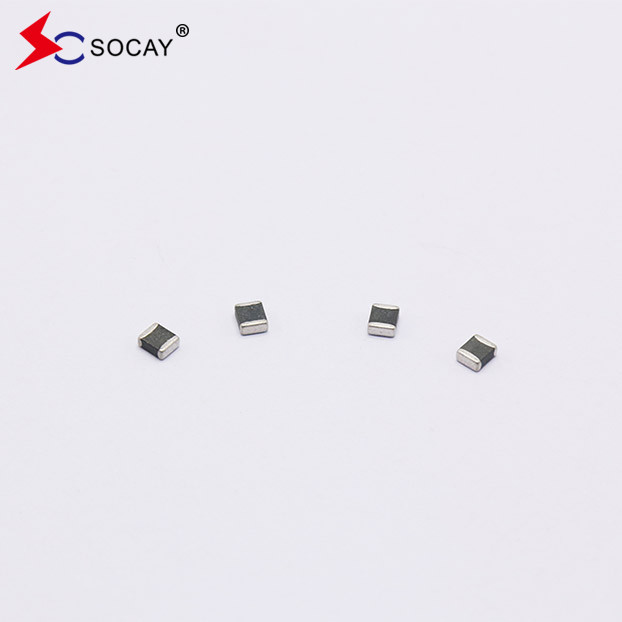

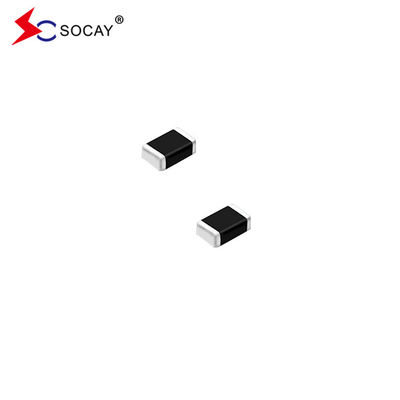

SOCAY Multilayer Chip Varistor SMD0402 Package SV0402E5R5G1B Max VDC 5.5V
Multilayer Chip Varistor DATASHEET: SV0402E5R5G1B_v89.1.pdf
Description:
The Multilayer Chip Varistor SV0402E5R5G1B is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV0402E5R5G1B is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.
Electrical Characteristics (25±5℃):
| Symbol |
Minimum |
Typical |
Maximum |
Units |
| VDC |
— |
— |
5.5 |
V |
| VV |
7.6 |
— |
12 |
V |
| VC |
— |
— |
25 |
V |
| CP |
— |
5 |
— |
pF |
VDC – Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.
VV – Voltage across the device measure at 1mA DC current.
Equivalent to VB “breakdown voltage”
VC – Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.
CP – Device capacitance measured with zero volt bias 1Vrms at 1MHz. The pF is ±30%.
Multilayer Chip Varistor Construction & Dimensions:
| Size EIA (EIAJ) |
0402
(1005)
|
| Symbol |
Inches |
Millimeters |
| L |
0.038±0.005 |
0.96±0.12 |
| W |
0.019±0.003 |
0.48±0.0.07 |
| T |
0.020±0.004 |
0.50±0.10 |
| C |
0.010±0.006 |
0.25±0.15 |
General Technical Data:
| Operating Temperature |
-40 ~ +85ºC |
|
| Storage Temperature |
-40 ~ +85ºC |
|
| Response Time |
<1 ns |
|
| Solderability |
245±5ºC, 3±1sec |
|
| Solder leach resistance |
260±5ºC, 10±1sec |
|
| Taping Package Storage Condition |
Storage Temperature |
5 ~ 40ºC |
|
| |
Relative Humidity |
To 65% |
|
| |
Storage Time |
12 Months max |
|
Environmental Performance:
| Item |
Specifications |
Test Condition |
|
| Bias Humidity |
△VV / VV ≤ ±10 % |
90%RH, 40ºC, Working Voltage, 1000 hrs |
|
| Thermal Shock |
△VV / VV ≤ ±10 % |
-40ºC to 85ºC, 30 min. cycle, 5 cycles |
|
| Full Load Voltage |
△VV / VV ≤ ±10 % |
Working Voltage, 85ºC,1000 hrs |
|
Quantity of Products in the Taping Package:
|
SIZE EIA
(EIAJ)
|
0402
(1005)
|
| Standard Packing Quantity (PCS / reel) |
10,000 |
