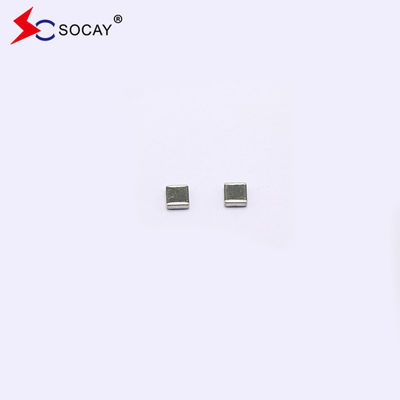

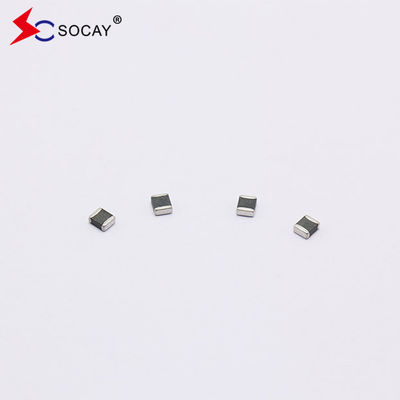

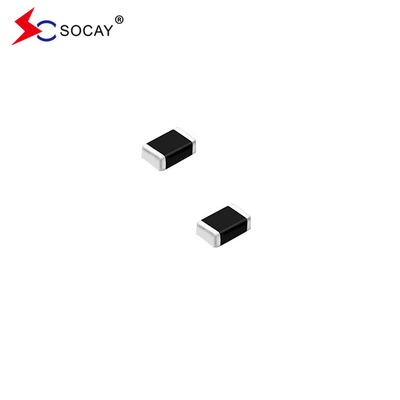

Multilayer Chip Varistor SV0402E9R0G0B SMD Type Zinc Oxide Based Ceramic Chip

Multilayer Chip Varistor DATASHEET: SV0402E9R0G0B_v89.1.pdf

Description:
The most used voltage limiting device is the varistor MOV/MLV, which is mainly made of zinc oxide and a variety of trace metal oxides, which are mixed and moulded.

Electrical Characteristics (25±5℃):

Symbol	Minimum	Typical	Maximum	Units
VDC	—	—	9	V
VV	11	—	17	V
VC	—	—	35	V
CP	—	5	—	pF

VDC – Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.
VV – Voltage across the device measure at 1mA DC current.
Equivalent to VB “breakdown voltage”
VC – Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.
CP – Device capacitance measured with zero volt bias 1Vrms at 1MHz. The pF is ±30%.

Multilayer Chip Varistor Applications:

Power protection, Switches, POS machines, Lightning arresters, Building intercoms, Monitoring systems, Parking cards, Transmission systems, Instrumentation,Meters, Communication products, Control panels.

Multilayer Chip Varistor Construction & Dimensions:

Size EIA (EIAJ)	0402 (1005)
Symbol	Inches	Millimeters
L	0.038±0.005	0.96±0.12
W	0.019±0.003	0.48±0.0.07
T	0.020±0.004	0.50±0.10
C	0.010±0.006	0.25±0.15

General Technical Data:

Operating Temperature		-40 ~ +85ºC
Storage Temperature		-40 ~ +85ºC
Response Time		<1 ns
Solderability		245±5ºC, 3±1sec
Solder leach resistance		260±5ºC, 10±1sec
Taping Package Storage Condition	Storage Temperature	5 ~ 40ºC
	Relative Humidity	To 65%
	Storage Time	12 Months max

Environmental Performance:

Item	Specifications	Test Condition
Bias Humidity	△V_V / V_V ≤ ±10 %	90%RH, 40ºC, Working Voltage, 1000 hrs
Thermal Shock	△V_V / V_V ≤ ±10 %	-40ºC to 85ºC, 30 min. cycle, 5 cycles
Full Load Voltage	△V_V / V_V ≤ ±10 %	Working Voltage, 85ºC,1000 hrs

Carrier Tape Dimension:

Size EIA (EIAJ)	0402 (1005)
Symbol	Inches	Millimeters
A	0.315±0.012	8.00±0.30
B	0.138±0.002	3.50±0.05
C	0.069±0.002	1.75±0.05
D0	0.061±0.002	1.55±0.05
P0	0.157±0.004	4.00±0.10
P1	0.079±0.002	2.00±0.05
P2	0.079±0.002	2.00±0.05
W	0.023±0.001	0.59±0.03
L	0.044±0.001	1.12±0.03
T	0.024±0.001	0.60±0.03

Quantity of Products in the Taping Package:

SIZE EIA

(EIAJ)

0402

(1005)

Standard Packing Quantity (PCS / reel)

10,000
