Name: 18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type
Brand: SOCAY
SKU: SV0402E180G2B
Rating: 4.7 (146 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Multilayer Chip Varistor

Package: SMD0402

Vdc (Max.): 18V

Vv (Min.): 46V

Vv (Max.): 60V

Vc (Max.): 110V

Imax: 1A

Cp (Typ.): 1pF

Highlight:

18VDC Multilayer Chip Varistor

Multilayer Chip Varistor Lead Free

18VDC Surface Mount Varistors

Basic Infomation

Place of Origin: Shenzhen Guangdong China

Brand Name: SOCAY

Certification: REACH RoHS ISO

Model Number: SV0402E180G2B

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

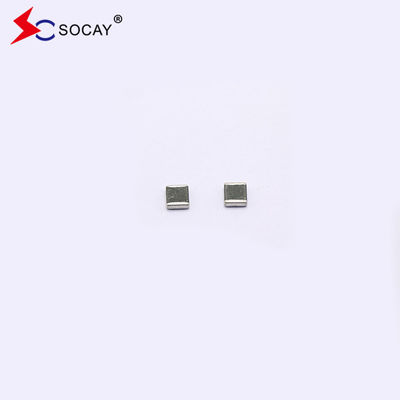

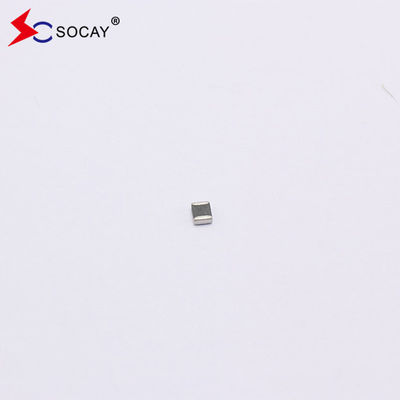

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type

Product Description

18VDC Surface Mount Multilayer Varistor SV0402E180G2B SMD Quick Response Time (<1ns)

Multilayer Varistor DATASHEET: SV0402E180G2B_v89.1.pdf

Description:

The Multilayer Varistor SV0402E180G2B is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those speciﬁed in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV0402E9R0G0B is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

Equivalent Circuits:

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type 0

Electrical Characteristics (25±5℃):

Symbol	Minimum	Typical	Maximum	Units
VDC	—	—	9	V
VV	11	—	17	V
VC	—	—	35	V
CP	—	5	—	pF

VDC – Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV – Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”

VC – Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.

CP – Device capacitance measured with zero volt bias 1Vrms at 1MHz. The pF is ±30%.

Multilayer Varistor Features:

u Lead Free type

u SMD type zinc oxide based ceramic chip

u Insulator over coat keeps excellent low and stable leakage current

u Plating termination provided good solderability characteristic

u Quick response time (<1ns)

u Low clamping voltage

u Meet IEC61000-4-2 standard

u Low capacitance can meet high speed single transient voltage protection

Multilayer Varistor Applications:

u Low capacitance product applications for high-speed signal lines such as HDMI, DVI, USB, IEEE 1394 Port etc.

u Normal capacitance product applications for I/O Port (RS232, USB, PS2, VGA, Audio) on Mother Board and Notebook, Set–Top Box, MP3 Players, DVD Players, and Docking System etc.

Multilayer Varistor Construction & Dimensions:

Size EIA (EIAJ)	0402 (1005)
Symbol	Inches	Millimeters
L	0.038±0.005	0.96±0.12
W	0.019±0.003	0.48±0.0.07
T	0.020±0.004	0.50±0.10
C	0.010±0.006	0.25±0.15

General Technical Data:

Operating Temperature		-40 ~ +85ºC
Storage Temperature		-40 ~ +85ºC
Response Time		<1 ns
Solderability		245±5ºC, 3±1sec
Solder leach resistance		260±5ºC, 10±1sec
Taping Package Storage Condition	Storage Temperature	5 ~ 40ºC
	Relative Humidity	To 65%
	Storage Time	12 Months max

Multilayer Varistor Environmental Performance:

Item	Specifications	Test Condition
Bias Humidity	△V_V / V_V ≤ ±10 %	90%RH, 40ºC, Working Voltage, 1000 hrs
Thermal Shock	△V_V / V_V ≤ ±10 %	-40ºC to 85ºC, 30 min. cycle, 5 cycles
Full Load Voltage	△V_V / V_V ≤ ±10 %	Working Voltage, 85ºC,1000 hrs

Multilayer Varistor Carrier Tape Dimension:

Size EIA (EIAJ)	0402 (1005)
Symbol	Inches	Millimeters
A	0.315±0.012	8.00±0.30
B	0.138±0.002	3.50±0.05
C	0.069±0.002	1.75±0.05
D0	0.061±0.002	1.55±0.05
P0	0.157±0.004	4.00±0.10
P1	0.079±0.002	2.00±0.05
P2	0.079±0.002	2.00±0.05
W	0.023±0.001	0.59±0.03
L	0.044±0.001	1.12±0.03
T	0.024±0.001	0.60±0.03

Quantity of Products in the Taping Package:

SIZE EIA

(EIAJ)

0402

(1005)

Standard Packing Quantity (PCS / reel)

10,000

18VDC Surface Mount Multilayer Chip Varistors SV0402E180G2B SMD Lead Free Type 3
