Name: 1206 Multilayer Chip Varistor SV1206N220G0A For Motherboard Notebook
Brand: SOCAY
SKU: SV1206N220G0A
Rating: 4.7 (181 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Component Name: Multilayer Chip Varistor

Component Package: SMD1206

Maximum DC Operating Voltage: 22V

Vv (Min.): 26.4V

Vv (Max.): 33V

Maximum Peak Current Across The Varistor: 72V

Maximum Peak Current: 100A

Maximum AC Operating Voltage: 17V

Highlight:

1206 Multilayer Chip Varistor

Notebook Multilayer Chip Varistor

Basic Infomation

Place of Origin: Shenzhen Guangdong China

Brand Name: SOCAY

Certification: REACH RoHS ISO

Model Number: SV1206N220G0A

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

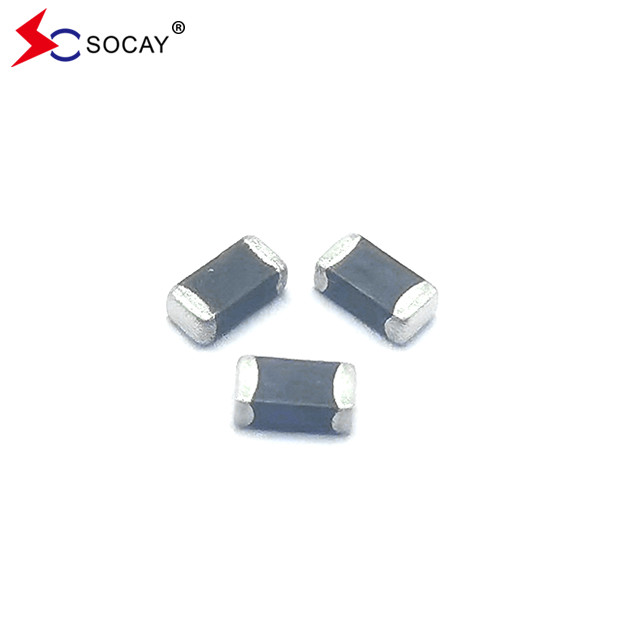

1206 Multilayer Chip Varistor SV1206N220G0A For Motherboard Notebook

Product Description

1206 Multilayer Chip Varistor SV1206N220G0A Application for Mother Board, Notebook

Multilayer Chip Varistor DATASHEET: SV1206N220G0A_v209.1.pdf

Description:
The Multilayer Chip Varistor SV1206N220G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those speciﬁed in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV1206N220G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.

Multilayer Chip Varistor Electrical Characteristics (25±5℃):

Symbol	Minimum	Typical	Maximum	Units
VRMS	—	—	17	V
VDC	—	—	22	V
VV	26.4	—	33	V
VC	—	—	72	V
Imax	—	—	100	A
Wmax	—	—	0.5	W

VRMS - Maximum AC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VDC - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.

VV - Voltage across the device measure at 1mA DC current.

Equivalent to VB “breakdown voltage”.

VC - Maximum peak current across the varistor with 8/20μs waveform and 5A pulse current.

Imax - Maximum peak current which may be applied with 8/20μs waveform without device failure.

Wmax - Maximum energy which may be dissipated with the 10/1000μs waveform without device failure.

Multilayer Chip Varistor Features:

Rectangle, sizes serialization for hybrid integrated circuit or printed circuit surface mount components
There are many side electrode lead-out material, particularly suitable for surface mount technology for solderability and resistance to soldering heat of the stringent requirements
Fast response (<1ns)
Low leakage current, low clamping voltage
Suitable for reflow, wave soldering and hot air hand soldering

Multilayer Chip Varistor Applications:

Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set- Top Box…etc.
Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.

Multilayer Chip Varistor Construction & Dimensions:

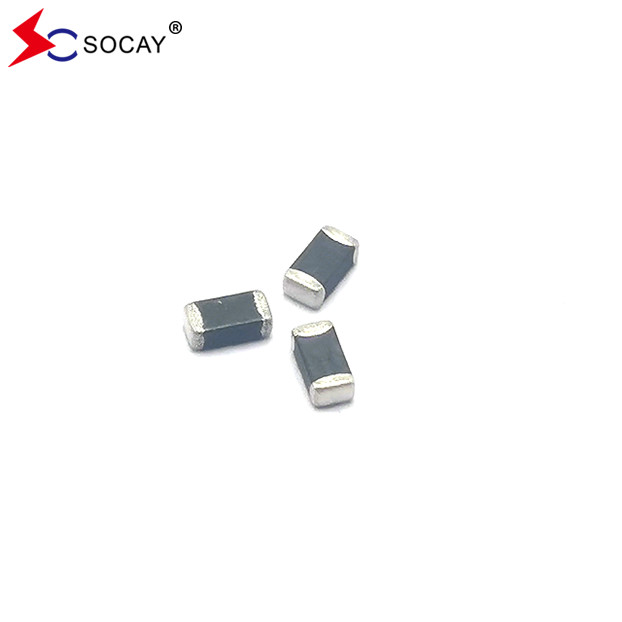

1206 Multilayer Chip Varistor SV1206N220G0A For Motherboard Notebook 0

Size EIA (EIAJ)	Length (L)		Width (W)		Thickness (T)
	Inches	Millimeters	Inches	Millimeters	Inches	Millimeters
1206 (3216)	0.126±0.012	3.20±0.30	0.063±0.012	1.60±0.30	0.071 Max	1.80 Max

Multilayer Chip Varistor IR Soldering:

Rapid heating, partial heating or rapid cooling will easily cause defect of the component. So preheating and gradual cooling process is suggested. IR soldering has the highest yields due to controlled heating rates and solder liquidus times. Make sure that the element is not subjected to a thermal gradient steeper than 4 degrees per second. 2 degrees per second is the ideal gradient. During the soldering process, pre-heating to within 100 degrees of the solder peak temperature is essential to minimize thermal shock.

Soldering Recommendations:

Preheat
- The temperature rising speed is suggested to be 2~4 ℃ /s
- Appropriate preheat time will be from 60 to 120 seconds.
Heating
- Careful about sudden rise in temperture as it may worser the solder ability.
- Set the peal temperature in the range from 215 ℃ to 225 ℃.
Cooling
- Careful about slow cooling as it may cause the position shift of component.

Multilayer Chip Varistor Environmental & Reliability Testing:

Characteristic	Test method and description
High Temperature Storage	The specimen shall be subjected to125±2℃ for 1000±2 hours in a thermostatic bath without load and then stored at room temperature and humidity for 1 to 2 hours. The change of varistor voltage shall be within 10%.
Temperature Cycle	The temperature cycle of specified temperature shall be repeated five times and then stored at room temperature and humidity for one two hours. The change of varistor voltage shall be within 10% and mechanical damage shall be examined.	Step	Temperture	Period
		1	-40±3℃	30min±3
		2	Room Temperature	1~2hours
		3	125±2℃	30min±3
		4	Room Temperature	1~2hours
High Temperature Load	After being continuously applied the maximum allowable voltage at 85℃ for 1000hours, the specimen shall be stored at room temperature and humidity for one or hours, the change of varistor voltage shall be within 10%.
Damp Heat Load/ Humidity Load	The specimen should be subjected to 40℃,90 to 95%RH environment, and the maximum allowable voltage applied for 1000 hours, then stored at room temperature and humidity for one or two hours. The change of varistor voltage shall be within 10%.
Low Temperature Storage	The specimen should be subjected to -40℃, without load for 1000 hours and then stored at room temperature for one two hours. The change of varistor voltage shall be within 10%.

Quantity of Products in The Taping Package:

SIZE EIA (EIAJ)

1206

(3216)

Standard Packing Quantity (PCS / reel)

3,000

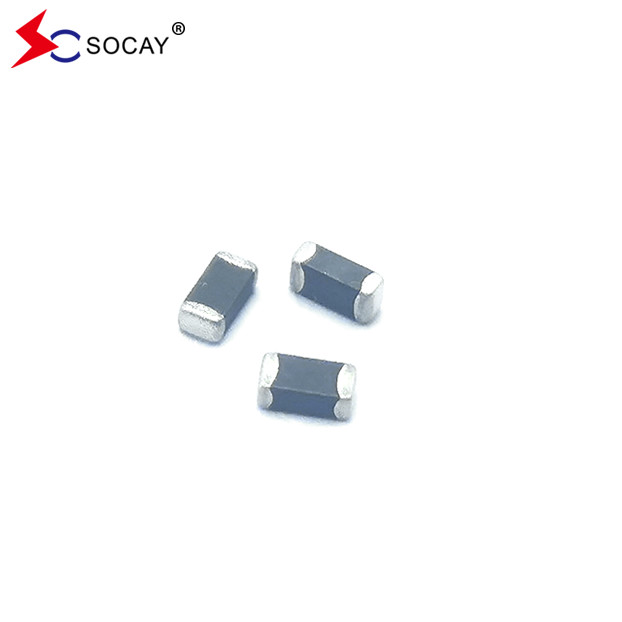

1206 Multilayer Chip Varistor SV1206N220G0A For Motherboard Notebook 2
