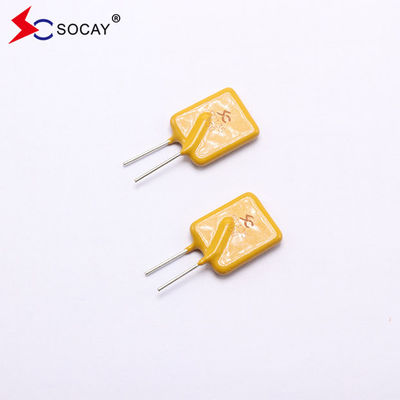

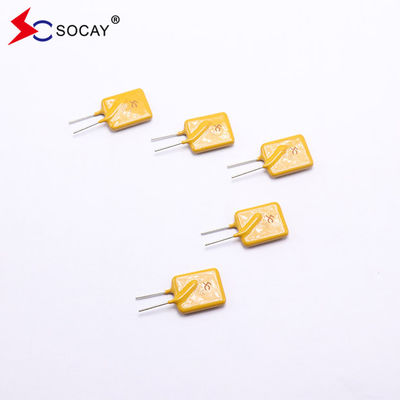

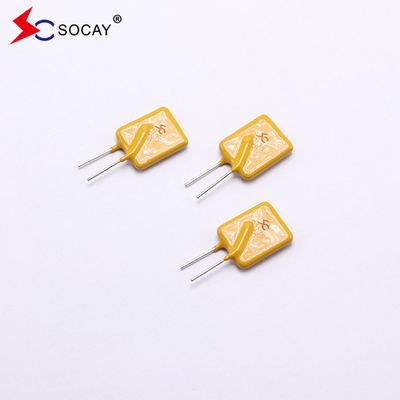

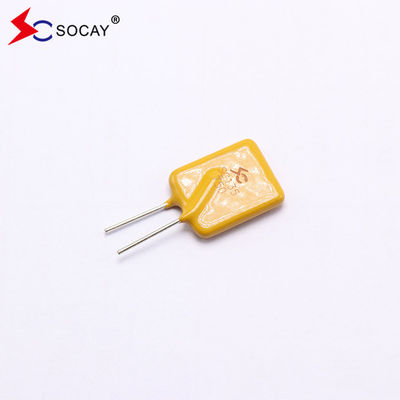

SOCAY Resettable Polymer PPTC SC135-750SZ0D Operation Current 0.75A For Power Ports
Resettable Polymer PPTC DATASHEET: SC135-750SZ0D_v912.1.pdf
Electrical Parameters:
| Part Number |
I hold (A) |
I trip (A) |
V max
(Vdc)
|
I max
(A)
|
Pdtyp
(W)
|
Maximum Time
To Trip
|
Resistance |
| Resettable Polymer PPTC |
|
|
|
|
|
Current
(A)
|
Time
(S)
|
R min
(Ω)
|
R max
(Ω)
|
R1max
(Ω)
|
|
SC135-750SZ0D
|
0.75 |
1.50 |
135 |
20 |
3.5 |
3.75 |
20.00 |
0.50 |
0.85 |
1.28 |
| |
About PPTCs
The Polymeric positive Temperature Coefficient is a kind of overcurrent electronic protection element, which is made of high polymer organic polymer under the condition of high pressure, high temperature and vulcanization reaction, after doping with conductive particle materials and processed by special technology. Traditional fuse overcurrent protection, only can protect once, burned out need to be replaced, while the self-recovery fuse has overcurrent overheating protection, automatic recovery of dual functions.
PPtcs working standard
PPTCs Working Standard
Connected in series to the circuit, when there is an abnormal current, the resistance value rises momentarily and acts as a current limiter. When the abnormal current disappears, it returns to a low resistance state and the circuit operates normally.
Resettable Polymer PPTC Features:
|
u RoHS Compliant and Halogen-Free
u Radial leaded Devices
u Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements
u PPTC Resettable Fuse Operation Current: 0.90A, Maximum Voltage: 60Vdc, Operating Temperature: -40℃ to +85℃
|
Resettable Polymer PPTC Applications:
|
u USB hubs, ports and peripherals
u Power ports
u IEEE1394 ports
u Motor protection
u Computers and peripherals
u General electronics
|
Temperature Rerating Chart – I hold (A):
| Ambient Operation Temperature |
-40℃ |
-20℃ |
0℃ |
23℃ |
30℃ |
40℃ |
50℃ |
60℃ |
70℃ |
85℃ |
| Percentage Reduction |
145% |
130% |
120% |
100% |
95% |
88% |
80% |
71% |
66% |
56% |
Test Procedures and Requirement:
| Test |
Test Conditions |
Accept/Reject Criteria |
| Resistance |
In still air @25±2°C |
Rmin≤R≤Rmax |
| Hold Current |
60 min, at Ihold, In still air @25±2°C |
No trip |
| Time to Trip |
Specified current, Vmax, @25±2°C |
T≤Maximum Time To Trip |
| Trip Cycle Life |
Vmax, Imax,100 cycles |
No arcing or burning |
| Trip Endurance |
Vmax,24hours |
No arcing or burning |
Resettable Polymer PPTC Physical Specifications:
| Lead Material |
0.03-1.85A Tin-plated Copper clad steel
2.50-5.00A Tin-plated Copper
|
| Soldering Characteristics |
Solder ability per MIL-STD-202, Method 208E |
| Insulating Material |
Cured, flame retardant epoxy polymer meets UL 94V-0 requirements. |
| Device Labeling |
Marked with ‘SC’, voltage, current rating |
Resettable Polymer PPTC Packaging Quantity:
| Part Number |
Quantity (pcs/reel) |
|
SC135-750SZ0D
|
500 |
