Name: PPTC Surface Mount Resettable Fuse SCF002-0603RB 0.02A 30Vmax Faster Tripping
Brand: SOCAY
SKU: SCF002-0603RB
Rating: 4.8 (157 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: PPTC Resettable Fuse

Package Type: SMD0603

I Hold: 0.02A

I Trip: 0.06A

V Max: 30V

I Max: 20A

P Dtyp.: 0.5W

Maximum Time To Trip Current: 0.2A

Maximum Time To Trip Time: 1Sec

Resistance Min: 12Ω

Resistance Max: 70Ω

Highlight:

PPTC Surface Mount Resettable Fuse

Surface Mount Resettable Fuse 0.02A

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL, TUV, REACH, RoHS, ISO

Model Number: SCF002-0603RB

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

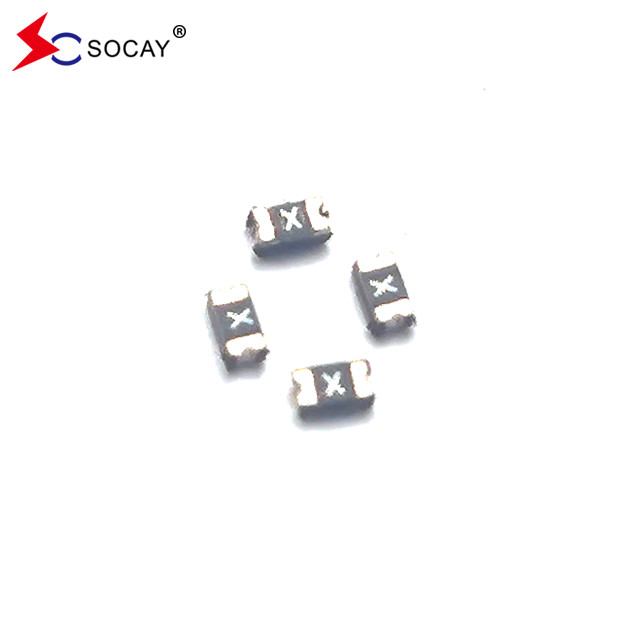

PPTC Surface Mount Resettable Fuse SCF002-0603RB 0.02A 30Vmax Faster Tripping

Product Description

Surface Mount Resettable PPTC SCF002-0603RB 0.02A 30Vmax Faster tripping 0603 Dimension Solid Stat

DATASHEET: SCF0603RB Series_v2108.1.pdf

Part Number	Hold Current	Trip Current	Rated Voltage	Max Current	Typical Power	Maximum Time To Trip		Resistance
	I _hold (A)	I _trip (A)	V _max (Vdc)	I _max (A)	P _dtyp. (W)	Current (A)	Time (Sec.)	R_min (Ω)	R _1max (Ω)
SCF001-0603RB	0.01	0.03	30.0	20.0	0.50	0.20	1.00	15.00	100.0
SCF002-0603RB	0.02	0.06	30.0	20.0	0.50	0.20	1.00	12.00	70.00
SCF003-0603RB	0.03	0.09	30.0	20.0	0.50	0.15	1.00	6.000	65.00
SCF004-0603RB	0.04	0.12	24.0	20.0	0.50	0.20	1.00	4.000	45.00
SCF005-0603RB	0.05	0.15	24.0	20.0	0.50	0.25	1.00	3.000	35.00
SCF010-0603RB	0.10	0.30	15.0	40.0	0.50	0.50	1.00	0.900	8.000
SCF020-0603RB	0.20	0.50	9.0	40.0	0.50	1.00	0.60	0.550	3.500
SCF025-0603RB	0.25	0.55	9.0	40.0	0.50	8.00	0.08	0.500	3.000
SCF030-0603RB	0.30	0.70	6.0	40.0	0.50	8.00	0.10	0.300	2.000
SCF035-0603RB	0.35	0.75	6.0	40.0	0.50	8.00	0.10	0.200	1.400
SCF040-0603RB	0.40	0.80	6.0	40.0	0.50	8.00	0.10	0.150	0.900
SCF050-0603RB	0.50	1.00	6.0	40.0	0.50	8.00	0.10	0.100	0.800
I _hold = Hold Current. Maximum current device will not trip in 25°C still air. I _trip = Trip Current. Minimum current at which the device will always trip in 25°C still air. V _max = Maximum operating voltage device can withstand without damage at rated current (Imax). I _max = Maximum fault current device can withstand without damage at rated voltage (Vmax). P _d_typ=Maximum power dissipation when device is in the tripped state in 25°C still air environment at rated voltage. R _min = Minimum device resistance prior to tripping at 25°C. R _1max = Maximum device resistance is measured one hour post reflow.

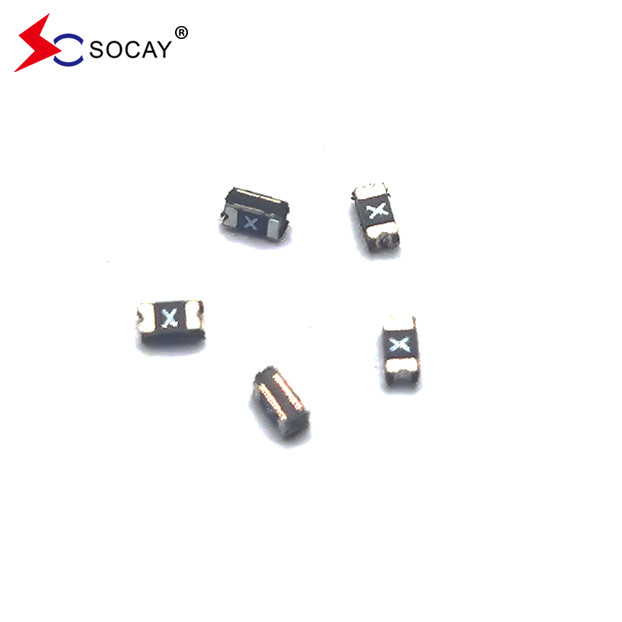

PPTC Surface Mount Resettable Fuse SCF002-0603RB 0.02A 30Vmax Faster Tripping 0

Features:

u RoHS Compliant & Halogen Free

u Faster tripping, 0603 Dimension, Surface mountable, Solid state

u Operation Current: 0.01A ~ 0.50A

u Maximum Voltage: 6V ~ 30Vdc

u Operating Temperature: -40℃ ~ + 85℃

Test Item	Test Conditions	Accept / Reject Criteria
Resistance	In still air @ 25℃	R_min≤R≤R₁_max
Time to Trip	Specified current, V_max, 25℃	T≤Maximum Time to Trip
Holding Current	30min, at I_H	No trip
Trip Cycle Life	V_max, I_max, 100cycles	No arcing or burning
Trip Endurance	V_max, 1 hour	No arcing or burning

Terminal Materials	Tin-Plated Nickle-copper
Soldering Zone	Meets EIA specification RS 186-9E and ANSI/J-STD-002 Category 3.

Test Item	Test Conditions	Resistance Change
Passive Aging	85℃,1000 hours	±10%
Humidity Aging	85℃/85%RH.100 hours	±5%
Thermal Shock	MIL-STD-202, Method 107G +85℃/-40℃, 20 times	±33% typical resistance change
Solvent Resistance	MIL-STD-202, Method 215	No change
Vibration	ML-STD-883C, Test Condition A	No change

Model	Maximum ambient operating temperature (℃)
	-40	-20	0	25	40	50	60	70	85
SCF001-0603RB	0.014	0.0125	0.0115	0.010	0.0085	0.007	0.006	0.005	0.0035
SCF002-0603RB	0.028	0.025	0.023	0.020	0.017	0.014	0.012	0.010	0.007
SCF003-0603RB	0.042	0.038	0.035	0.030	0.026	0.021	0.018	0.015	0.011
SCF004-0603RB	0.056	0.050	0.046	0.040	0.034	0.028	0.024	0.020	0.014
SCF005-0603RB	0.070	0.063	0.058	0.050	0.043	0.035	0.030	0.025	0.018
SCF010-0603RB	0.140	0.125	0.115	0.100	0.085	0.070	0.060	0.050	0.035
SCF020-0603RB	0.280	0.250	0.230	0.200	0.170	0.140	0.120	0.100	0.070
SCF025-0603RB	0.350	0.310	0.290	0.250	0.210	0.180	0.150	0.130	0.090
SCF030-0603RB	0.420	0.380	0.350	0.300	0.260	0.210	0.180	0.150	0.110
SCF035-0603RB	0.470	0.440	0.390	0.350	0.300	0.270	0.240	0.200	0.140
SCF040-0603RB	0.540	0.500	0.450	0.400	0.340	0.310	0.270	0.230	0.160
SCF050-0603RB	0.670	0.630	0.560	0.500	0.430	0.390	0.340	0.290	0.200

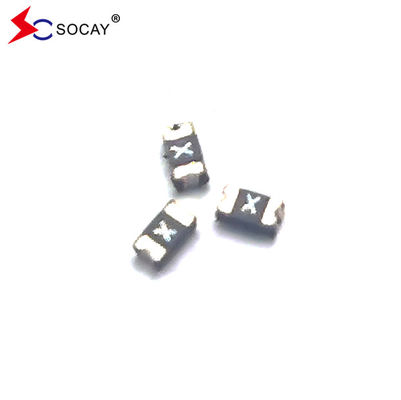

PPTC Surface Mount Resettable Fuse SCF002-0603RB 0.02A 30Vmax Faster Tripping 1

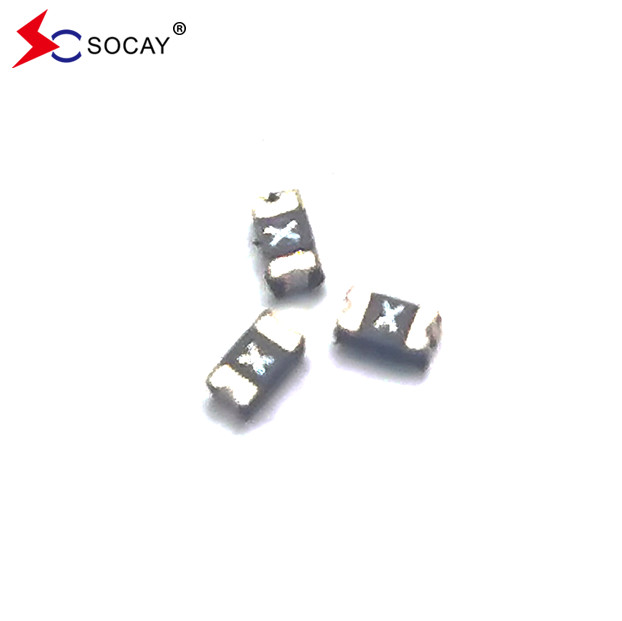

PPTC Surface Mount Resettable Fuse SCF002-0603RB 0.02A 30Vmax Faster Tripping 2

PPTC Surface Mount Resettable Fuse SCF002-0603RB 0.02A 30Vmax Faster Tripping 3

Part Number	Quantity	Part Number	Quantity
SCF001-0603RB	4000 PCS	SCF020-0603RB	5000 PCS
SCF002-0603RB	4000 PCS	SCF025-0603RB	5000 PCS
SCF003-0603RB	5000 PCS	SCF030-0603RB	5000 PCS
SCF004-0603RB	5000 PCS	SCF035-0603RB	5000 PCS
SCF005-0603RB	5000 PCS	SCF040-0603RB	4000 PCS
SCF010-0603RB	5000 PCS	SCF050-0603RB	4000 PCS
