Power Supply Surge Protective Devices SPD SC-10KV-277 For 220V Power Grid

270PCS
MOQ
Negotiable
Price
Power Supply Surge Protective Devices SPD SC-10KV-277 For 220V Power Grid
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Surge Protective Devices (SPD)
Size: 35×26×14mm
Rated Operating Voltage: 220VAC
Max. Continuous Voltage: 277VAC
Response Time: 65ns
Cross-section Area: 1mm2
Vn: 10kV
Vmax: 20kV
L-N/PE: 1.2kV
N-PE: 1.0kV
Highlight:

Power Supply Surge Protective Devices

,

220V Surge Protective Devices
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC-10KV-277
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY Surge Protective Devices (SPD) SC-10KV-277 Power Supply Surge Protector Suitable for 220V Power Grid



DATASHEET:  SC-10KV-277_v2209.1.pdf



Symbol Parameter Value Unit
Electrical Parameters Rated Operating Voltage 220 VAC
  Max. Continuous Voltage 277 VAC
  Response Time 65 ns
  Cross-section Area 1 mm2
Surge Parameters Nominal Discharge Voltage (1.2/50μs) (Vn) 10 kV
  Maximum Discharge Voltage (1.2/50μs) (Vmax) 20 kV
Voltage Protection Level (Up) L-N/PE 1.2 kV
  N-PE 1.0 kV

Notes:

1. Nominal discharge voltage surge times:±15T;

2. Maximum discharge voltage surge times:1T.

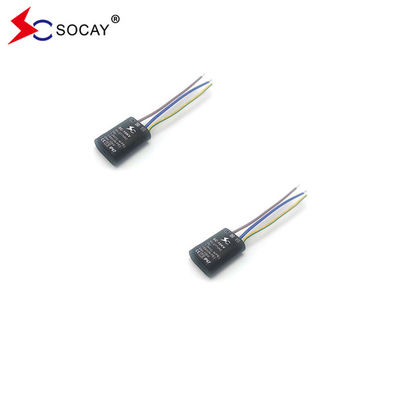

Power Supply Surge Protective Devices SPD SC-10KV-277 For 220V Power Grid 0


Description:

SC-10KV-277 is a kind of power supply surge protector suitable for 220V power grid. Used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Installation and application is very convenient, with L, N and PE connection line.





Features:

u The product has full mold protection function. The product has a maximum protection can withstand the impact of 10kV surge voltage.

u The size of the product is small, 35×26×14mm (excluding the connecting wire).

u It is a Class III power SPD.

u Parallel connection mode is adopted.

u Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.

u Executive standard: IEC/EN:61643-11.

u Operating Temperature Range: -40℃ to +85℃ .






Applications:

  • Outdoor and Commercial LED Lighting.
  • Roadway lighting.
  • Traffic lighting.
  • Digital signage.
  • Security power supply.
  • Wash wall lighting.
  • Parking garage lighting.
  • Flood lighting.
  • Tunnel lighting.

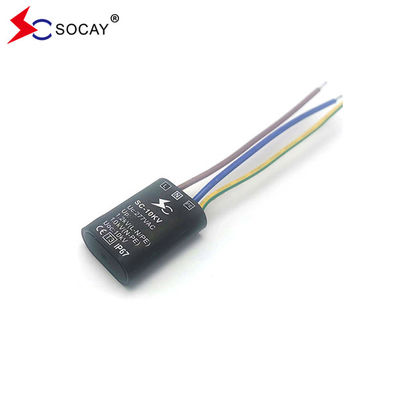

Power Supply Surge Protective Devices SPD SC-10KV-277 For 220V Power Grid 1

Power Supply Surge Protective Devices SPD SC-10KV-277 For 220V Power Grid 2



Part Number Quantity
SC-10KV-277 270 PCS / Box
