Home /Products/Surge Protection Device/SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting

270PCS
MOQ
Negotiable
Price
SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Surge Protective Devices (SPD)
Size: 41×32×19.5mm
Rated Operating Voltage: 220VAC
Max. Continuous Voltage: 277VAC
Response Time: 25ns
Cross-section Area: 1.5mm2
Vn: 20kV
L-N/PE: 1.3kV
N-PE: 1.1kV
Highlight:

Surge Protective Device SPD

,

Surge Protective Device 277Vac

,

SPD For Street Light
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC-20KV-277
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SC-20KV-277 Surge Protective Devices, Max. Continuous Voltage 277Vac, SPD Used in Street Lighting, Landscape Lighting



DATASHEET:  SC-20KV-277_v2209.1.pdf



Symbol Parameter Value Unit
Electrical Parameters Rated Operating Voltage 220 VAC
  Max. Continuous Voltage 277 VAC
  Response Time 25 ns
  Cross-section Area 1.5 mm2
Surge Parameters Nominal Discharge Voltage (1.2/50μs) (Vn) 20 kV
Voltage Protection Level (Up) L-N/PE 1.3 kV
  N-PE 1.1 kV

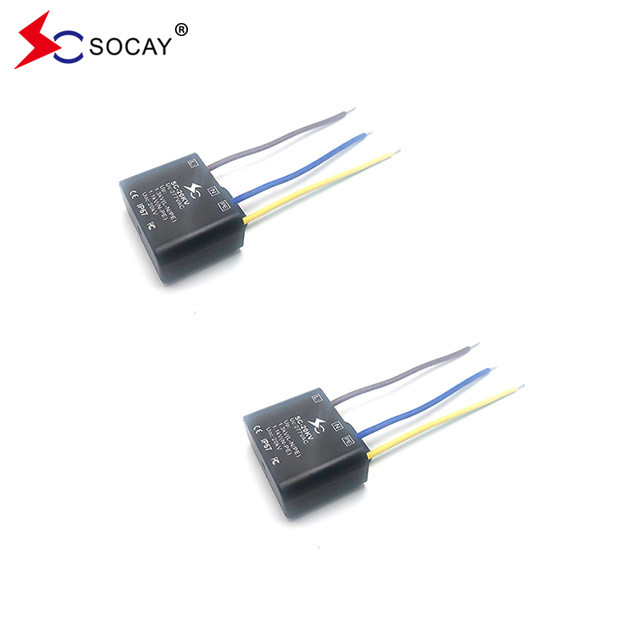

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting 0



Description:

SC-20KV-277 is a kind of power supply surge protector suitable for 220V power grid. Used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Installation and application is very convenient, with L, N and PE connection line.



Features:

u The product has full mold protection function. The product has a maximum protection can withstand the impact of 20kV surge voltage.

u The size of the product is small, 41×32×19.5mm (excluding the connecting wire).

u It is a Class III power SPD.

u Parallel connection mode is adopted.

u Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.

u Executive standard: IEC/EN:61643-11.

u Operating Temperature Range: -40℃ to +85℃.





Applications:

  • Outdoor and Commercial LED Lighting.
  • Roadway lighting.
  • Traffic lighting.
  • Digital signage.
  • Security power supply.
  • Wash wall lighting.
  • Parking garage lighting.
  • Flood lighting.
  • Tunnel lighting.

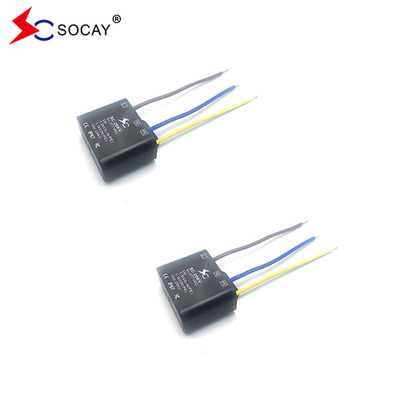

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting 1

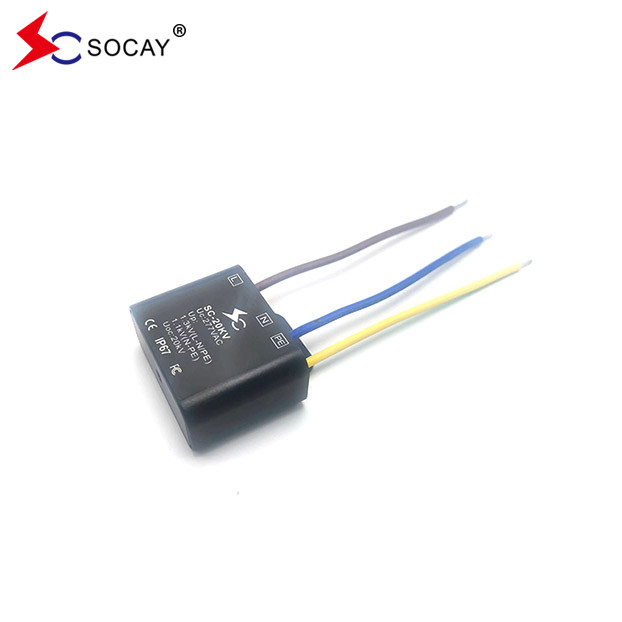

SC-20KV-277 Surge Protective Device 277Vac SPD For Street Landscape Lighting 2







Part Number Quantity
SC-20KV-277 270 PCS / Box



Tag:

Surge Protective Devices

Power Supply Surge Protector

SPD Surge Protection
