Class III Power SPD Surge Protection Device SC-10KVC-277 220VAC For Roadway Lighting

Class III Power SPD Surge Protection Device SC-10KVC-277 Withstand The Impact Of 10kV Surge Voltage

SPD Surge Protection Device DATASHEET:  SC-10KVC-277_v2209.1.pdf

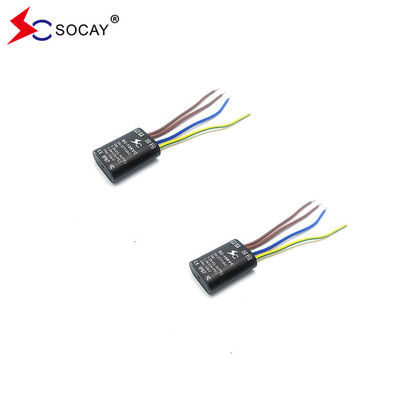

Surge Protection Device​ Illustration:

Surge Protection Device SC-10KVC-277 is a kind of power supply surge protector suitable for 220V power grid. SPD usually used in street lighting, and landscape lighting, parking garage lighting, and digital signage.......The shell of the product SPD is made of flame-retardant material, and the product SPD is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Installation and application is very convenient, with L, N and PE connection line.

Features:

• The product has full mold protection function. The product has a maximum protection can withstand the impact of 10kV surge voltage.
• The size of the product is small, 35mm×26mm×14mm (excluding the connecting wire).
• It is a Class III power SPD.
• Surge Protection Device Can use series, parallel connection mode, flexible and convenient.
• Surge Protection Device can adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.
• SPD Executive standard: IEC/EN:61643-11.
• Operating Temperature Range: -40℃ to +85℃.

Applications:

• Outdoor and Commercial LED Lighting.
• Uesd in Roadway lighting.
• Apply for Traffic lighting.
• Surge Protection Device​ Suitable for Digital signage.
• Security power supply.
• And so on.....

Surge Protection Device Electrical Characteristics:

Surge Protection Device Application / Inatallation Schematic:

Surge Protection Device Typical Dimension:

Packaging Information:

Warning:

• SOCAY owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
• SOCAY reserves the right to make changes without further notice to any products herein.
• SOCAY makes no warranties, representations or warranties as to the fitness of its products for any particular purpose, and disclaims any liability.
• The parameters provided in the SOCAY datasheet specification may vary from application to application, and the actual performance may vary over time. All operating parameters must be verified by the customer's technical expert before application.
• Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.
