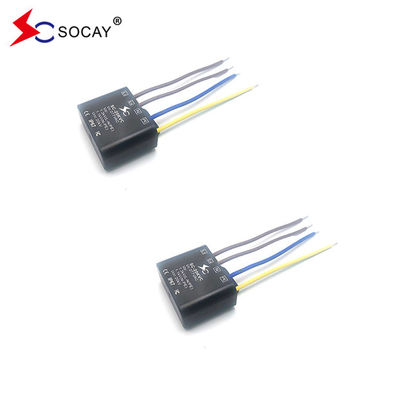

SC-20KVC-277 Power Supply Surge Protector SPD Device Rated Operating 220V AC

Original Factory Supply Power Supply Surge Protector SC-20KVC-277 In Stock

Power Supply Surge Protector​ DATASHEET:  SC-20KVC-277_v2302.1.pdf

Power Supply Surge Protector Introduction:

Original Factory Supply Power Supply Surge Protector SC-20KVC-277 is a kind of power supply surge protector suitable for 220V power grid. Power Supply Surge Protector SC-20KVC-277 can used in street lighting, landscape lighting, etc.The shell of the product is made of flame-retardant material, and the product is made of potting glue. It has the characteristics of fire prevention, waterproof and dustproof . Protection grade up to IP67. Power Supply Surge Protector SC-20KVC-277 Installation and application is very convenient, with L, N and PE connection line.

SC-20KVC-277 Features:

• The product SC-20KVC-277 has full mold protection function. The product has a maximum protection can withstand the impact of 20kV surge voltage.
• The size of the product SC-20KVC-277 is small, 41×32×19.5mm (excluding the connecting wire).
• It is a Class III power SPD SC-20KVC-277.
• Can use series, parallel connection mode, flexible and convenient.
• Adopt our company's new structure technology manufacturing, break through the conventional structure technology. This process can improve the impact resistance of SPD.
• Executive standard: IEC/EN:61643-11.
• SC-20KVC-277 Operating Temperature Range: -40℃ to +85℃.

SC-20KVC-277 Applications:

• Outdoor and Commercial LED Lighting.
• Power Supply Surge Protector SC-20KVC-277 suitable for Roadway lighting.
• Traffic lighting.
• Power Supply Surge Protector SC-20KVC-277 suitable for Digital signage.
• Security power supply.
• Power Supply Surge Protector SC-20KVC-277 suitable for Wash wall lighting.
• Parking garage lighting.
• Power Supply Surge Protector SC-20KVC-277 suitable for  Flood lighting.
• Tunnel lighting.

Electrical Characteristics:

Application/ Inatallation Schematic:

SC-20KVC-277 Typical Dimension:

Packaging Information:
