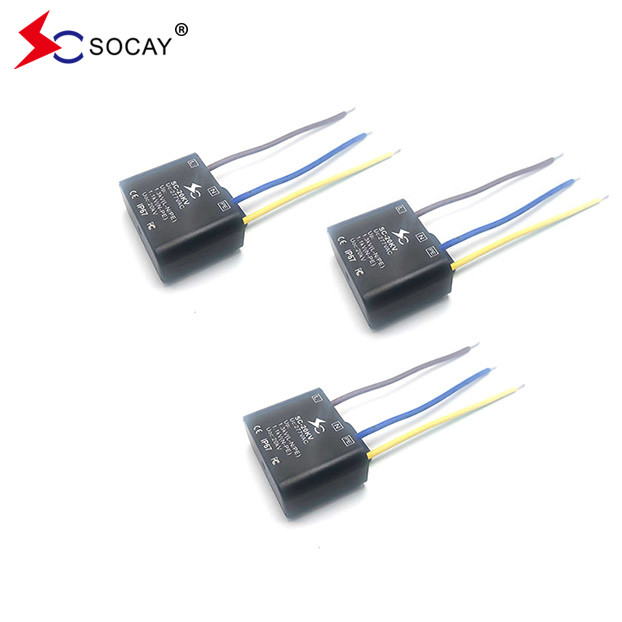

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector

270PCS
MOQ
Negotiable
Price
SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector
Features Gallery Product Description Request A Quote
Features
Specifications
Protector Name: SPD Device
Protector Size: 41×32×19.5mm
Protector Rated Operating Voltage: 220VAC
Protector Max. Continuous Voltage: 277VAC
Protector Response Time: 25ns
Protector Vn: 20kV
Protector L-N/PE: 1.3kV
Protector N-PE: 1.1kV
Highlight:

Surge Protection Device 20kV

,

SPD Surge Protection Device

,

20kV LED Surge Protector
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SC-20KV-277
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: PP bag
Delivery Time: 1-3 weeks
Product Description

Original Factory Supply SC-20KV-277 Surge Protection Device 20kV Led Surge Protector



Surge Protection Device DATASHEET:  SC-20KV-277_v2209.1.pdf



Product features



To protection Led light when lightning thounder ,the circuit board safe .





Led Surge Protector​ Applications:



Led Road light

roadway lighting

Traffic Lighting

Ensure electricity supply

Intelligent Lighting Control System on Parking lots

 tunnel lighting



Led Surge Protector​ Electrical Characteristics:

SPD Symbol Led Surge Protector​ Parameter Value Unit
Led Surge Protector Electrical Parameters Rated Operating Voltage 220 VAC
  Max. Continuous Voltage 277 VAC
  Led Surge Protector Response Time 25 ns
  Led Surge Protector Cross-section Area 1.5 mm2
Led Surge Protector Surge Parameters Nominal Discharge Voltage (1.2/50μs) (Vn) 20 kV
Led Surge Protector Voltage Protection Level (Up) Led Surge Protector L-N/PE 1.3 kV
  Led Surge Protector N-PE 1.1 kV






Led Surge Protector​ Application/ Inatallation Schematic:

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector 0

Note:

The black wire is L wire, the white wire is N wire, and the yellow-green wire is the ground wire.







Led Surge Protector​ Typical Dimension:

SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector 1









Led Surge Protector​ Packaging Information:

SPD Part Number SPD Quantity
SC-20KV-277 270 PCS / Box





SC-20KV-277 SPD Surge Protection Device 20kV LED Surge Protector 2
