Home /Products/Circuit Protection Components/TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection

TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection

500PCS
MOQ
Negotiable
Price
TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Package Type: DO-218AB
Vr: 33V
Ir@Vr @25℃: 5μA
Ir@Vr @175℃: 150μA
Vbr@It (Min.): 36.7V
Vbr@It (Max.): 40.6V
It: 5mA
Vc@Ipp: 53.3V
Ipp: 124A
Highlight:

TVS Diodes Circuit Protection Components

,

Automotive Protection Circuit Protection Components
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SM8S33AG
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

SOCAY SM8S Series TVS Diodes SM8S33AG, Best Sellers for Automotive Protection



DATASHEET:  SM8SXXG Series_v2309.1.pdf

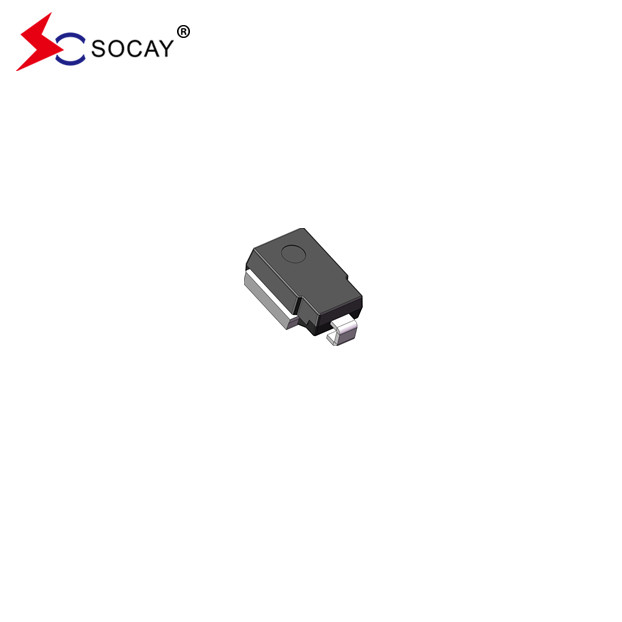

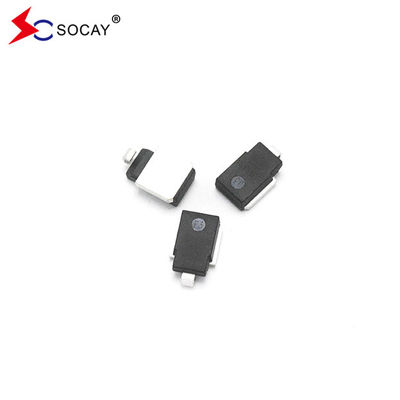

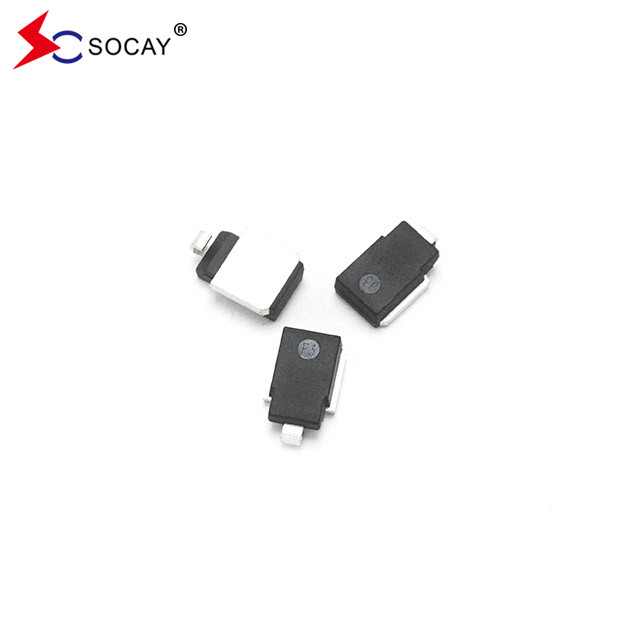

TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection 0



Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi   Min. Max.
SM8S33AG SM8S33CAG 33.0 36.7 40.6 5.0 10 150 124 53.3

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.



Features:

Optimized glass passivated chip.

TJ=175℃ capability suitable for high reliability and automotive requirement.

6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.

Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).

Meet AEC-Q101 qualified.

Low leakage current.

Low forward voltage drop.

Excellent clamping capability.

Very fast response time.

RoHS compliant.

Application:

Automotive Protection.





Tag:

Auto Electric Components

Automotive TVS Diode

Transient Voltage Suppression Diode
