Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W

500PCS
MOQ
Negotiable
Price
Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: TVS Diodes
Package Type: DO-218AB
Vr: 18V
Ir@Vr @25℃: 5μA
Ir@Vr @175℃: 150μA
Vbr@It (Min.): 20.0V
Vbr@It (Max.): 22.1V
It: 5mA
Vc@Ipp: 29.2V
Ipp: 226A
Storage Temperature: -55°C To +175°C
Highlight:

Automotive TVS Diodes

,

TVS Diodes 6600W
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SM8S18CAG
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

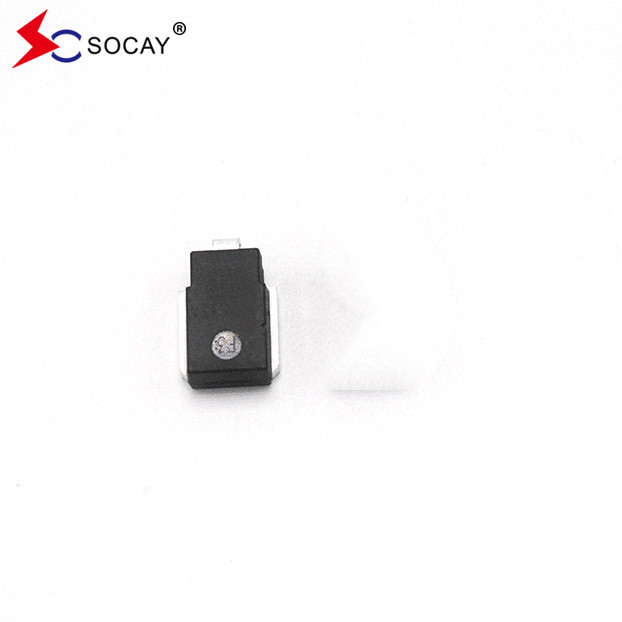

TVS Diodes SM8S18CAG, Peak Pulse Power Dissipation 6600W, Protect Sensitive Electronic Equipment



DATASHEET:  SM8SXXG Series_v2309.1.pdf



Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W 0





Description:



Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi   Min. Max.
SM8S18AG SM8S18CAG 18.0 20.0 22.1 5.0 10 150 226 29.2

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.



Features:

Optimized glass passivated chip.

TJ=175℃ capability suitable for high reliability and automotive requirement.

6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.

Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).

Meet AEC-Q101 qualified.

Low leakage current.

Low forward voltage drop.

Excellent clamping capability.

Very fast response time.

RoHS compliant.

Application:

Automotive Protection.





Tag:

Auto Electric Components

Automotive TVS Diode

Transient Voltage Suppression Diode
