Bi Directional Automotive TVS Diode SM8S28CAG Low Leakage Current DO-218AB

500PCS
MOQ
Negotiable
Price
Bi Directional Automotive TVS Diode SM8S28CAG Low Leakage Current DO-218AB
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Diodes For Automotive
Package Size: DO-218AB
Vr: 28V
Ir@Vr @25℃: 5μA
Ir@Vr @175℃: 150μA
Vbr@It (Min.): 31.1V
Vbr@It (Max.): 34.4V
It: 5mA
Vc@Ipp: 45.4V
Ipp: 145A
Highlight:

Bi Directional Automotive TVS Diode

,

Automotive TVS Diode DO-218AB

,

Bi Directional TVS Diode
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SM8S28CAG
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 1-3weeks
Product Description

Bi-Directional TVS SM8S28CAG Transient Voltage Suppressors, Low Leakage Current



DATASHEET:  SM8SXXG Series_v2309.1.pdf

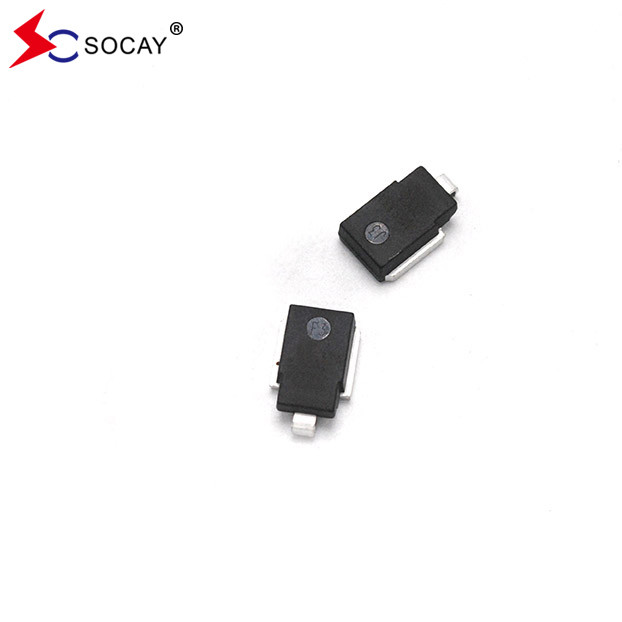

Bi Directional Automotive TVS Diode SM8S28CAG Low Leakage Current DO-218AB 0



Description:

TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltag



Material

Semiconductor materials, die, resin packages



Function

It's use for AUTOMOTIVE Circuit Protection



Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi   Min. Max.
SM8S28AG SM8S28CAG 28.0 31.1 34.4 5.0 10 150 145 45.4

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.





Application:

Traffic recorder
ADAS Advanced Driver Assistance System
OBD vehicle diagnostic system
DMS Driver condition monitoring Department
Car LED
Cigarette lighter
Car audio





Tag:

Auto Electric Components

Automotive TVS Diode

Transient Voltage Suppression Diode
