36V SM8S36AG Circuit Protection Components TVS Diode Unidirectional Surface Mount

500PCS
MOQ
Negotiable
Price
36V SM8S36AG Circuit Protection Components TVS Diode Unidirectional Surface Mount
Features Gallery Product Description Request A Quote
Features
Specifications
SM8S36AG Package: DO-218AB
SM8S36AG Vr: 36V
Ir@Vr @25℃: 5μA
SM8S36AG Ir@Vr @175℃: 150μA
Vbr@It (Min.): 40.0V
SM8S36AG Vbr@It (Max.): 44.2V
SM8S36AG It: 5mA
SM8S36AG Vc@Ipp: 58.1V
SM8S36AG Ipp: 114A
Highlight:

36V Circuit Protection Components

,

Unidirectional Circuit Protection Components

,

36V TVS Diode Unidirectional
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SM8S36AG
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

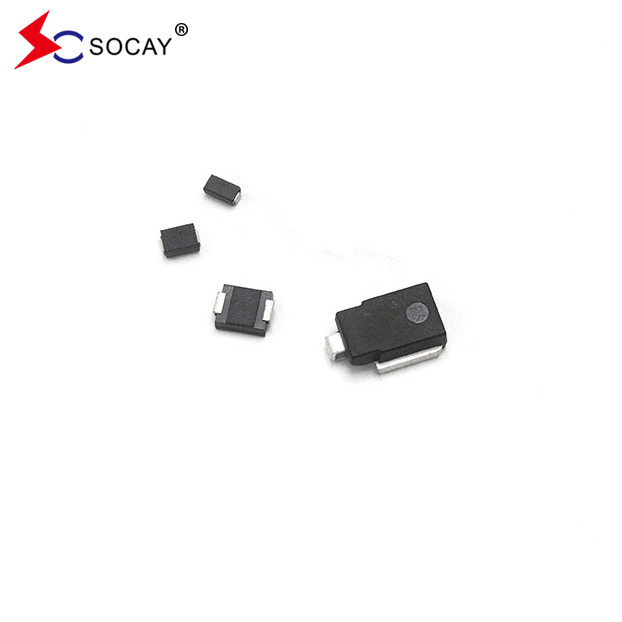

SOCAY 36V Uni-directional TVS Diodes SM8S36AG, Surface Mount Transient Voltage Suppressors



DATASHEET:  SM8SXXG Series_v2309.1.pdf



36V SM8S36AG Circuit Protection Components TVS Diode Unidirectional Surface Mount 0

Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi   Min. Max.
SM8S10AG SM8S10CAG 10.0 11.1 12.3 5.0 15 250 388 17.0
SM8S11AG SM8S11CAG 11.0 12.2 13.5 5.0 10 150 363 18.2
SM8S12AG SM8S12CAG 12.0 13.3 14.7 5.0 10 150 332 19.9
SM8S13AG SM8S13CAG 13.0 14.4 15.9 5.0 10 150 307 21.5
SM8S14AG SM8S14CAG 14.0 15.6 17.2 5.0 10 150 284 23.2
SM8S15AG SM8S15CAG 15.0 16.7 18.5 5.0 10 150 270 24.4
SM8S16AG SM8S16CAG 16.0 17.8 19.7 5.0 10 150 254 26.0
SM8S17AG SM8S17CAG 17.0 18.9 20.9 5.0 10 150 239 27.6
SM8S18AG SM8S18CAG 18.0 20.0 22.1 5.0 10 150 226 29.2
SM8S20AG SM8S20CAG 20.0 22.2 24.5 5.0 10 150 204 32.4
SM8S22AG SM8S22CAG 22.0 24.4 26.9 5.0 10 150 186 35.5
SM8S24AG SM8S24CAG 24.0 26.7 29.5 5.0 10 150 170 38.9
SM8S26AG SM8S26CAG 26.0 28.9 31.9 5.0 10 150 157 42.1
SM8S28AG SM8S28CAG 28.0 31.1 34.4 5.0 10 150 145 45.4
SM8S30AG SM8S30CAG 30.0 33.3 36.8 5.0 10 150 136 48.4
SM8S33AG SM8S33CAG 33.0 36.7 40.6 5.0 10 150 124 53.3
SM8S36AG SM8S36CAG 36.0 40.0 44.2 5.0 10 150 114 58.1
SM8S40AG SM8S40CAG 40.0 44.4 49.1 5.0 10 150 102 64.5
SM8S43AG SM8S43CAG 43.0 47.8 52.8 5.0 10 150 95.1 69.4
SM8S45AG SM8S45CAG 45.0 50.0 55.3 5.0 10 150 90.8 72.7
SM8S48AG SM8S48CAG 48.0 53.3 58.9 5.0 10 150 85.3 77.4
SM8S51AG SM8S51CAG 51.0 56.7 62.7 5.0 10 150 80.1 82.4
SM8S54AG SM8S54CAG 54.0 60.0 66.3 5.0 10 150 75.8 87.1
SM8S58AG SM8S58CAG 58.0 64.4 71.2 5.0 10 150 70.5 93.6
SM8S60AG SM8S60CAG 60.0 66.7 73.7 5.0 10 150 68.2 96.8
SM8S64AG SM8S64CAG 64.0 71.1 78.6 5.0 10 150 64.1 103.0
SM8S70AG SM8S70CAG 70.0 77.8 86.0 5.0 10 150 58.4 113.0
SM8S75AG SM8S75CAG 75.0 83.3 92.1 5.0 10 150 54.5 121.0
SM8S78AG SM8S78CAG 78.0 86.7 95.8 5.0 10 150 52.4 126.0
SM8S85AG SM8S85CAG 85.0 94.4 104.0 5.0 10 150 48.2 137.0

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.



Features:

Optimized glass passivated chip.

TJ=175℃ capability suitable for high reliability and automotive requirement.

6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.

Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).

Meet AEC-Q101 qualified.

Low leakage current.

Low forward voltage drop.

Excellent clamping capability.

Very fast response time.

RoHS compliant.
