Name: 6600W Passive Auto Electric Components SM8S30CAG TVS Bidirectional
Brand: Shenzhen Socay Electronics Co., Ltd.
SKU: SM8S30CAG
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Key Words: Auto Grade Components

Footprint: DO-218AB

Function: Protection Circuit Board

Pattern: Passive Component

Vr: 30V

Ir@Vr @25℃: 5μA

Ir@Vr @175℃: 250μA

Vbr@It (Min.): 33.3V

Vbr@It (Max.): 36.8V

It: 5mA

Vc@Ipp: 48.4V

Ipp: 136A

Highlight:

6600W Auto Electric Components

Passive Auto Electric Components

6600W TVS Diode Bidirectional

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO

Model Number: SM8S30CAG

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: bulk

Delivery Time: 1-2weeks

Gallery

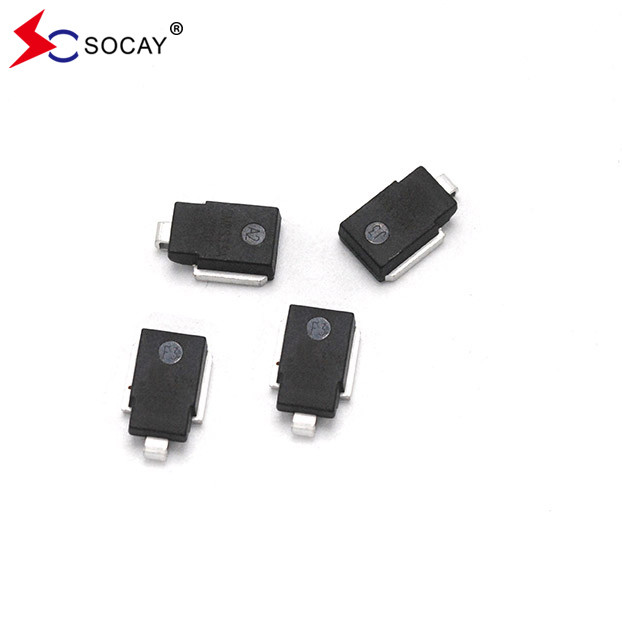

6600W Passive Auto Electric Components SM8S30CAG TVS Bidirectional

Product Description

6600W TVS Bi-Directional TVS SM8S30CAG Transient Voltage Suppressors

DATASHEET: SM8SXXG Series_v2309.1.pdf

6600W Passive Auto Electric Components SM8S30CAG TVS Bidirectional 0

Description:
The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Working Standard
. Connected in parallel to the circuit, when the device is inactive, the resistance value is high and can be considered as an open circuit with little or no effect on the circuit. When there is an abnormal pulse, the resistance value drops instantly and the current is released momentarily. When the abnormal high voltage disappears, it returns to its high resistance state and the circuit works normally.

Part Number		Working Peak Reverse Voltage V_RWM (V)	Breakdown Voltage V_BR (V)		Test Current I_T (mA)	Maximum Reverse Leakage I_R @ V_RWM (µA)	Maximum I_R@ V_RWM T_J=175℃ (µA)	Maximum Reverse Surge Current I_PP (A) ①	Maximum Clamping Voltage V_C @ I_PP (V)
Uni	Bi		Min.	Max.
SM8S30AG	SM8S30CAG	30.0	33.3	36.8	5.0	10	150	136	48.4
SM8S33AG	SM8S33CAG	33.0	36.7	40.6	5.0	10	150	124	53.3
SM8S36AG	SM8S36CAG	36.0	40.0	44.2	5.0	10	150	114	58.1
SM8S40AG	SM8S40CAG	40.0	44.4	49.1	5.0	10	150	102	64.5
SM8S43AG	SM8S43CAG	43.0	47.8	52.8	5.0	10	150	95.1	69.4
SM8S45AG	SM8S45CAG	45.0	50.0	55.3	5.0	10	150	90.8	72.7
SM8S48AG	SM8S48CAG	48.0	53.3	58.9	5.0	10	150	85.3	77.4
SM8S51AG	SM8S51CAG	51.0	56.7	62.7	5.0	10	150	80.1	82.4
SM8S54AG	SM8S54CAG	54.0	60.0	66.3	5.0	10	150	75.8	87.1
SM8S58AG	SM8S58CAG	58.0	64.4	71.2	5.0	10	150	70.5	93.6
SM8S60AG	SM8S60CAG	60.0	66.7	73.7	5.0	10	150	68.2	96.8
SM8S64AG	SM8S64CAG	64.0	71.1	78.6	5.0	10	150	64.1	103.0
SM8S70AG	SM8S70CAG	70.0	77.8	86.0	5.0	10	150	58.4	113.0
SM8S75AG	SM8S75CAG	75.0	83.3	92.1	5.0	10	150	54.5	121.0
SM8S78AG	SM8S78CAG	78.0	86.7	95.8	5.0	10	150	52.4	126.0
SM8S85AG	SM8S85CAG	85.0	94.4	104.0	5.0	10	150	48.2	137.0
*Notes:* 1. Surge current waveform is defined at 10/1000μS waveform. 2. For all types maximum V_F = 1.8 V at I_F = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

SOCAY SM8S Transient suppression diode application:
Traffic recorder
ADAS Advanced Driver Assistance System
OBD vehicle diagnostic system
DMS Driver condition monitoring Department
Car LED
Cigarette lighter
Car audio
