Automotive Protection TVS Circuit Protection Components Diodes SM8S22CAG

500PCS
MOQ
Negotiable
Price
Automotive Protection TVS Circuit Protection Components Diodes SM8S22CAG
Features Gallery Product Description Request A Quote
Features
Specifications
Package Type: DO-218AB
Vr: 22V
Ir@Vr @25℃: 5μA
Ir@Vr @175℃: 150μA
Vbr@It (Min.): 24.4V
Vbr@It (Max.): 26.9V
It: 5mA
Vc@Ipp: 35.5V
Ipp: 186A
Highlight:

TVS Circuit Protection Components

,

Automotive Circuit Protection Components

,

TVS Circuit Protection Diode
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: SM8S22CAG
Document: Product Brochure PDF
Payment & Shipping Terms
Delivery Time: 5-8 work days
Product Description

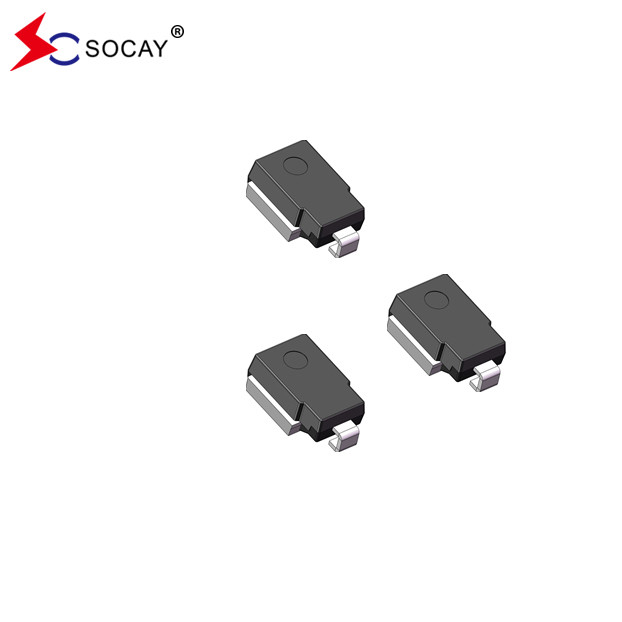

SOCAY TVS Diodes SM8S22CAG, Excellent Clamping Capability



DATASHEET:  SM8SXXG Series_v2309.1.pdf



Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi   Min. Max.
SM8S22AG SM8S22CAG 22.0 24.4 26.9 5.0 10 150 186 35.5

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.



Features:

Optimized glass passivated chip.

TJ=175℃ capability suitable for high reliability and automotive requirement.

6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.

Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).

Meet AEC-Q101 qualified.

Low leakage current.

Low forward voltage drop.

Excellent clamping capability.



Application:

Automotive Protection.
