RoHS Compliant TVS Circuit Protection Products Surface Mount SM8S24AG

RoHS Compliant, Surface Mount Transient Transient Voltage Suppressor SM8S24AG

DATASHEET:  SM8SXXG Series_v2309.1.pdf

Recently, SOCAY launched the SM8S24AG series of automotive TVS diode products, aiming to solve the problem of surge suppression in load dump tests encountered in automobiles. The SM8S24A Gproduct has extremely fast response time (sub-nanosecond level) and very high surge absorption. ability. Specifically used to protect sensitive electronic equipment in automotive electronic circuit applications from transient voltages caused by transient voltage events. The product complies with AEC-Q101 certification standards.

Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Characteristic

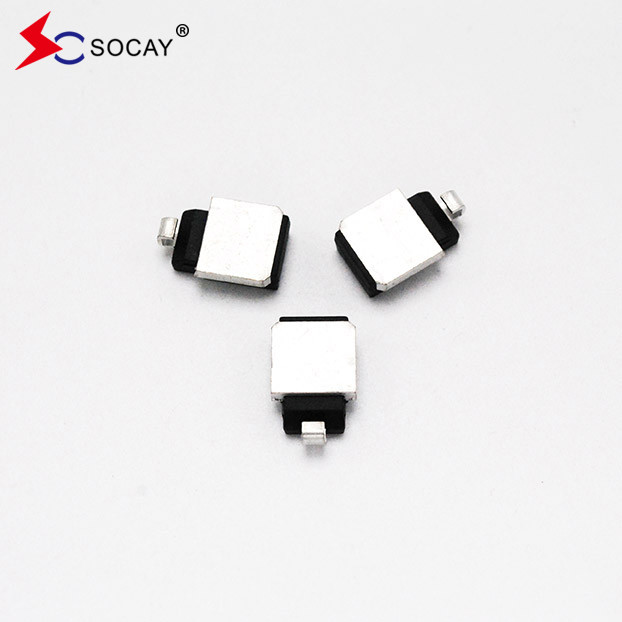

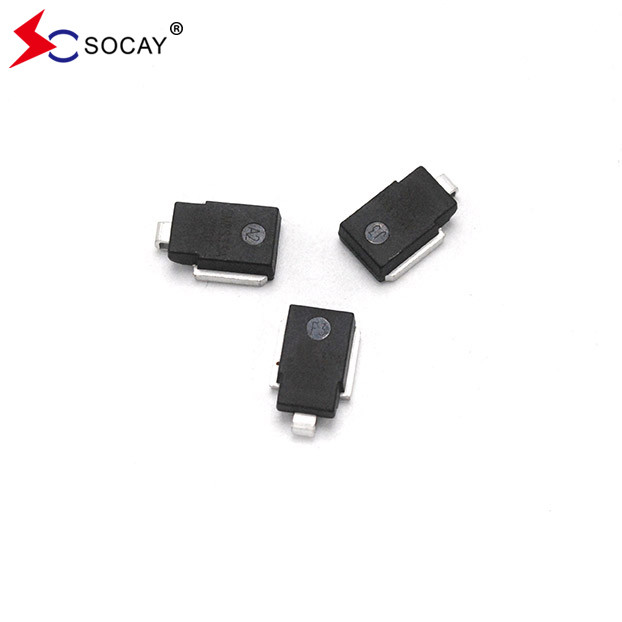

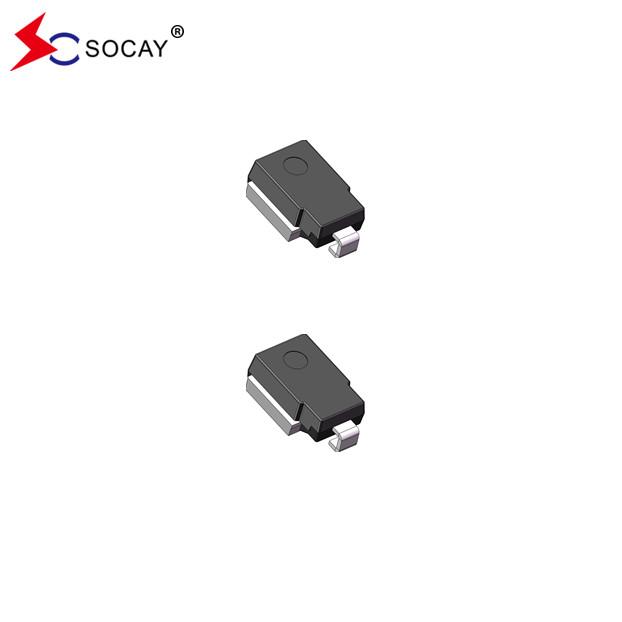

> Adopts standard surface mount DO-218AB package
> Peak pulse power at 10×1000μs waveform is 6600W, repetition frequency (duty cycle): 0.01%
> Fast response time: typically less than 1.0ps from 0 volts to VBR minimum
> Excellent clamping capability
> Small leakage current
> Meet AEC-Q101 certification standards

> Halogen-free and compliant with RoHS and Reach test standards

Application
> I/O interface
> AC/DC power supply
> Low frequency signal transmission line (RS232, RS485, etc.)
