Item: Spark Gap Protectors

Package Size: SMD

VS: 140(119~221)V

IR/DC: 100M/50V

C: 1.0pF

8/20μS: 1000A

Surge Life Test: 10KV / 150A , >200T

Highlight:

Spark Gap Protectors SPG

SMD Spark Gap Protectors

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SCB-141N-SMD

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 5-8 work days

Gallery

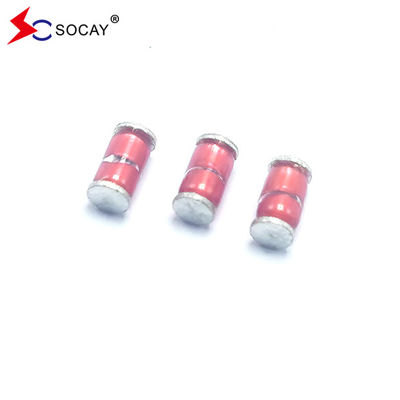

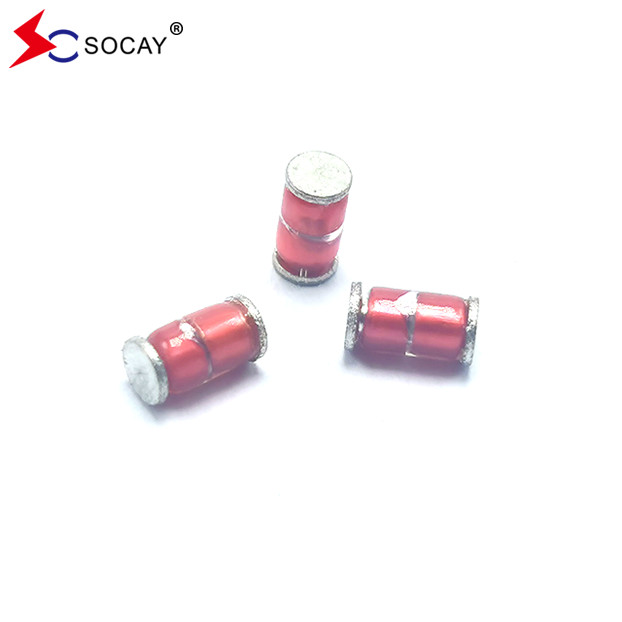

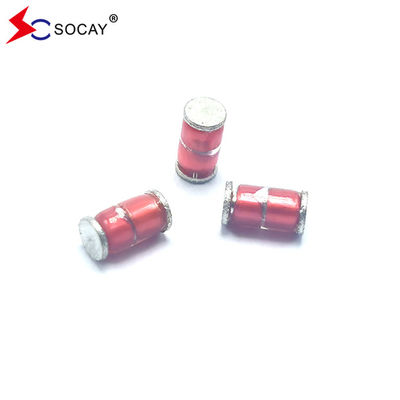

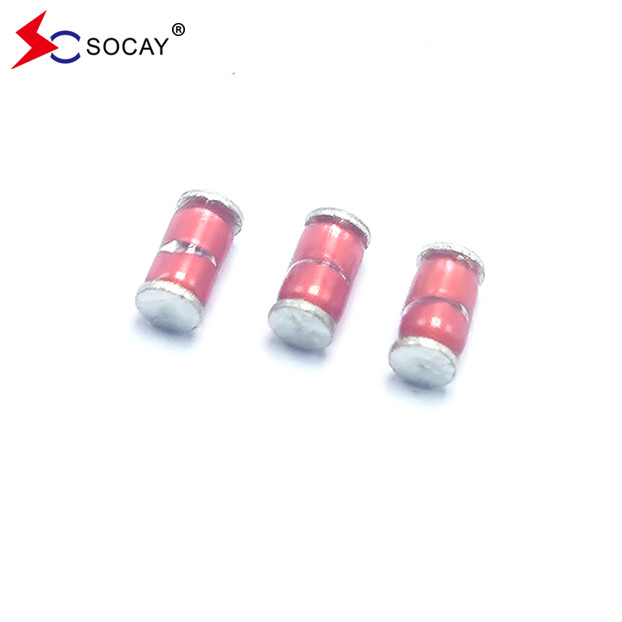

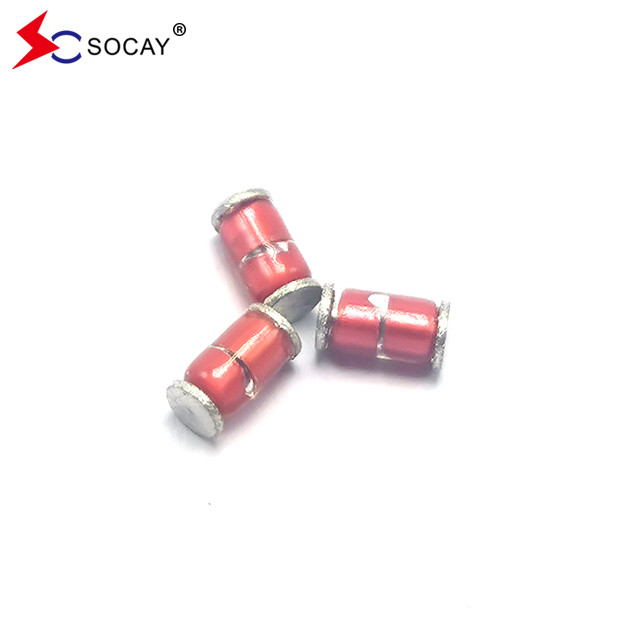

SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD

Product Description

SOCAY SCB-141N-SMD SMD Spark Gap Protectors (SPG) 1000A @8/20μS IR/DC 100M/50V

DATASHEET: SCB-SMD_v2204.1.pdf

Part Number	DC Spark-over Voltage Vs(V)	Minimum Insulation Resistance IR(OHM)/DC	Maximum Capacitance 1KHZ-6Vmax C (pF)	Surge Current Capacity 8/20 μS	Surge Life Test
SCB-141N-SMD	140(98~182)	100M / 50V	1.0	1000A	10KV / 150A , >200T
SCB-181N-SMD	180(126~234)	100M / 50V	1.0	1000A	10KV / 150A , >200T
SCB-201M-SMD	200(160~240)	100M /100V	1.0	1000A	10KV / 150A , >200T
SCB-301M-SMD	300(240~360)	100M /100V	1.0	1000A	10KV / 150A , >200T
SCB-401M-SMD	400(320~480)	100M / 250V	1.0	1000A	10KV / 150A , >200T
SCB-501M-SMD	500(400~600)	100M / 250V	1.0	1000A	10KV / 150A , >200T

SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD 0

I.Selection method /Model Name

1,To know the customer's operating voltage, product, application port, protection level.
2,Minimum DC breakdown voltage > 1.2 times the normal DC operating voltage.
3,Select the package, size and flow rate of the device according to the application port and protection level.

Applications:

All kinds of power products, isolators, inverters, medical equipment, 485 converter, communication products, security products.

Items	Test Method	Standard
DC Spark-over Voltage	Measure starting discharge voltage (Vs) by gradually increasing applied DC voltage. Test current is 0.5mA max. And the DC voltage ascends up within 100V/s(Vs＜1000V) or 500V/s(Vs≥1000V).	Rate-of-change, within±30% insulation resistance & capacitance, conformed to rated spec.
Insulation Resistance	Measure the insulation resistance across the terminal at regular voltage. But the test voltage doesn’t over the DC spark-over voltage.
Capacitance	Measure the electrostatic capacitance by applying a voltage of less than 6V (at 1KHz) between terminals.
Static Life	10KV with 1500pf condenser is discharged through 2KΩ resistor. 200 times at an interval of 10sec.	∣△Vs/Vs∣≤30% Characteristics of other items must meet the specified value
Surge Current Capacity	1.2/50μs & 8/20μs, 1000A, electrically connected with a resistor (1~2 Ω), ±5 times, each time interval 60 seconds. Thereafter, outer appearance shall be visually examined.	No crack and no failures
Cold Resistance	Measurement after -40℃/1000 HRS & normal temperature/2 HRS.	Features are conformed to rated spec
Heat Resistance	Measurement after 125℃ /1000 HRS & normal temperature/2 HRS.
Humidity Resistance	Measurement after humidity 90~95℃(45℃ ) /1000 HRS & normal temperature/2 HRS.
Temperature Cycle	10 times repetition of cycle -40℃ /30min →normal, temp/2 min →125℃/30min, measurement after normal temp/2 HRS.
Solder Ability	Apply flux and immerse in molten solder 230±5℃ for 3sec up to the point of 1.5mm from body. Check for solder adhesion.	Lead wire is evenly covered by solder
Solder Heat	Measurement after lead wire is dipped up to the point of 1.5mm from body into 260±5℃ solder for 10sec	Conformed to rated spec
Pull Strength	Apply 0.5kg load for 10sec	Lead shall not pull out to snap
Flexural Strength	Bend lead wire at the point of 2mm from body under 0.25 load and back to its original point. Repeat 1 time.	Lead shall not pull out to snap

SMD Spark Gap Protectors SPG 1000A 100M/50V SOCAY SCB-141N-SMD 1
