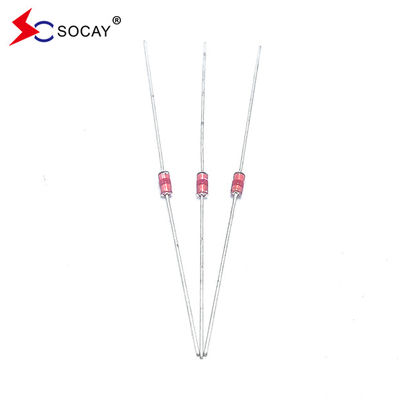

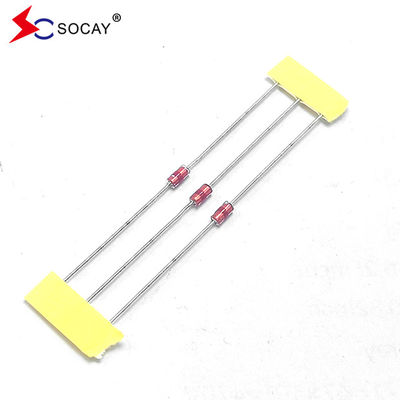

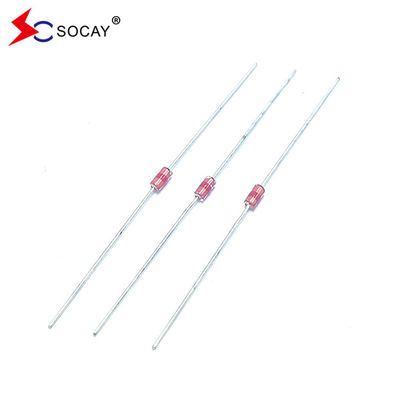

Axial Lead Spark Gap Protectors (SPG) SCA-141N Vs 140(98~182)V 1.0pF @8/20μS 500A
DATASHEET: SCA_v2204.1.pdf
Description
SPG like Gas discharge tube, its use of glass packaging, its main features are: small volume, small electrode capacitance, high insulation resistance, breakdown voltage optional range, slow reaction speed (high residual voltage).
| Part Number |
DC Spark-over
Voltage
Vs(V)
|
Minimum
Insulation
Resistance
IR(OHM)/DC
|
Maximum
Capacitance
1KHZ-6Vmax
C (pF)
|
Surge Current
Capacity
8/20 μS
|
Surge Life Test |
| SCA-141N |
140(98~182) |
100M / 50V |
1.0 |
500A |
10KV / 100A , >200T |
| SCA-201M |
200(160~240) |
100M /100V |
1.0 |
500A |
10KV / 100A , >200T |
| SCA-301M |
300(240~360) |
100M /100V |
1.0 |
500A |
10KV / 100A , >200T |
| SCA-401M |
400(320~480) |
100M / 250V |
1.0 |
500A |
10KV / 100A , >200T |
| SCA-501M |
500(400~600) |
100M / 250V |
1.0 |
500A |
10KV / 100A , >200T |
| SCA-601M |
600(480~720) |
100M / 250V |
1.0 |
500A |
10KV / 100A , >200T |
| SCA-102M |
1000(800~1200) |
100M / 500V |
1.0 |
500A |
10KV / 100A , >200T |
Features:
|
u Approximately zero leaking current before clamping voltage
u Less decay at on/off state.
u High capability to withstand repeated lightning strikes.
u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).
u RoHS compliant.
u Bilateral symmetrical.
u Temperature, humidity and lightness insensitive.
u Working temperature: -45℃~ +85 ℃
u Storage temperature: -45℃~ +85℃
u Meets MSL level 1, per J-STD-020
|
Working Principle
In parallel on the circuit, when the device does not operate, the resistance value is high (GΩ), low equivalent capacitance can be regarded as open circuit, almost no impact on the circuit. When there is an abnormal pulse, the internal resistance drops instantaneously after reaching the operating voltage value, and the current is released instantaneously. When the abnormal high voltage disappears, it returns to the high resistance state, and the circuit works normally.
Applications:
All kinds of power products,
isolators, inverters, medical equipment,
485 converter, communication products,
security products.
| Part Number |
Color Code1 |
Color Code2 |
Color Code3 |
| SCA-141N |
Yellow |
Black |
- |
| SCA-201M |
Red |
- |
- |
| SCA-301M |
Orange |
- |
- |
| SCA-401M |
Yellow |
- |
- |
| SCA-501M |
Green |
- |
- |
| SCA-601M |
Blue |
- |
- |
| SCA-102M |
Black |
- |
- |
Hand Soldering
Solder iron temperature: 350±5℃
Heating time: 3 seconds max.
1.FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
