Name: SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester
Brand: SOCAY
SKU: SCBE-141N
Rating: 4.6 (142 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Spark Gap Protectors (SPG)

Package Type: Axial Lead

VS: 140(98~182)V

IR/DC: 100M/50V

C: 1.0pF

8/20μS: 1000A

Surge Life Test: 10KV / 150A , >200T

Highlight:

Glass Discharge Tube 140 VS

Axial Lead Glass Discharge Tube

Axial Lead Spark Gap Arrester

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: REACH,RoHS,ISO

Model Number: SCBE-141N

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: AMMO packing bulk

Delivery Time: 5-8 work days

Gallery

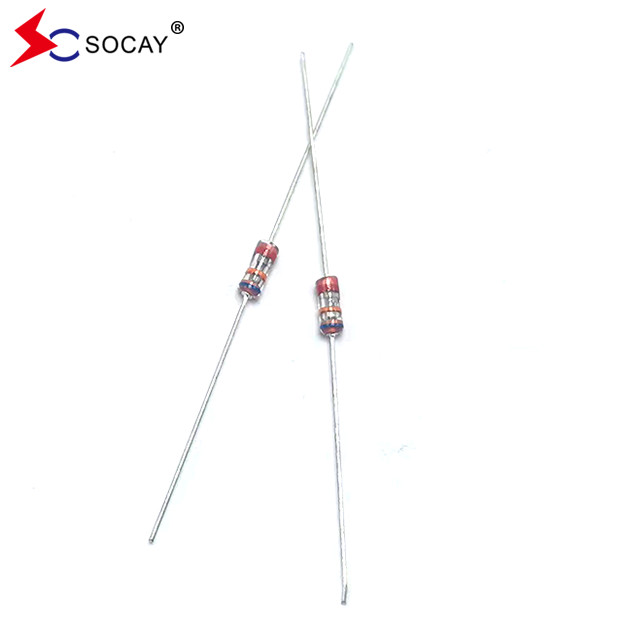

SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester

Product Description

SOCAY SCBE Series Glass Discharge Tube SCBE-141N SPG 140VS Low Electrode Capacitance (≤1.0pF)

DATASHEET: SCBE_v2204.1.pdf

Part Number	DC Spark-over Voltage Vs(V)	Minimum Insulation Resistance IR(OHM)/DC	Maximum Capacitance 1KHZ-6Vmax C (pF)	Surge Current Capacity 8/20 μS	Surge Life Test
SCBE-141N	140(98~182)	100M / 50V	1.0	1000A	10KV / 150A , >200T
SCBE-201M	200(160~240)	100M /100V	1.0	1000A	10KV / 150A , >200T
SCBE-251M	250(200~300)	100M /100V	1.0	1000A	10KV / 150A , >200T
SCBE-301M	300(240~360)	100M /100V	1.0	1000A	10KV / 150A , >200T
SCBE-401M	400(320~480)	100M / 250V	1.0	1000A	10KV / 150A , >200T
SCBE-501M	500(400~600)	100M / 250V	1.0	1000A	10KV / 150A , >200T
SCBE-601M	600(480~720)	100M / 250V	1.0	1000A	10KV / 150A , >200T
SCBE-102M	1000(800~1200)	100M / 500V	1.0	1000A	10KV / 150A , >200T
SCBE-122M	1200(960~1440)	100M / 500V	1.0	1000A	10KV / 150A , >200T

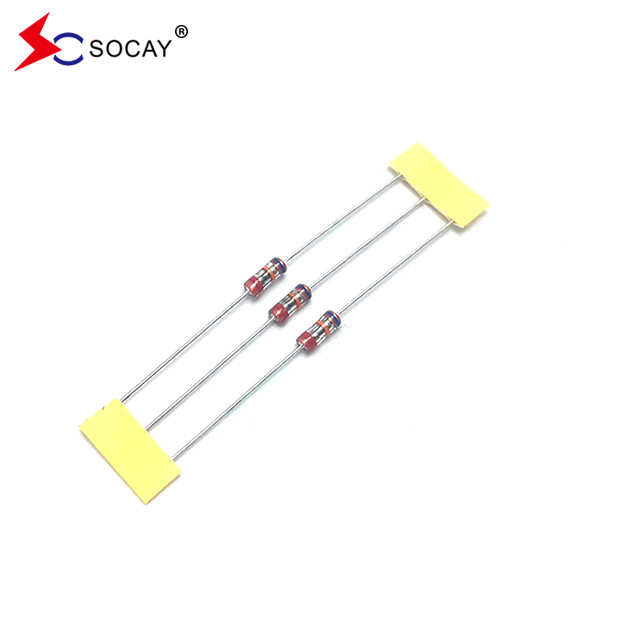

SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester 0

Features:

u Approximately zero leaking current before clamping voltage

u Less decay at on/off state.

u High capability to withstand repeated lightning strikes.

u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).

u RoHS compliant.

u Bilateral symmetrical.

u Temperature, humidity and lightness insensitive.

u Working temperature: -45℃~ +125 ℃

u Storage temperature: -45℃~ +125 ℃

u Meets MSL level 1, per J-STD-020

Applications:

u Power Supplies

u Motor sparks eliminating

u Relay switching spark absorbing

u Data line pulse guarding

u Electronic devices requiring UL497A and UL497B compliant

u Telephone/Fax/Modem

u High frequency signal transmitters/receivers

u Satellite antenna

u Radio amplifiers

u Alarm systems

u Cathode ray tubes in Monitors/TVs

Part Number	Color Code1	Color Code2	Color Code3
SCBE-141N	Brown	Red	White
SCBE-201M	Red	Orange	Blue
SCBE-251M	Red	Orange	Green
SCBE-301M	Orange	Red	White
SCBE-401M	Yellow	Black	Brown
SCBE-501M	Green	Yellow	Orange
SCBE-601M	Blue	Red	Yellow
SCBE-102M	Black	Orange	Red
SCBE-122M	Black	Red	Orange

Hand Soldering
Solder iron temperature: 350±5℃
Heating time: 3 seconds max.

General attention to soldering

High soldering temperatures and long soldering times can cause leaching of the termination, decrease in adherence strength, and the change of characteristic may occur.
For soldering, please refer to the soldering curves above. However, please keep exposures to temperatures exceeding 200℃ to fewer than 50 seconds.
Please use a mild flux (containing less than 0.2wt% CI). Also, if the flux is water soluble, be sure to wash thoroughly to remove any residue from the underside of components that could affect resistance.

Cleaning
When using ultrasonic cleaning, the board may resonate if the output power is too high. Since this vibration can cause cracking or a decrease in the adherence of the termination, we recommend that you use the conditions below:
Frequency: 40kHz max.
Output power: 20W/liter
Cleaning time: 5 minutes max.

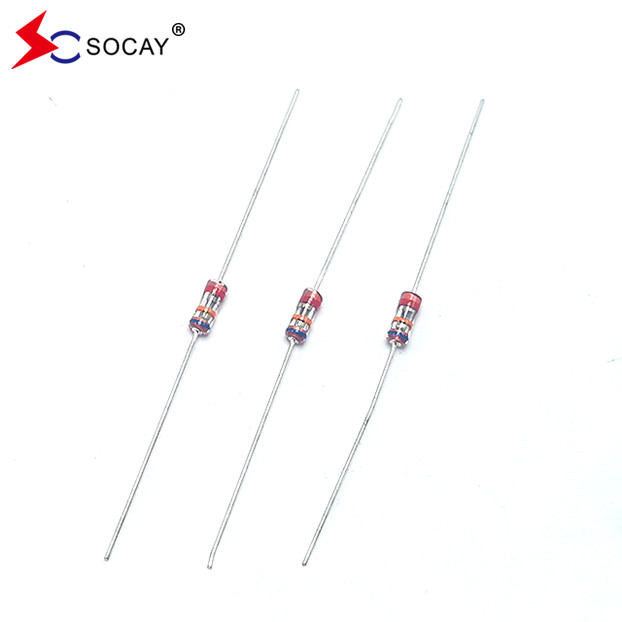

SCBE-141N Axial Lead Glass Discharge Tube SPG 140 VS Spark Gap Arrester 1
