Zov / Zinc Metal Oxide Varistor 220K 5D 7D 10D 14D 15D 20D 25D 32D 40D 50D

1000PCS
MOQ
Negotiable
Price
Zov / Zinc Metal Oxide Varistor 220K 5D 7D 10D 14D 15D 20D 25D 32D 40D 50D
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: MOV Varistor
Lenghth: Ф25mm
VAC: 550V
VDC: 745V
Varistor Voltage: 910(819~1001)V
IP: 150A
VC: 440V
Rated Power: 1.0W
Typ. Capacitance: 1650pF
Withstanding Surge Current: 15KA (1 Time)
Material: Zinc Oxide
Highlight:

Metal Oxide Varistor 220K

,

Metal Oxide Varistor 10D

,

Zinc Oxide Varistor 40D
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: VDE,UL,REACH,RoHS,ISO
Model Number: 25D911K/25D911KJ
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: taping.AMMO packing ,bulk
Delivery Time: 1-3weeks
Product Description

Wholesale Zov / SOCAY / Zinc Oxide Varistor 10D-220K (5D 7D 10D 14D 15D 20D 25D 32D 40D 50D ) In Stock



DATASHEET:  25D Series_v2306.1.pdf



Introduction



The most used voltage limiting device is the varistor MOV/MLV, which is mainly made of zinc oxide and a variety of trace metal oxides, which are mixed and moulded.





Type Number Maximum Allowable voltage

Varistor

Voltage

Maximum

Clamping

Voltage

 Withstanding Surge Current 8/20μS

Rated

Power



Energy

(10/1000μs)



 Capacitance
Standard

High

Surge

VAC

(V)

VDC

(V)

V 1mA

(V)

IP

(A)

VC

(V)

 Standard (A)

High Surge

(A)

 (W) (J)

@1KHZ

(pF)
              1 Time 1 Time
25D101K 25D101KJ 60 85 100(90-110) 150 165 10000 20000 1.4 100 6300
25D201K 25D201KJ 130 170 200(185-225) 150 330 15000 20000 1.0 215 2000
25D221K 25D221KJ 140 180 220(198-242) 150 360 15000 20000 1.0 235 1800
25D241K 25D241KJ 150 200 240(216-264) 150 395 15000 20000 1.0 245 1650
25D271K 25D271KJ 175 225 270(243-297) 150 455 15000 20000 1.0 260 1500
25D301K 25D301KJ 190 250 300(270-330) 150 505 15000 20000 1.0 275 1300
25D331K 25D331KJ 210 275 330(297-363) 150 550 15000 20000 1.0 295 1200
25D361K 25D361KJ 230 300 360(324-396) 150 595 15000 20000 1.0 305 1100
25D391K 25D391KJ 250 320 390(351-429) 150 650 15000 20000 1.0 335 1000
25D431K 25D431KJ 275 350 430(387-473) 150 710 15000 20000 1.0 365 930
25D471K 25D471KJ 300 385 470(423-517) 150 775 15000 20000 1.0 390 850
25D511K 25D511KJ 320 415 510(459-561) 150 845 15000 20000 1.0 440 780
25D561K 25D561KJ 350 460 560(504-616) 150 920 15000 20000 1.0 490 715
25D621K 25D621KJ 385 505 620(558-682) 150 1025 15000 20000 1.0 540 650
25D681K 25D681KJ 420 560 680(612-748) 150 1120 15000 20000 1.0 570 600
25D751K 25D751KJ 460 615 750(675-825) 150 1240 15000 20000 1.0 590 530
25D781K 25D781KJ 485 640 780(702-858) 150 1290 15000 20000 1.0 620 510
25D821K 25D821KJ 510 670 820(738-902) 150 1355 15000 20000 1.0 655 500
25D911K 25D911KJ 550 745 910(819-1001) 150 1500 15000 20000 1.0 726 440
25D102K 25D102KJ 625 825 1000(900-1100) 150 1650 15000 20000 1.0 685 650
25D112K 25D112KJ 680 895 1100(990-1210) 150 1815 15000 20000 1.0 770 600
25D122K 25D122KJ 750 990 1200(1080-1320) 150 1980 15000 20000 1.0 770 550

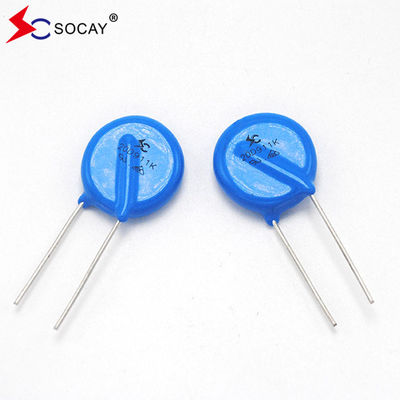

Zov / Zinc Metal Oxide Varistor 220K 5D 7D 10D 14D 15D 20D 25D 32D 40D 50D 0



Description:

The 25D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 20KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.





Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃
Working Surface Temperature +115℃
Insulation Resistance > 100MΩ
Coating (Epoxy Resin)

Flame-Retardant to

UL 94 V-0





Coating Epoxy Resin
Lead Wire The Copper Wire
Electrode Silver Solder
Disk Zinc Oxide





Dimension Part Number Bag Small Carton Carton
25D 25DXXXXX 100 PCS 1000 PCS 2000 PCS

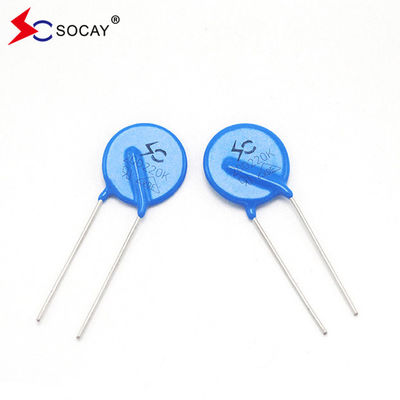

Zov / Zinc Metal Oxide Varistor 220K 5D 7D 10D 14D 15D 20D 25D 32D 40D 50D 1

Zov / Zinc Metal Oxide Varistor 220K 5D 7D 10D 14D 15D 20D 25D 32D 40D 50D 2

FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products
