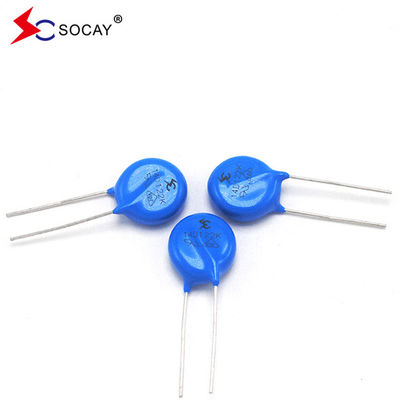

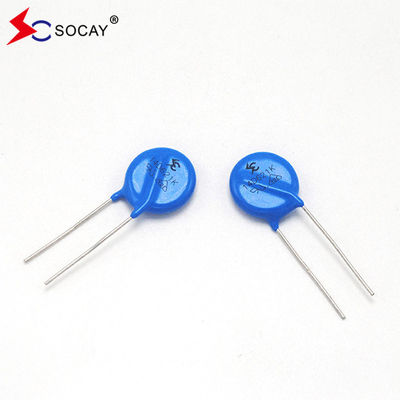

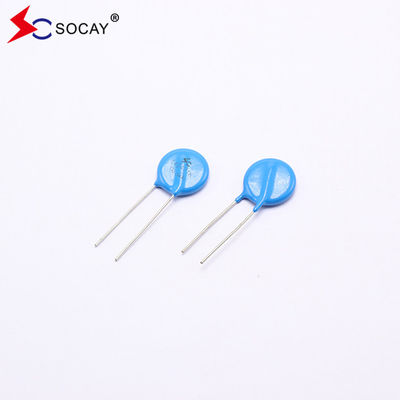

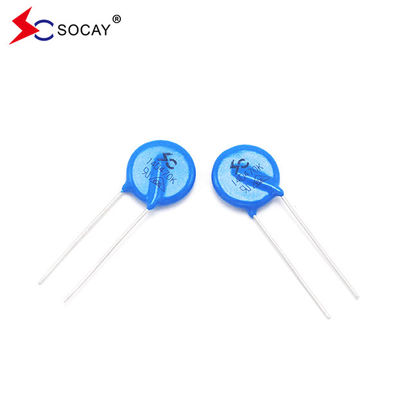

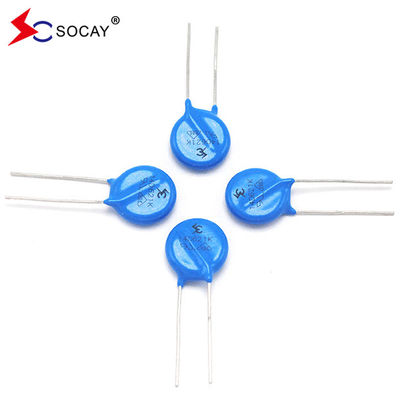

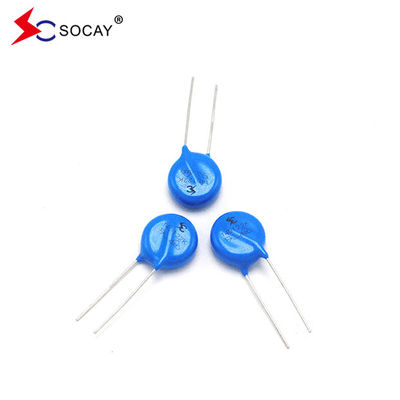

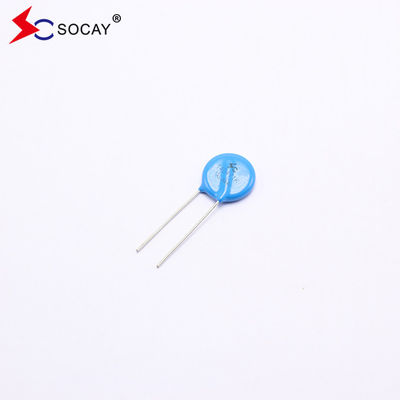

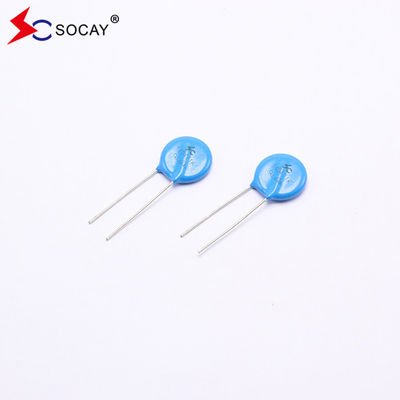

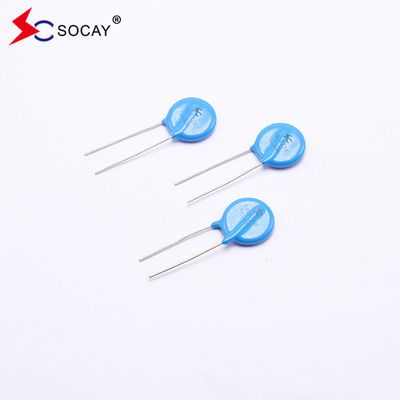

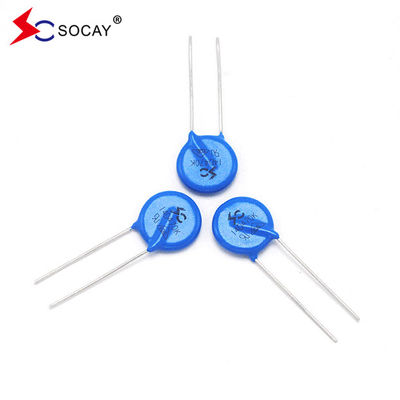

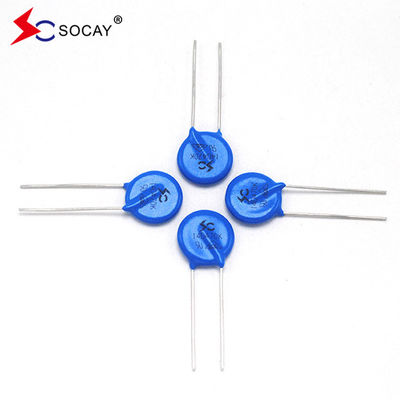

Ф14mm Metal Oxide Varistor 14D820K / 14D820KJ For Lower DC Voltage Applications

500PCS
MOQ
Negotiable
Price
Ф14mm Metal Oxide Varistor 14D820K / 14D820KJ For Lower DC Voltage Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Metal Oxide Varistor
Dimensions: Ф14mm
VAC: 50V
VDC: 65V
Varistor Voltage: 82(74~90)V
IP: 50A
VC: 135V
Rated Power: 0.6W
Typ. Capacitance: 2400pF
Withstanding Surge Current: 4.5KA (1 Time)
Highlight:

Metal Oxide Varistor 14D820KJ

,

14mm Metal Oxide Varistor

,

14D820K
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: 14D820K/14D820KJ
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: AMMO packing ,bag
Delivery Time: 2weeks
Product Description

Ф14mm Metal Oxide Varistor 14D820K / 14D820KJ For Lower DC Voltage Applications



DATASHEET:  14D Series_v2308.1.pdf



Type Number Maximum Allowable Voltage Varistor Voltage

Maximum

Clamping

Voltage

Withstanding

Surge

Current

Maximum

Energy

(10/1000μs)

Rated

Power

 Typical Capacitance (Reference)
Standard High Surge VAC (V) VDC (V)

V1mA

(V)

 IP (A) VC (V)

I(A)

Standard

I(A)

High Surge

(J)

Standard

(J)

High Surge

 (W) @1KHZ (pF)
              1 Time 2 Times 1 Time 2 Times
14D180K 14D180KJ 11 14 18(15~21.6) 10 36 1000 500 2000 1000 4.0 7.0 0.1 11100
14D220K 14D220KJ 14 18 22(19.5~26) 10 43 1000 500 2000 1000 5.0 8.0 0.1 9100
14D270K 14D270KJ 17 22 27(24~30) 10 53 1000 500 2000 1000 6.0 10.0 0.1 7400
14D330K 14D330KJ 20 26 33(29.5~36.5) 10 66 1000 500 2000 1000 7.5 12.0 0.1 6100
14D390K 14D390KJ 25 31 39(35~43) 10 77 1000 500 2000 1000 8.6 13.0 0.1 5100
14D470K 14D470KJ 30 38 47(42~54) 10 93 1000 500 2000 1000 10.0 17.0 0.1 4300
14D560K 14D560KJ 35 45 56(50~62) 10 100 1000 500 2000 1000 11.0 20.0 0.1 3600
14D680K 14D680KJ 40 56 68(61~75) 10 135 1000 500 2000 1000 14.0 24.0 0.1 2900
14D820K 14D820KJ 50 65 82(74~90) 50 135 4500 2500 6000 5000 22.0 27.0 0.6 2400
14D101K 14D101KJ 60 85 100(90~110) 50 165 4500 2500 6000 5000 28.0 33.0 0.6 2000
14D121K 14D121KJ 75 100 120(108~132) 50 200 4500 2500 6000 5000 32.0 40.0 0.6 1700
14D151K 14D151KJ 95 125 150(135~165) 50 250 4500 2500 6000 5000 40.0 53.0 0.6 1300
14D181K 14D181KJ 115 150 180(162~198) 50 300 4500 2500 6000 5000 50.0 60.0 0.6 1100
14D201K 14D201KJ 130 170 200(180~220) 50 340 4500 2500 6000 5000 57.0 70.0 0.6 1000
14D221K 14D221KJ 140 180 220(198~242) 50 360 4500 2500 6000 5000 60.0 78.0 0.6 900
14D241K 14D241KJ 150 200 240(216~264) 50 395 4500 2500 6000 5000 63.0 84.0 0.6 830
14D271K 14D271KJ 175 225 270(243~297) 50 455 4500 2500 6000 5000 70.0 99.0 0.6 740
14D301K 14D301KJ 190 250 300(270~330) 50 500 4500 2500 6000 5000 77.0 108 0.6 670
14D331K 14D331KJ 210 275 330(297~363) 50 550 4500 2500 6000 5000 85.0 115 0.6 610
14D361K 14D361KJ 230 300 360(324~396) 50 595 4500 2500 6000 5000 93.0 130 0.6 560
14D391K 14D391KJ 250 320 390(351~429) 50 650 4500 2500 6000 5000 100 140 0.6 510
14D431K 14D431KJ 275 350 430(387~473) 50 710 4500 2500 6000 5000 115 155 0.6 460
14D471K 14D471KJ 300 385 470(423~517) 50 775 4500 2500 6000 5000 125 175 0.6 430
14D511K 14D511KJ 320 415 510(459~561) 50 845 4500 2500 6000 5000 125 180 0.6 390
14D561K 14D561KJ 350 460 560(504~616) 50 925 4500 2500 6000 5000 125 185 0.6 360
14D621K 14D621KJ 385 505 620(558~682) 50 1025 4500 2500 6000 5000 125 190 0.6 320
14D681K 14D681KJ 420 560 680(612~748) 50 1120 4500 2500 6000 5000 130 200 0.6 290
14D751K 14D751KJ 460 615 750(675~825) 50 1240 4500 2500 6000 5000 143 210 0.6 270
14D781K 14D781KJ 485 640 780(702~858) 50 1290 4500 2500 6000 5000 148 220 0.6 260
14D821K 14D821KJ 510 670 820(738~902) 50 1355 4500 2500 6000 5000 157 235 0.6 240
14D911K 14D911KJ 550 745 910(819~1001) 50 1500 4500 2500 6000 5000 175 255 0.6 220
14D102K 14D102KJ 625 825 1000(900~1100) 50 1650 4500 2500 6000 5000 190 280 0.6 200
14D112K 14D112KJ 680 895 1100(990~1210) 50 1814 4500 2500 6000 5000 213 310 0.6 180
14D122K 14D122KJ 750 990 1200(1080~1320) 50 1980 4500 2500 6000 5000 213 310 0.6 150
14D142K 14D142KJ 880 1140 1400(1260~1540) 50 2310 4500 2500 6000 5000 238 327 0.6 150
14D162K 14D162KJ 1000 1280 1600(1400~1760) 50 2640 4500 2500 6000 5000 243 331 0.6 140
14D182K 14D182KJ 1000 1465 1800(1620~1980) 50 2970 4500 2500 6000 5000 250 335 0.6 130





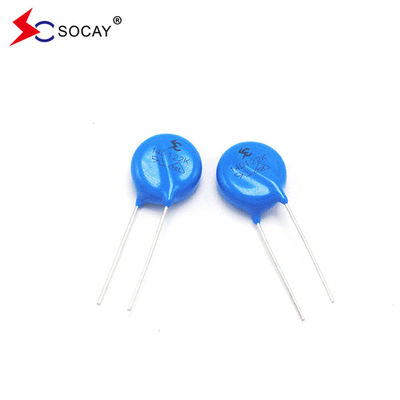

Ф14mm Metal Oxide Varistor 14D820K / 14D820KJ For Lower DC Voltage Applications 0







Description:

The 14D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 6KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.



Classification:
SMD:0402,0603,0805,1206,1210,1812,2220

DIP:5D,7D,10D,14D,20D,25D,32D

Current:1A~15KA

The smaller the size, the lower the price,
The lower the throughput, the larger the size,
The higher the throughput, the more expensive,
The higher the voltage, the thicker the tube.

Response time≤10NS



Applications:



Power protection, Switches, POS machines, Lightning arresters, Building intercoms, Monitoring systems, Parking cards, Transmission systems, Instrumentation,Meters, Communication products, Control panels.







Material No Radioactive Material
Operating Temperature -40℃ ~ +85℃
Storage Temperature -55℃ ~ +125℃
Body Nickel Plated
Leads Tin Plated
Devices with No lead Nickel Plated





Part Number Quantity Packaging Option Packaging Specification
14DXXXXX 500 Plastic bag Bulk Pack









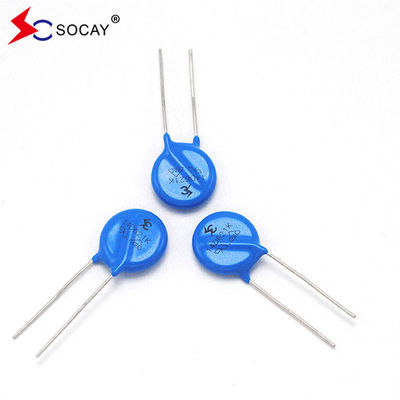

Ф14mm Metal Oxide Varistor 14D820K / 14D820KJ For Lower DC Voltage Applications 1



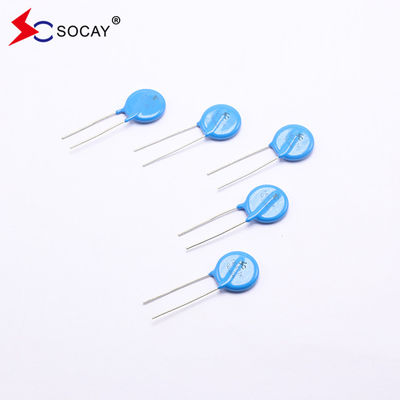

Ф14mm Metal Oxide Varistor 14D820K / 14D820KJ For Lower DC Voltage Applications 2
