Description: DIP Varistion
Dimensions: Ф20mm
VAC: 60V
VDC: 85V
Varistor Voltage: 100(90~110)V
IP: 100A
VC: 165V
Rated Power: 1.0W
Typ. Capacitance: 4000pF
Withstanding Surge Current: 6.5KA (1 Time)
Usage: Circuit Protection
Highlight:

Metal Oxide Varistor 20D101K

,

Metal Oxide Varistor 20D101KJ
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: UL,REACH,RoHS,ISO
Model Number: 20D101K/20D101KJ
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Bulk,AMMO packing
Delivery Time: 1-2weeks
Product Description

Ф20mm Series 20D101K/20D101KJ Metal Oxide Varistor Wide Operating Voltage (V1mA) Range from 18V to 1800V



DATASHEET:  20D Series_v2306.1.pdf



1.Working Standard



Connected in parallel to the circuit, when the device is inactive, the resistance value is high and can be considered as an open circuit with little or no effect on the circuit. When there is an abnormal pulse, the resistance value drops instantly and the current is released momentarily. When the abnormal high voltage disappears, it returns to its high resistance state and the circuit works normally.



Description :semiconductor components





Type Number Maximum Allowable voltage Varistor Voltage

Maximum

Clamping

Voltage

Withstanding

Surge

Current

Maximum

Energy

(10/1000μs)

Rated

Power

 Typical Capacitance (Reference)
Standard High Surge VAC (V) VDC (V)

V1mA

(V)

 IP (A) VC (V)

I(A)

Standard

I(A)

High Surge

(J)

Standard

(J)

High Surge

 (W) @1KHZ (pf)
              1 Time 2 Times 1 Time 2 Times
20D180K 20D180KJ 11 14 18(15~21.6) 20 36 2000 1000 3000 1000 11 13 0.2 28500
20D220K 20D220KJ 14 18 22(19.5~26) 20 43 2000 1000 3000 1000 14 16 0.2 18500
20D270K 20D270KJ 17 22 27(24~30) 20 53 2000 1000 3000 1000 16 19 0.2 13000
20D330K 20D330KJ 20 26 33(29.5~36.5) 20 66 2000 1000 3000 1000 23 24 0.2 11500
20D390K 20D390KJ 25 31 39(35~43) 20 77 2000 1000 3000 1000 26 28 0.2 8500
20D470K 20D470KJ 30 38 47(42~54) 20 93 2000 1000 3000 1000 30 34 0.2 7400
20D560K 20D560KJ 35 45 56(50~62) 20 100 2000 1000 3000 1000 41 41 0.2 6500
20D680K 20D680KJ 40 56 68(61~75) 20 135 2000 1000 3000 1000 46 49 0.2 5800
20D820K 20D820KJ 50 65 82(74~90) 100 135 6500 4000 10000 7000 38 56 1.0 4900
20D101K 20D101KJ 60 85 100(90~110) 100 165 6500 4000 10000 7000 45 70 1.0 4000
20D121K 20D121KJ 75 100 120(108~132) 100 200 6500 4000 10000 7000 55 85 1.0 3300
20D151K 20D151KJ 95 125 150(135~165) 100 250 6500 4000 10000 7000 70 106 1.0 2700
20D181K 20D181KJ 115 150 180(162~198) 100 300 6500 4000 10000 7000 85 130 1.0 2200
20D201K 20D201KJ 130 170 200(180~220) 100 340 6500 4000 10000 7000 95 140 1.0 2000
20D221K 20D221KJ 140 180 220(198~242) 100 360 6500 4000 10000 7000 100 155 1.0 1800
20D241K 20D241KJ 150 200 240(216~264) 100 395 6500 4000 10000 7000 108 168 1.0 1650
20D271K 20D271KJ 175 225 270(243~297) 100 455 6500 4000 10000 7000 127 190 1.0 1500
20D301K 20D301KJ 190 250 300(270~330) 100 500 6500 4000 10000 7000 136 210 1.0 1300
20D331K 20D331KJ 210 275 330(297~363) 100 550 6500 4000 10000 7000 150 228 1.0 1200
20D361K 20D361KJ 230 300 360(324~396) 100 595 6500 4000 10000 7000 163 255 1.0 1100
20D391K 20D391KJ 250 320 390(351~429) 100 650 6500 4000 10000 7000 180 275 1.0 1000
20D431K 20D431KJ 275 350 430(387~473 100 710 6500 4000 10000 7000 190 305 1.0 930
20D471K 20D471KJ 300 385 470(423~517) 100 775 6500 4000 10000 7000 220 350 1.0 850
20D511K 20D511KJ 320 415 510(459~561) 100 845 6500 4000 10000 7000 220 360 1.0 780
20D561K 20D561KJ 350 460 560(504~616) 100 925 6500 4000 10000 7000 220 380 1.0 710
20D621K 20D621KJ 385 505 620(558~682) 100 1025 6500 4000 10000 7000 220 390 1.0 650
20D681K 20D681KJ 420 560 680(612~748) 100 1120 6500 4000 10000 7000 230 400 1.0 600
20D751K 20D751KJ 460 615 750(675~825) 100 1240 6500 4000 10000 7000 255 420 1.0 530
20D781K 20D781KJ 485 640 780(702~858) 100 1290 6500 4000 10000 7000 265 440 1.0 510
20D821K 20D821KJ 510 670 820(738~902) 100 1355 6500 4000 10000 7000 282 460 1.0 500
20D911K 20D911KJ 550 745 910(819~1001) 100 1500 6500 4000 10000 7000 310 510 1.0 440
20D102K 20D102KJ 625 825 1000(900~1100) 100 1650 6500 4000 10000 7000 342 565 1.0 400
20D112K 20D112KJ 680 895 1100(990~1210) 100 1814 6500 4000 10000 7000 383 620 1.0 460
20D122K 20D122KJ 750 990 1200(1080~1320) 100 1980 6500 4000 10000 7000 408 660 1.0 320
20D152K 20D152KJ 900 1200 1500(1350~1650) 100 2475 6500 4000 10000 7000 420 660 1.0 260
20D162K 20D162KJ 1000 1280 1600(1440~1760) 100 2640 6500 4000 10000 7000 606 660 1.0 320
20D182K 20D182KJ 1000 1465 1800(1620~1980) 100 2970 6500 4000 10000 7000 625 660 1.0 320



2.Photo show

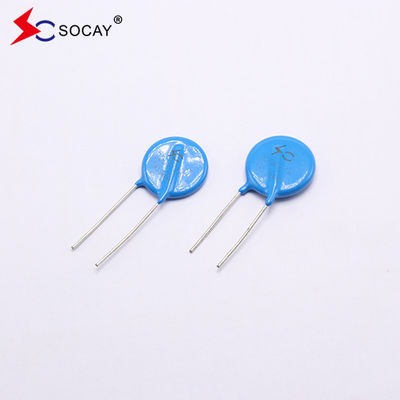

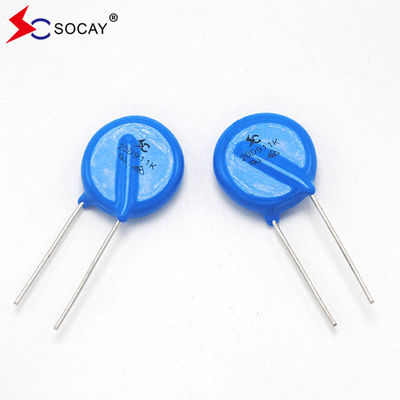

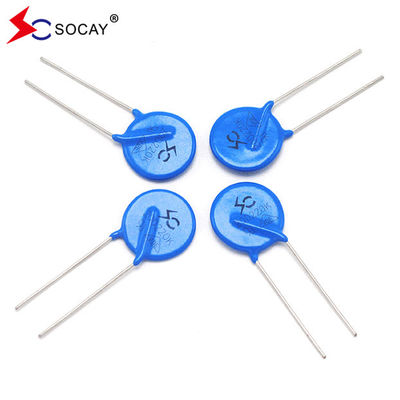

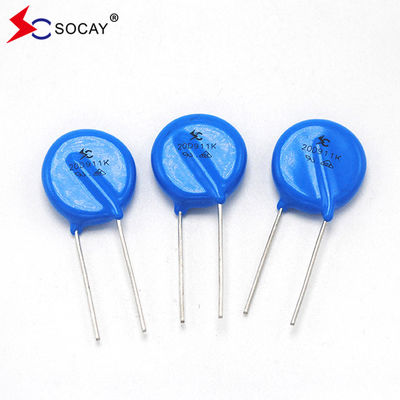

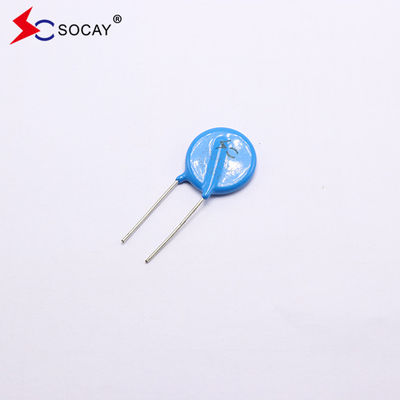

Ф20mm Metal Oxide Varistor 20D101K / 20D101KJ Wide Operating Voltage V1mA 18V - 1800V 0



Features:

u Wide operating voltage (V1mA) range from 18V to 1800V

u Fast responding to transient over-voltage

u Large absorbing transient energy capability

u Low clamping ratio and no following-on current

u Meets MSL level 1, per J-STD-020



Material No Radioactive Material
Operating Temperature -40℃ ~ +85℃
Storage Temperature -55℃ ~ +125℃
Body Nickel Plated
Leads Tin Plated
Devices with No lead Nickel Plated





Part Number Quantity Packaging Option Packaging Specification
20DXXXXX 250 Plastic Bag Bulk Pack

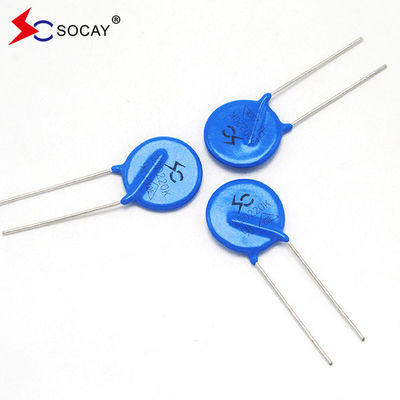

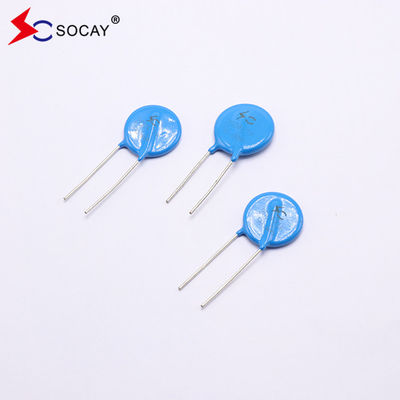

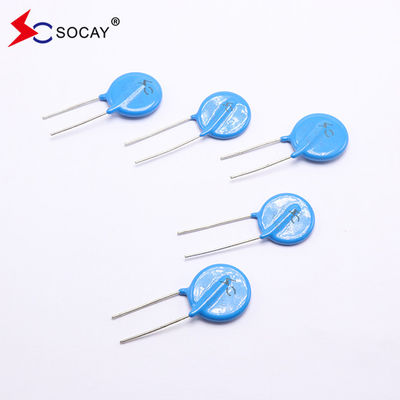

Ф20mm Metal Oxide Varistor 20D101K / 20D101KJ Wide Operating Voltage V1mA 18V - 1800V 1

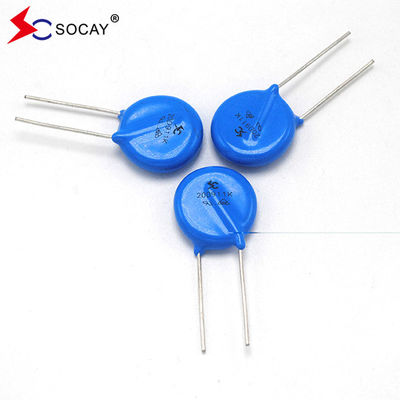

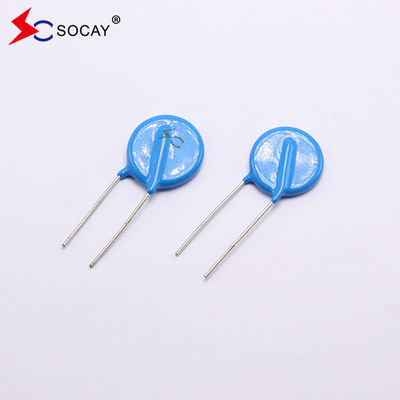

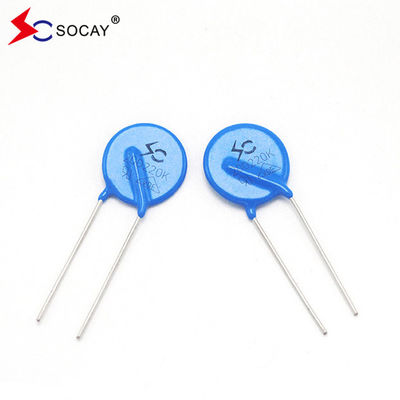

Ф20mm Metal Oxide Varistor 20D101K / 20D101KJ Wide Operating Voltage V1mA 18V - 1800V 2
