Name: 5D 7D 10D MOV Varistor Electrostatic Protector 271 471 511 561 Resistor
Brand: SOCAY
SKU: 7D561K
Rating: 4.5 (192 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Metal Oxide Varistor

Footprint: Ф7mm

VAC: 350V

VDC: 460V

Varistor Voltage: 560(504~616)V

IP: 10A

VC: 845V

Rated Power: 0.25W

Typ. Capacitance: 100pF

Highlight:

7D MOV Varistor

5D MOV Varistor

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: VDE ,UL,REACH,RoHS,ISO

Model Number: 7D561K

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: AMMO packing/bulk

Delivery Time: 5-8 work days

Gallery

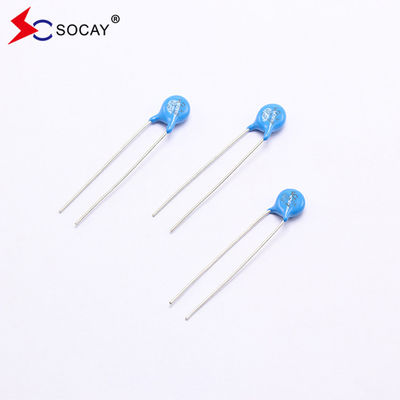

5D 7D 10D MOV Varistor Electrostatic Protector 271 471 511 561 Resistor

Product Description

MOV Varistor 5D/7D/10D Electrostatic Protector 271/471/511/561 Resistor

DATASHEET: 07D Series_v2306.1.pdf

Type Number		Maximum Allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current				Maximum Energy (10/1000μs)		Rated Power	Typical Capacitance (Reference)
Standard	High Surge	V_AC(V)	V_DC(V)	V1mA (V)	I_P(A)	V_C(V)	I(A) Standard		I(A) High Surge		(J) Standard	(J) High Surge	(W)	@1KHZ (pf)
Standard	High Surge	V_AC(V)	V_DC(V)	V1mA (V)	I_P(A)	V_C(V)	1 Time	2 Times	1 Time	2 Times	(J) Standard	(J) High Surge	(W)	@1KHZ (pf)
07D180K	07D180KJ	11	14	18(15~21.6)	2.5	36	250	125	500	250	0.9	2.0	0.02	2800
07D220K	07D220KJ	14	18	22(19.5~26)	2.5	43	250	125	500	250	1.1	2.4	0.02	2300
07D270K	07D270KJ	17	22	27(24~30)	2.5	53	250	125	500	250	1.4	3.0	0.02	1800
07D330K	07D330KJ	20	26	33(29.5~36.5)	2.5	66	250	125	500	250	1.7	3.5	0.02	1500
07D390K	07D390KJ	25	31	39(35~43)	2.5	77	250	125	500	250	2.1	4.0	0.02	1300
07D470K	07D470KJ	30	38	47(42~54)	2.5	93	250	125	500	250	2.5	5.0	0.02	1100
07D560K	07D560KJ	35	45	56(50~62)	2.5	110	250	125	500	250	3.1	6.0	0.02	900
07D680K	07D680KJ	40	56	68(61~75)	2.5	135	250	125	500	250	3.6	7.0	0.02	740
07D820K	07D820KJ	50	65	82(74~90)	10	135	1200	600	1750	1250	5.5	10.0	0.25	600
07D101K	07D101KJ	60	85	100(90~110)	10	165	1200	600	1750	1250	6.5	12.0	0.25	500
07D121K	07D121KJ	75	100	120(108~132)	10	200	1200	600	1750	1250	7.8	13.0	0.25	420
07D151K	07D151KJ	95	125	150(135~165)	10	250	1200	600	1750	1250	9.7	13.0	0.25	330
07D181K	07D181KJ	115	150	180(162~198)	10	300	1200	600	1750	1250	11.7	16.0	0.25	280
07D201K	07D201KJ	130	170	200(180~220)	10	340	1200	600	1750	1250	13.0	17.0	0.25	250
07D221K	07D221KJ	140	180	220(198~242)	10	360	1200	600	1750	1250	14.0	19.0	0.25	230
07D241K	07D241KJ	150	200	240(216~264)	10	395	1200	600	1750	1250	15.0	21.0	0.25	210
07D271K	07D271KJ	175	225	270(243~297)	10	455	1200	600	1750	1250	18.0	24.0	0.25	185
07D301K	07D301KJ	190	250	300(270~330)	10	500	1200	600	1750	1250	20.0	26.0	0.25	165
07D331K	07D331KJ	210	275	330(297~363)	10	550	1200	600	1750	1250	23.0	28.0	0.25	150
07D361K	07D361KJ	230	300	360(324~396)	10	595	1200	600	1750	1250	25.0	32.0	0.25	140
07D391K	07D391KJ	250	320	390(351~429)	10	650	1200	600	1750	1250	25.0	35.0	0.25	130
07D431K	07D431KJ	275	350	430(387~473	10	710	1200	600	1750	1250	28.0	40.0	0.25	115
07D471K	07D471KJ	300	385	470(423~517)	10	775	1200	600	1750	1250	30.0	42.0	0.25	105
07D511K	07D511KJ	320	415	510(459~561)	10	845	1200	600	1750	1250	30.0	45.0	0.25	100
07D561K	07D561KJ	350	460	560(504~616)	10	925	1200	600	1750	1250	30.0	49.0	0.25	90
07D621K	07D621KJ	385	505	620(558~682)	10	1025	1200	600	1750	1250	33.0	55.0	0.25	80
07D681K	07D681KJ	420	560	680(612~748)	10	1120	1200	600	1750	1250	33.0	60.0	0.25	75
07D751K	07D751KJ	460	615	750(675~825)	10	1240	1200	600	1750	1250	67.2	65.0	0.25	70
07D781K	07D781KJ	485	640	780(702~858)	10	1290	1200	600	1750	1250	67.2	65.0	0.25	70
07D821K	07D821KJ	510	670	820(738~902)	10	1355	1200	600	1750	1250	67.2	70.0	0.25	60

Remark: Voltage>33V, K is ±10%

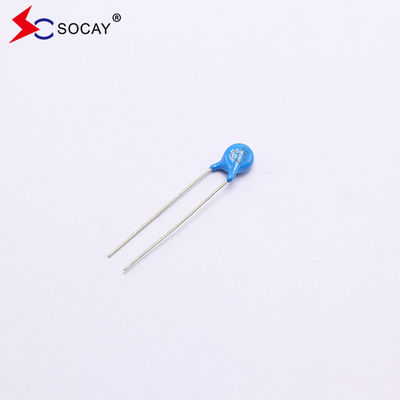

5D 7D 10D MOV Varistor Electrostatic Protector 271 471 511 561 Resistor 0

Description:

The 07D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 1.75KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.

Features:

u Wide operating voltage (V1mA) range from 18V to 820V

u Fast responding to transient over-voltage

u Large absorbing transient energy capability

u Low clamping ratio and no following-on current

u Meets MSL level 1, per J-STD-020

Applications:

u Transistor, diode, IC, thyristor or triac semiconductor protection

u Surge protection in consumer electronics

u Surge protection in industrial electronics

u Surge protection in electronic home appliances, gas and petroleum appliances

u Relay and electromagnetic valve surge absorption

Material	No Radioactive Material
Operating Temperature	-40℃ ~ +85℃
Storage Temperature	-55℃ ~ +125℃
Body	Nickel Plated
Leads	Tin Plated
Devices with No lead	Nickel Plated

5D 7D 10D MOV Varistor Electrostatic Protector 271 471 511 561 Resistor 1

5D 7D 10D MOV Varistor Electrostatic Protector 271 471 511 561 Resistor 2

5D 7D 10D MOV Varistor Electrostatic Protector 271 471 511 561 Resistor 3
