Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V

1000PCS
MOQ
Negotiable
Price
Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V
Features Gallery Product Description Request A Quote
Features
Specifications
Other Name: SMD Varistor
Dimensions: Ф7mm
VAC: 300V
VDC: 385V
Varistor Voltage: 470(423~517)V
IP: 10A
VC: 775V
Rated Power: 0.25W
Typ. Capacitance: 100pF
Mounting Type: THT
Highlight:

Metal Oxide Varistor 470V

,

Zinc Metal Oxide Varistor

,

7D471K Varistor Resistor
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: SOCAY
Certification: VDE ,UL,REACH,RoHS,ISO
Model Number: 7D471K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: AMMO packing/bulk
Delivery Time: 1-2weeks
Product Description

Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V



DATASHEET:  07D Series_v2306.1.pdf



Type Number Maximum Allowable voltage Varistor Voltage

Maximum

Clamping

Voltage

Withstanding

Surge

Current

Maximum

Energy

(10/1000μs)

Rated

Power

 Typical Capacitance (Reference)
Standard High Surge VAC (V) VDC (V)

V1mA

(V)

 IP (A) VC (V)

I(A)

Standard

I(A)

High Surge

(J)

Standard

(J)

High Surge

 (W) @1KHZ (pf)
1 Time 2 Times 1 Time 2 Times
07D180K 07D180KJ 11 14 18(15~21.6) 2.5 36 250 125 500 250 0.9 2.0 0.02 2800
07D220K 07D220KJ 14 18 22(19.5~26) 2.5 43 250 125 500 250 1.1 2.4 0.02 2300
07D270K 07D270KJ 17 22 27(24~30) 2.5 53 250 125 500 250 1.4 3.0 0.02 1800
07D330K 07D330KJ 20 26 33(29.5~36.5) 2.5 66 250 125 500 250 1.7 3.5 0.02 1500
07D390K 07D390KJ 25 31 39(35~43) 2.5 77 250 125 500 250 2.1 4.0 0.02 1300
07D470K 07D470KJ 30 38 47(42~54) 2.5 93 250 125 500 250 2.5 5.0 0.02 1100
07D560K 07D560KJ 35 45 56(50~62) 2.5 110 250 125 500 250 3.1 6.0 0.02 900
07D680K 07D680KJ 40 56 68(61~75) 2.5 135 250 125 500 250 3.6 7.0 0.02 740
07D820K 07D820KJ 50 65 82(74~90) 10 135 1200 600 1750 1250 5.5 10.0 0.25 600
07D101K 07D101KJ 60 85 100(90~110) 10 165 1200 600 1750 1250 6.5 12.0 0.25 500
07D121K 07D121KJ 75 100 120(108~132) 10 200 1200 600 1750 1250 7.8 13.0 0.25 420
07D151K 07D151KJ 95 125 150(135~165) 10 250 1200 600 1750 1250 9.7 13.0 0.25 330
07D181K 07D181KJ 115 150 180(162~198) 10 300 1200 600 1750 1250 11.7 16.0 0.25 280
07D201K 07D201KJ 130 170 200(180~220) 10 340 1200 600 1750 1250 13.0 17.0 0.25 250
07D221K 07D221KJ 140 180 220(198~242) 10 360 1200 600 1750 1250 14.0 19.0 0.25 230
07D241K 07D241KJ 150 200 240(216~264) 10 395 1200 600 1750 1250 15.0 21.0 0.25 210
07D271K 07D271KJ 175 225 270(243~297) 10 455 1200 600 1750 1250 18.0 24.0 0.25 185
07D301K 07D301KJ 190 250 300(270~330) 10 500 1200 600 1750 1250 20.0 26.0 0.25 165
07D331K 07D331KJ 210 275 330(297~363) 10 550 1200 600 1750 1250 23.0 28.0 0.25 150
07D361K 07D361KJ 230 300 360(324~396) 10 595 1200 600 1750 1250 25.0 32.0 0.25 140
07D391K 07D391KJ 250 320 390(351~429) 10 650 1200 600 1750 1250 25.0 35.0 0.25 130
07D431K 07D431KJ 275 350 430(387~473 10 710 1200 600 1750 1250 28.0 40.0 0.25 115
07D471K 07D471KJ 300 385 470(423~517) 10 775 1200 600 1750 1250 30.0 42.0 0.25 105
07D511K 07D511KJ 320 415 510(459~561) 10 845 1200 600 1750 1250 30.0 45.0 0.25 100
07D561K 07D561KJ 350 460 560(504~616) 10 925 1200 600 1750 1250 30.0 49.0 0.25 90
07D621K 07D621KJ 385 505 620(558~682) 10 1025 1200 600 1750 1250 33.0 55.0 0.25 80
07D681K 07D681KJ 420 560 680(612~748) 10 1120 1200 600 1750 1250 33.0 60.0 0.25 75
07D751K 07D751KJ 460 615 750(675~825) 10 1240 1200 600 1750 1250 67.2 65.0 0.25 70
07D781K 07D781KJ 485 640 780(702~858) 10 1290 1200 600 1750 1250 67.2 65.0 0.25 70
07D821K 07D821KJ 510 670 820(738~902) 10 1355 1200 600 1750 1250 67.2 70.0 0.25 60

Remark: Voltage>33V, K is ±10%

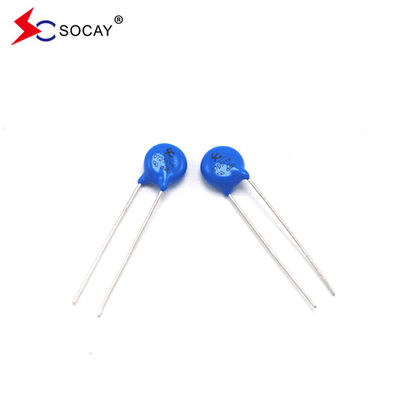

Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V 0











Description:

The 07D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 1.75KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.





Features:





Material No Radioactive Material
Operating Temperature -40℃ ~ +85℃
Storage Temperature -55℃ ~ +125℃
Body Nickel Plated
Leads Tin Plated
Devices with No lead Nickel Plated

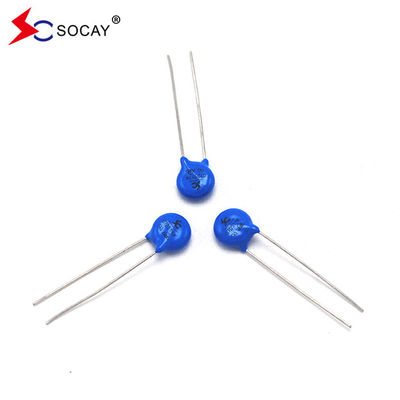

Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V 1

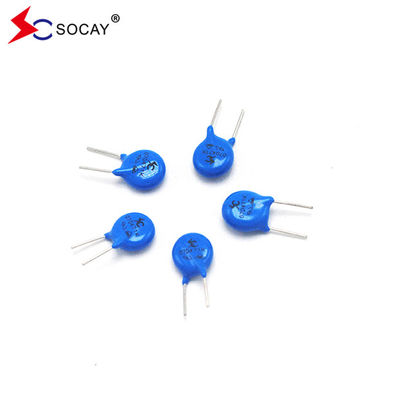

Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V 2

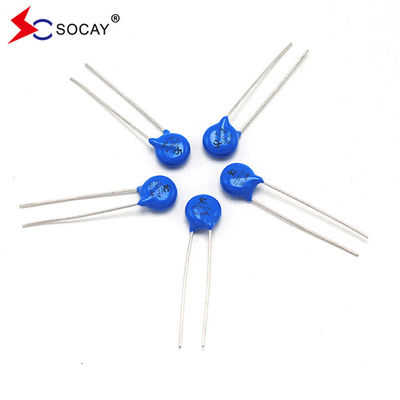

Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V 3




SOCAY's main products include a full range of Ceramic Gas Discharge Tubes (GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode, etc. From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry.





Passive component Characteristic
