Name: 10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561
Brand: SOCAY
SKU: 10D911K/0D911KJ
Rating: 5 (148 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Other Name: MOV

Size: Ф10mm

VAC: 350V

VDC: 460V

Varistor Voltage: 560(504~616)V

IP: 25A

VC: 925V

Rated Power: 0.4W

Typ. Capacitance: 180pF

Withstanding Surge Current: 2.5KA (1 Time)

Highlight:

10D561K Metal Oxide Varistor

560V Metal Oxide Varistor

VDR-10d561

Basic Infomation

Place of Origin: Shenzhen, Guangdong, China

Brand Name: SOCAY

Certification: UL,REACH,RoHS,ISO VDE

Model Number: 10D911K/0D911KJ

Document: Product Brochure PDF

Payment & Shipping Terms

Delivery Time: 2weeks

Gallery

10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561

Product Description

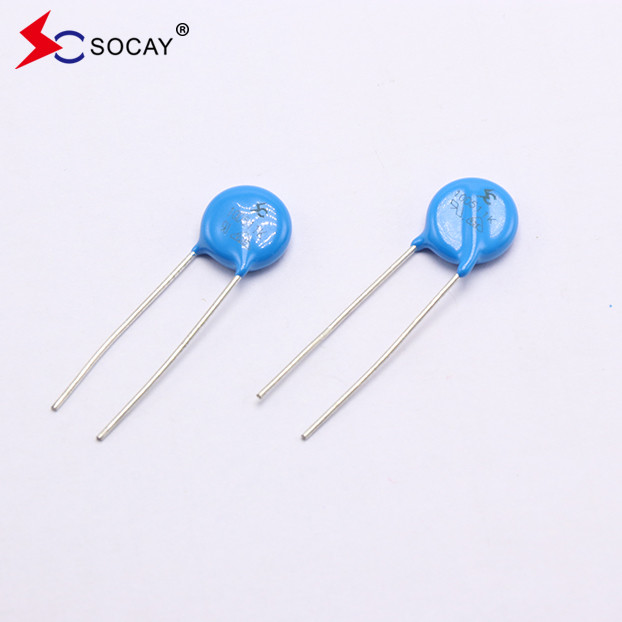

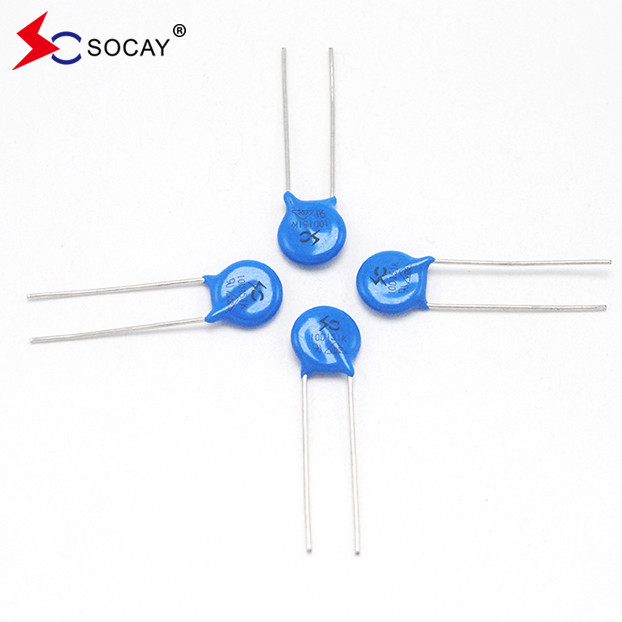

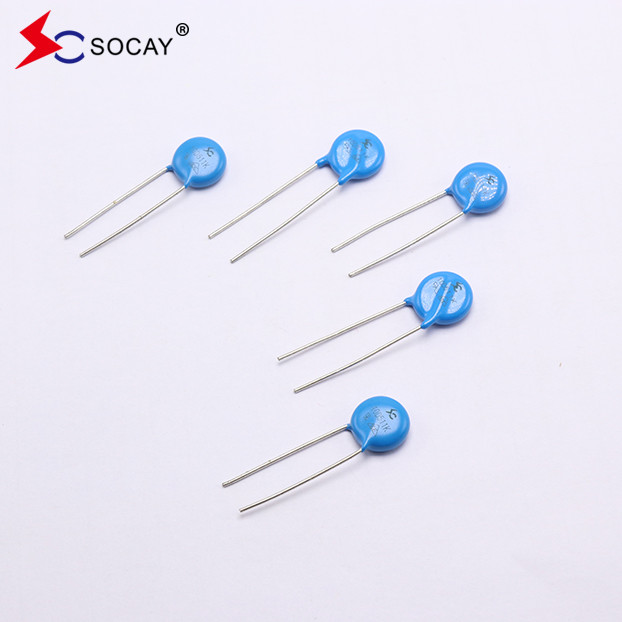

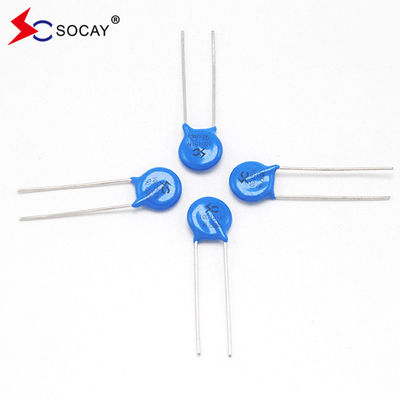

10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561

DATASHEET: 10D Series_v2306.1.pdf

Type Number		Maximum Allowable voltage		Varistor Voltage	Maximum Clamping Voltage		Withstanding Surge Current				Maximum Energy (10/1000μs)		Rated Power	Typical Capacitance (Reference)
Standard	High Surge	V_AC(V)	V_DC(V)	V1mA (V)	I_P(A)	V_C(V)	I(A) Standard		I(A) High Surge		(J) Standard	(J) High Surge	(W)	@1KHZ (pf)
							1 Time	2 Times	1 Time	2 Times
10D180K	10D180KJ	11	14	18(15~21.6)	5	36	500	250	2000	1000	2.1	3.0	0.05	5600
10D220K	10D220KJ	14	18	22(19.5~26)	5	43	500	250	2000	1000	2.5	5.0	0.05	4500
10D270K	10D270KJ	17	22	27(24~30)	5	53	500	250	2000	1000	3.0	6.0	0.05	3700
10D330K	10D330KJ	20	26	33(29.5~36.5)	5	66	500	250	2000	1000	4.0	7.0	0.05	3000
10D390K	10D390KJ	25	31	39(35~43)	5	77	500	250	2000	1000	4.6	9.0	0.05	2400
10D470K	10D470KJ	30	38	47(42~54)	5	93	500	250	2000	1000	5.5	11.0	0.05	2100
10D560K	10D560KJ	35	45	56(50~62)	5	100	500	250	2000	1000	7.0	13.0	0.05	1800
10D680K	10D680KJ	40	56	68(61~75)	5	135	500	250	2000	1000	8.2	15.0	0.05	1500
10D820K	10D820KJ	50	65	82(74~90)	25	135	2500	1250	3500	2500	12.0	17.0	0.4	1200
10D101K	10D101KJ	60	85	100(90~110)	25	165	2500	1250	3500	2500	15.0	18.0	0.4	1000
10D121K	10D121KJ	75	100	120(108~132)	25	200	2500	1250	3500	2500	18.0	21.0	0.4	830
10D151K	10D151KJ	95	125	150(135~165)	25	250	2500	1250	3500	2500	22.0	25.0	0.4	670
10D181K	10D181KJ	115	150	180(162~198)	25	300	2500	1250	3500	2500	27.0	30.0	0.4	560
10D201K	10D201KJ	130	170	200(185~225)	25	340	2500	1250	3500	2500	30.0	35.0	0.4	500
10D221K	10D221KJ	140	180	220(198~242)	25	360	2500	1250	3500	2500	32.0	39.0	0.4	450
10D241K	10D241KJ	150	200	240(216~264)	25	395	2500	1250	3500	2500	35.0	42.0	0.4	420
10D271K	10D271KJ	175	225	270(243~297)	25	455	2500	1250	3500	2500	40.0	49.0	0.4	370
10D301K	10D301KJ	190	250	300(270~330)	25	500	2500	1250	3500	2500	40.0	54.0	0.4	330
10D331K	10D331KJ	210	275	330(297~363)	25	550	2500	1250	3500	2500	40.0	58.0	0.4	300
10D361K	10D361KJ	230	300	360(324~396)	25	595	2500	1250	3500	2500	43.0	65.0	0.4	280
10D391K	10D391KJ	250	320	390(351~429)	25	650	2500	1250	3500	2500	47.0	70.0	0.4	260
10D431K	10D431KJ	275	350	430(387~473	25	710	2500	1250	3500	2500	60.0	80.0	0.4	230
10D471K	10D471KJ	300	385	470(423~517)	25	775	2500	1250	3500	2500	65.0	85.0	0.4	210
10D511K	10D511KJ	320	415	510(459~561)	25	845	2500	1250	3500	2500	70.0	90.0	0.4	200
10D561K	10D561KJ	350	460	560(504~616)	25	925	2500	1250	3500	2500	70.0	92.0	0.4	180
10D621K	10D621KJ	385	505	620(558~682)	25	1025	2500	1250	3500	2500	70.0	95.0	0.4	160
10D681K	10D681KJ	420	560	680(612~748)	25	1120	2500	1250	3500	2500	70.0	98.0	0.4	150
10D751K	10D751KJ	460	615	750(675~825)	25	1240	2500	1250	3500	2500	70.0	100.0	0.4	130
10D781K	10D781KJ	485	640	780(702~858)	25	1290	2500	1250	3500	2500	80.0	105.0	0.4	130
10D821K	10D821KJ	510	670	820(738~902)	25	1355	2500	1250	3500	2500	85.0	110.0	0.4	120
10D911K	10D911KJ	550	745	910(819~1001)	25	1500	2500	1250	3500	2500	93.0	130.0	0.4	110
10D102K	10D102KJ	625	825	1000(900~1100)	25	1650	2500	1250	3500	2500	102.0	140.0	0.4	100
10D112K	10D112KJ	680	895	1100(990~1210)	25	1814	2500	1250	3500	2500	115.0	155.0	0.4	90

10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561 0

Description:

The 10D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 3.5KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.

Features:

u Wide operating voltage (V1mA) range from 18V to 1100V

u Fast responding to transient over-voltage

u Large absorbing transient energy capability

u Low clamping ratio and no following-on current

u Meets MSL level 1, per J-STD-020

Applications:

Power protection, Switches, POS machines, Lightning arresters, Building intercoms, Monitoring systems,

Parking cards, Transmission systems, Instrumentation,Meters, Communication products, Control panels.

Material	No Radioactive Material
Operating Temperature	-40℃ ~ +85℃
Storage Temperature	-55℃ ~ +125℃
Body	Nickel Plated
Leads	Tin Plated
Devices with No lead	Nickel Plated

Part Number	Quantity	Packaging Option	Packaging Specification
10DXXXXX	500	Plastic bag	Bulk Pack

10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561 1

10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561 2

10D561K 560V Metal Oxide Varistor 10D 550V Electronic Components VDR-10d561 3

working principle:

When connected in parallel to a circuit and the device is not moving, the resistance value is high and can be considered as an open circuit with little or no effect on the circuit. When there is an abnormal pulse, the resistance value drops instantly and the current is released momentarily. When the abnormal high voltage disappears, it returns to its high resistance state and the circuit works normally.
